PLD-40-1750B
22.98

PLD-40-1750B

$22.98

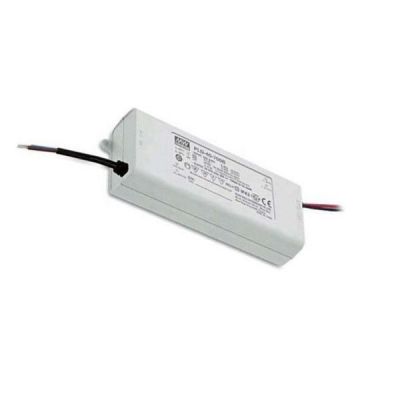

Meanwell 40W Single Output LED Power Supply with 1750mA13-23V±5.0%40.25W2.4Vp-p35V500ms/230VAC at full load

- +
Availability:In stock
SKU Meanwell PLD-40-1750B
Brand Meanwell
Details

Meanwell PLD-40-1750B is 40W Single Output LED Power Supply with 1750mA13-23V±5.0%40.25W2.4Vp-p35V500ms/230VAC at full load. The item stands out with 180~295VAC voltage input with 1750mA. Meanwhile, it is designed with single-stage PFC lines achieving high PF value in the most economical way, PF>0.9. As the high efficiency reaches up to 88%, the item is able to work at -30℃~50℃ under natural air cooling. Additionally, PLD-40-1750B complies with the requirements of EU EN61000-3-2 for harmonic current Class C. It is also provided with various protections such as Short circuit and Over temperature. Due to its longevity, high efficiency and low price, Meanwell PLD-40-1750B is ideally suitable for LED indoor lighting or decorative light source related applications

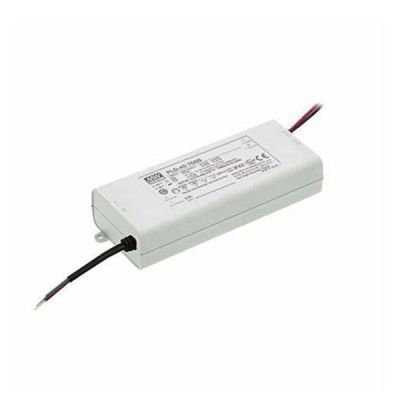

Meanwell PLD-40-1750B price and datasheet PLD-40-500B PLD-40-700B PLD-40-1050B PLD-40-1400B PLD-40-1750B 40W PFC YCICT

Meanwell PLD-40-1750B Specifications

Model PLD-40-1750B
OUTPUT RATED CURRENT 1750mA
OPERATING VOLTAGE RANGE 13-23V
CURRENT ACCURACY ±5.0%
RATED POWER 40.25W
RIPPLE & NOISE (max.) 2.4Vp-p
NO LOAD OUTPUT VOLTAGE (max.) 35V
SETUP TIME 500ms / 230VAC at full load
INPUT VOLTAGE RANGE 180~295VAC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF>0.9/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION  THD< 20% when output loading>=60%(PLD-40-350B loading>=65%)at 230VAC input and output loading>=75% at 277VAC input
EFFICIENCY (Typ.) 86.00%
AC CURRENT (Typ.) 0.35A/230VAC 0.3A/277VAC
INRUSH CURRENT(Typ.) COLD START 25A (twidth=60μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER 47 units (circuit breaker of type B) / 47 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT <0.5mA / 240VAC
PROTECTION OVER TEMPERATURE Shut down o/p voltage, auto-recovery
SHORT CIRCUIT Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT WORKING TEMP -30 ~ +50 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, BIS IS15885(for 350B,700B,1050B only), EAC TP TC 004, IP42 approved
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C ; BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level(Surge 2KV), criteria B, EAC TP TC 020
Others MTBF 4826.5K hrs min. Telcordia SR-332 (Bellcore) ; 865.2Khrs min. MIL-HDBK-217F (25)
DIMENSION 128*60*31.5mm (L*W*H)
PACKING 0.22Kg;30pcs/7.6Kg/0.58CUFT

Meanwell PLD-40-1750B Features

l  Low cost

l  IP42 design

l  High reliability

l  3 years warranty

l  Constant current design

l  Fully isolated plastic case

l  ClassⅡpower unit, no FG

l  Built-in active PFC function

l  100% full load burn-in test

l  Cooling by free air convection

l  Protections: Short circuit/Over temperature

l  Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)

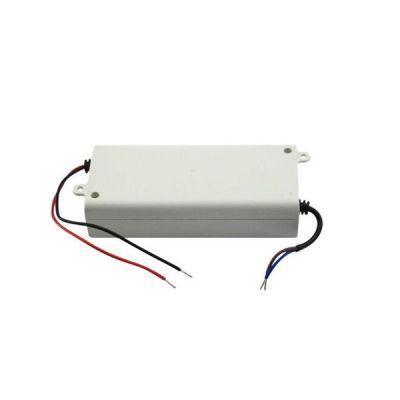

Meanwell PLD-40-1750B price and specs PLD-40-500B PLD-40-700B PLD-40-1050B PLD-40-1400B PLD-40-1750B 40W PFC YCICT

Meanwell PLD-40-1750B Mechanical Diagram

Meanwell PLD-40-1750B price and specs PLD-40-500B PLD-40-700B PLD-40-1050B PLD-40-1400B PLD-40-1750B 40W with PFC YCICT

Meanwell PLD-40-1750B price and specs PLD-40-500B PLD-40-700B PLD-40-1050B PLD-40-1400B PLD-40-1750B LED 40W PFC YCICT
