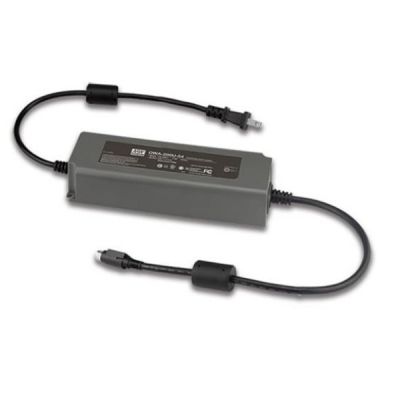

OWA-120E-20
38.62

OWA-120E-20

$38.62

Meanwell 120W Single Output Moistureproof Adaptor with 20V6A120W150mVp-p±4.0%±0.5%±1.0%

- +
Availability:In stock
SKU Meanwell OWA-120E-20
Brand Meanwell
Details

Meanwell OWA-120E-20 is a 120W Single Output Moistureproof Adaptor with 20V6A120W150mVp-p. The fully-potted silicone inside the plastic enclosure enhances the heat dissipation. Meanwhile, the power body achieves IP67 level, so that the model specializes the application in which the damp, humidity or dust resistance is needed for the external power supply. OWA-120E-20 follows the latest energy efficiency demand with no load power consumption less than 0.15W. The unit is certified with EN61 558-2-16. Additionally, the compliance to EN60335-1 for selected models could greatly simplify the system design such as household appliances. OWA-120E-20 adopts the input range from 180VAC to 264VAC, and incorporates built-in PFC function. Furthermore, the efficiency reaches high up to 90.5%, and cooled by free air convection. The working temperature also ranges from -40℃ to +70℃. In light of its long lifespan, high efficiency and excellent reliability, Meanwell OWA-120E-20 serves as an ideally suitable solution for various applications.

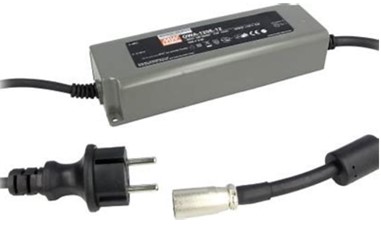

Meanwell OWA-120E-20 price and specs 120W Single Output Adaptor PFC 20v 6a OWA-120E-12 15 20 24 30 36 42 48 54 YCICT

Meanwell OWA-120E-20 Encoding

OWA Series Name
120 Output wattage
E European type of AC plug
20 Output Voltage

Meanwell OWA-120E-20 Specifications

ORDER NO. OWA-120E-20
OUTPUT DC VOLTAGE 20V
RATED CURRENT 6A
RATED POWER 120W
RIPPLE & NOISE (max.) 150mVp-p
VOLTAGE TOLERANCE ±4.0%
LINE REGULATION ±0.5%
LOAD REGULATION ±1.0%
SETUP, RISE TIME 500ms, 80ms at 95% load 230VAC
HOLD UP TIME (Typ.) 16ms at full load 230VAC
INPUT VOLTAGE RANGE 180 ~ 264VAC 254 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF>0.96/230VAC at full load
EFFICIENCY (Typ.) 90.00%
AC CURRENT (Typ.) 0.65A / 230VAC
INRUSH CURRENT (Typ.) COLD START 60A(twidth=520 s measured at 50% Ipeak) at 230VAC
LEAKAGE CURRENT <0.25mA / 240VAC
PROTECTION OVER CURRENT 105 ~ 115%
Protection type : Hiccup mode, recovers automatically after fault condition is removed
SHORT CIRCUIT Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 23-27V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP. -40 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS DEKRA EN61558-1,-2-16; DEKRA EN60335-1 (except for OWA-120E-48,54); EAC TP TC 004, IP67 (for power body) approved
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to EN55032 (CISPR32) Class B, EN55014-1, EN61000-3-2,-3;EAC TP TC 020
EMC IMMUNITY Compliance to EN61000-4-2,3,4,5,6,8,11, EN55014-2, EN55035, light industry level (surge L- N : 2KV), EAC TP TC 020
Others MTBF 2902.2K hrs min. Telcordia SR-332 (Bellcore) 294.4K hrs min. MIL-HDBK-217F (25)
DIMENSION 191*63*37.5mm
PACKING 1.15Kg; 12pcs/14.8Kg/0.89CUFT

Meanwell OWA-120E-20 Features

l  5 years warranty

l  Comply with EU ErP

l  Input range 180~264VAC

l  ClassⅡpower unit, no FG

l  Built-in active PFC function

l  High efficiency up to 90.5%

l  No load power consumption <0.1 5W

l  Energy efficiency Level VI

l  Fanless design, cooling by free air convection

l  Protections: Short circuit/Overload/Overvoltage/Overtemperature

l  Compliance to IEC/EN 61558-1,-2-16 and IEC/EN 60335-1 (except for OWA-120E-48,54) for household appliance

Meanwell OWA-120E-20 Applications

l  Robotic lawn mower

l  Household appliance

l  Battery charging

l  General electronic products in dusty or humid environment

Meanwell OWA-120E-20 price and specs 120W Single Output Adaptor 20v 6a OWA-120E-12 15 20 24 30 36 42 48 54 YCICT

Meanwell OWA-120E-20 Mechanical Diagram

Meanwell OWA-120E-20 price and datasheet 120W Single Output Adaptor 20v 6a OWA-120E-12 15 20 24 30 36 42 48 54 YCICT
