NPF-90-36
26.35

NPF-90-36

$26.35

Meanwell 90W Constant Voltage and Constant Current LED Driver with 36V21.6-36V2.5A90W200mVp-p±2.0%±0.5%±0.5%

- +
Availability:In stock
SKU Meanwell NPF-90-36
Brand Meanwell
Details

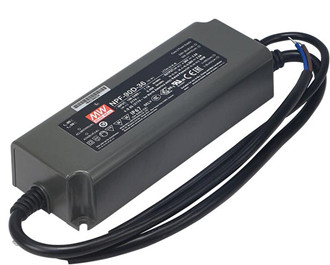

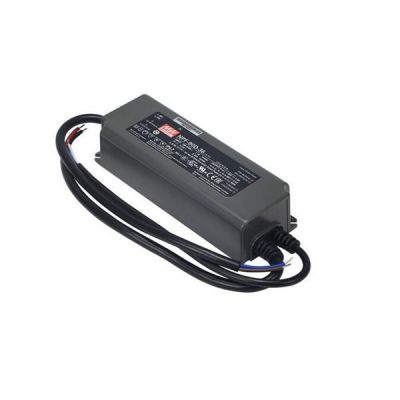

Meanwell NPF-90-36 is 90W AC/DC LED driver with 36V21.6-36V2.5A90W200mVp-p±2.0%±0.5%±0.5%. It stands out with the dual modes constant voltage and constant current output. At the same time, the item can work from 90~ 305VAC with rated voltage 36V. Since the efficiency reaches high up to 91% under fanless design and no-load loss of less than 0.15 watts, NPF-90-36 is able to operate for -40℃~ +85℃ case temperature through free air convection. Additionally, the unit is rated with IP 67 ingress protection level, and the interior is filled with thermally conductive silicone for enhanced heat dissipation, resistant to 5G vibration. As a result of its longevity, high efficiency, and excellent quality, Meanwell NPF-90-36 serves as an ideal solution to work for a variety of applications at dry, damp or wet locations.

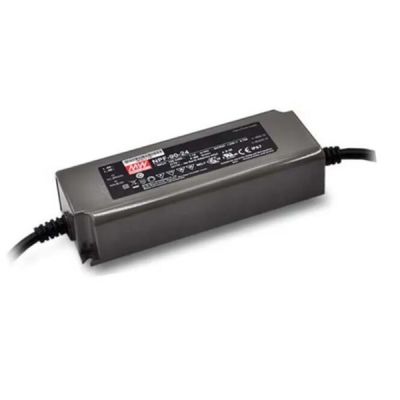

Meanwell NPF-90-36 Price and Datasheet Constant Voltage and Current LED Driver  NPF-90-12/15/20/24/30/36/42/48/54 YCICT

Meanwell NPF-90-36 Encoding

NPF Series Name
90 Rated Wattage
36 Rated output voltage (12V/15V/20/24V/30V/36V/42V/48V/54V)

Meanwell NPF-90-36 Specifications

Model NPF-90-36
OUTPUT DC VOLTAGE 36V
CONSTANT CURRENT REGION 21.6-36V
RATED CURRENT 2.5A
RATED POWER 90W
RIPPLE & NOISE (max.) 200mVp-p
VOLTAGE TOL ERANCE ±2.0%
LINE REGULATION ±0.5%
LOAD REGULATION ±0.5%
SETUP, RISE TIME 500ms, 80ms 115VAC / 230VAC
HOLD UP TIME (Typ.) 16ms/230VAC 16ms/115VAC
Input VOLTAGE RANGE 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR PF>=0.98/115VAC, PF>=0.96/230VAC, PF>=0.94/277VAC at full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION THD< 20%( at load>=60%/115VC,230VAC; at load>=75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.) 90.50%
AC CURRENT 0.95A / 115VAC 0.5A / 230VAC 0.4A / 277VAC
INRUSH CURRENT(Typ.) COLD START 60A(twidth=550μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
NO LOAD POWER CONSUMPTION <0.15W
LEAKAGE CURRENT <0.25mA / 277VAC
PROTECTION OVER CURRENT 95 ~ 108%
Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 41-46V
Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP. Tcase=-40 ~ +85 (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP. Tcase=+85
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS UL8750, CSA C22.2 No. 250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, GB19510.1,GB19510.14, EAC TP TC 004,IP67 approved; Design refer to BS EN/EN60335-1
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (at load>=60%) ; BS EN/EN61000-3-3; GB17743 and GB17625.1,EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Line 2KV); EAC TP TC 020
Others MTBF 2749.4K hrs min. Telcordia SR-332 (Bellcore) ; 292.8Khrs min. MIL-HDBK-217F (25)
DIMENSION 171*63*37.5mm (L*W*H)
PACKING 0.77Kg; 18pcs/14.9Kg/0.82CUFT

Meanwell NPF-90-36 Features

l  Plastic housing with ClassⅡdesign

l  Built-in active PFC function

l  Class 2 power unit (except NPF-90-12/15)

l  No load power consumption <0.1 5W

l  IP67 rating for indoor or outdoor installations

l  Typical lifetime> 50000 hours

l  5 years warranty

l  Constant Voltage + Constant Current mode output

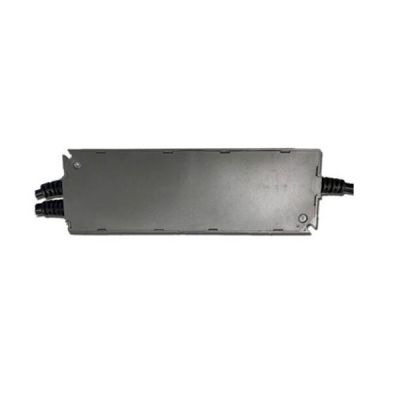

Meanwell NPF-90-36 Price and Specs Constant Voltage and Current LED Driver  NPF-90-12/15/20/24/30/36/42/48/54 90W YCICT

Meanwell NPF-90-36 Applications

l  LED panel lighting

l  LED downlight

l  LED decorative lighting

l  LED tunnel lighting

l  Moving sign

Meanwell NPF-90-36 Mechanical Diagram
