NPF-60-20
20.97

NPF-60-20

$20.97

Meanwell 60W Constant Voltage and Constant Current LED Driver with 20V12-20V3A60W150mVp-p±4.0%±0.5%±1.0%

- +
Availability:In stock
SKU Meanwell NPF-60-20
Brand Meanwell
Details

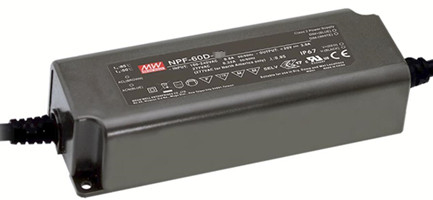

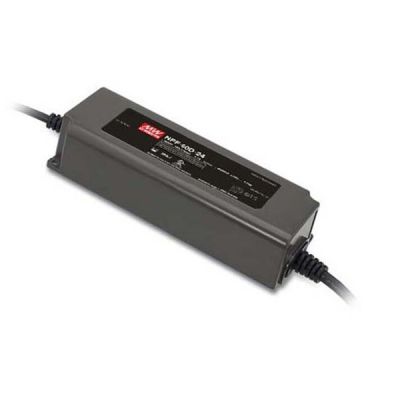

Meanwell NPF-60-20 is 60W AC/DC LED driver with 20V12-20V3A60W150mVp-p±4.0%±0.5%±1.0%. The item accepts the dual modes constant voltage and constant current output, and can work from 90~305VAC. It is equipped with rated voltage 20V. As the efficiency reaches high up to 90% under fanless design, NPF-60-20 is able to operate for -40℃~ +85℃ case temperature under free air convection. What’s more, the product is rated with IP67 ingress protection level. Because of its longevity, high efficiency, and excellent quality, Meanwell NPF-60-20 serves as an ideal solution  to work for a variety of applications at dry, damp or wet locations.

Meanwell NPF-60-20 Price and Specs Constant Current and Voltage 60W LED Driver NPF-60-12/15/20/24/30/36/42/48/54 YCICT

Meanwell NPF-60-20 Encoding

NPF Series Name
60 Rated Wattage
20 Rated output voltage (12V/15V/20/24V/30V/36V/42V/48V/54V)

Meanwell NPF-60-20 Specifications

Model NPF-60-20
OUTPUT DC VOLTAGE 20V
CONSTANT CURRENT REGION 12-20V
RATED CURRENT 3A
RATED POWER 60W
RIPPLE & NOISE (max.) 150mVp-p
VOLTAGE TOL ERANCE ±4.0%
LINE REGULATION ±0.5%
LOAD REGULATION ±1.0%
SETUP, RISE TIME 500ms, 80ms 115VAC / 230VAC
HOLD UP TIME (Typ.) 16ms/230VAC 16ms/115VAC
Input VOLTAGE RANGE 90~305VAC 127~431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR PF>=0.97/115VAC, PF>=0.95/230VAC, PF>=0.92/277VAC at full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION THD< 20%( at load>=60%/115VC,230VAC; at load>=75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.) 88.00%
AC CURRENT 0.8A / 115VAC 0.4A / 230VAC 0.32A/277VAC
INRUSH CURRENT(Typ.) COLD START 50A(twidth=270μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER 8 units (circuit breaker of type B) / 16 units (circuit breaker of type C) at 230VAC
NO LOAD POWER CONSUMPTION <0.25mA / 277VAC
LEAKAGE CURRENT <0.15W
PROTECTION OVER CURRENT 95 ~ 108%
Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 23-27V
Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP. Tcase=-40 ~ +85 (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP. Tcase=+85
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS UL8750(type”HL”), UL879(for 12V,24V only), CSA C22.2 No. 250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, EAC TP TC 004, GB19510.1,GB19510.14, IP67 approved; Design refer to BS EN/EN60335-1
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C ( at load>=60%) ; BS EN/EN61000-3-3;GB17743 and GB17625.1, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Line 2KV); EAC TP TC 020
Others MTBF 3082.1K hrs min. Telcordia SR-332 (Bellcore) ; 287.9Khrs min. MIL-HDBK-217F (25)
DIMENSION 150*53*35mm (L*W*H)
PACKING 0.49Kg;30pcs/15.7Kg/1.0CUFT

Meanwell NPF-60-20 Features

l  5 years warranty

l  Class 2 power unit

l  Plastic housing with ClassⅡdesign

l  Built-in active PFC function

l  No load power consumption <0.15W

l  IP67 rating for indoor or outdoor installations

l  Typical lifetime> 50000 hours

l  Constant Voltage + Constant Current mode output

Meanwell NPF-60-20 Price and Specs Constant Current and Voltage LED Driver NPF-60-12/15/20/24/30/36/42/48/54 YCICT

Meanwell NPF-60-20 Applications

l  LED panel lighting

l  LED downlight

l  LED decorative lighting

l  LED tunnel lighting

l  Moving sign

l  Type “HL" for use in Class I, Division 2 hazardous (Classified) location

Meanwell NPF-60-20 Mechanical Diagram

Meanwell NPF-60-20 Price and Specs Constant Current and Voltage 40W LED Driver NPF-60-12/15/20/24/30/36/42/48/54 YCICT

Meanwell NPF-60-20 Price and Datasheet Constant Current and Voltage LED Driver NPF-60-12/15/20/24/30/36/42/48/54 YCICT
