NPF-40D-36
21.81

NPF-40D-36

$21.81

Meanwell 40W Single Output LED Driver with 1.12A40.32W21.6-36V±5.0%500ms/115VAC, 230VAC

- +
Availability:In stock
SKU Meanwell NPF-40D-36
Brand Meanwell
Details

Meanwell NPF-40D-36 is 40W AC/DC LED driver with 1.12A40.32W21.6-36V±5.0%500ms/115VAC, 230VAC. The model provides the constant current mode output and built-in PFC function. The housing is 94V-0 flame-retardant plastic box, resistant to 5G vibration, and the interior filled with thermally conductive silicone for enhanced heat dissipation. At the same time, the item can work from 90~305VAC with rated voltage 36V. Since the efficiency reaches high up to 90% under fanless design, NPF-40D-36 is able to operate for -40℃~+ 85℃ case temperature through free air convection. Apart from them, it is rated with IP67 ingress protection level with the 3 in 1 dimming. Because of its long lifetime, high efficiency, and excellent quality, Meanwell NPF-40D-36 serves as an ideal solution to provide the design flexibility for LED lighting system.

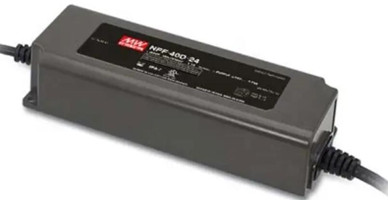

Meanwell NPF-40D-36 Price and Specs Single Output AC/DC LED Driver NPF-40D-12/15/20/24/30/36/42/48/54 PFC IP67 40W YCICT

Meanwell NPF-40D-36 Encoding

NPF Series Name
40 Rated Wattage
D Built-in 3 in 1 dimming function
36 Output Voltage (12/15/20/24/30/36/42/48/54V)

Meanwell NPF-40D-36 Specifications

Model NPF-40D-36
OUTPUT RATED CURRENT 1.12A
RATED POWER 40.32W
CONSTANT CURRENT REGION 21.6-36V
CURRENT RIPPLE 5.0% max. @rated current
CURRENT TOLERANCE ±5.0%
SET UP TIME 500ms/115VAC, 230VAC
Input VOLTAGE RANGE 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR PF>=0.97/115VAC, PF>=0.95/230VAC, PF>=0.92/277VAC at full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION THD< 20%( at load>=60%/115VC, 230VAC;  at load>=75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.) 90.00%
AC CURRENT 0.6A / 115VAC 0.3A / 230VAC 0.25A / 277VAC
INRUSH CURRENT(Typ.) COLD START 50A(twidth=270μ s measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER 9 units (circuit breaker of type B) / 16 units (circuit breaker of type C) at 230VAC
NO LOAD POWER CONSUMPTION <0.15W
LEAKAGE CURRENT <0.25mA / 277VAC
PROTECTION OVER CURRENT 95 ~ 108%
Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 41-46V
Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP. Tcase=-40 ~ +85 (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP. Tcase=+85
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS UL8750(type”HL”), UL879(for 12V,24V only), CSA C22.2 No. 250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independent, EAC TP TC 004, GB19510.1,GB19510.14,IP67 approved ; Design refer to BS EN/EN60335-1
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (at load>=60%) ; BS EN/EN61000-3-3; GB17743 and GB17625.1,EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity Line-Line 2KV);EAC TP TC 020
Others MTBF 3084.3K hrs min. Telcordia SR-332 (Bellcore) ; 288.2K hrs min. MIL-HDBK-217F (25)
DIMENSION 150*53*35mm (L*W*H)
PACKING 0.49Kg;30pcs/15.7Kg/1.0CUFT

Meanwell NPF-40D-36 Features

l  Plastic housing with classⅡdesign

l  Built-in active PFC function

l  Class 2 power unit

l  5 years warranty

l  Standby power consumption <0.5W

l  IP67 rating for indoor or outdoor installations

l  Function: 3 in 1 dimming (dim-to-off)

l  Typical lifetime > 50000 hours

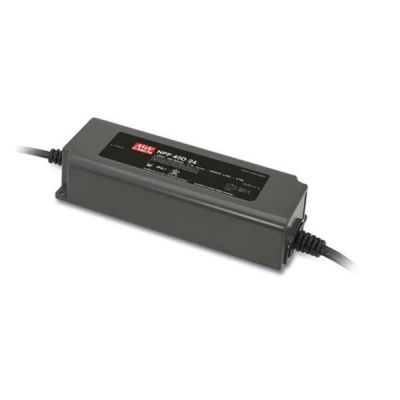

Meanwell NPF-40D-36 Price and Specs Single Output 40W AC/DC LED Driver NPF-40D-12/15/20/24/30/36/42/48/54 IP67 YCICT

Meanwell NPF-40D-36 Applications

l  LED panel lighting

l  LED downlight

l  LED decorative lighting

l  LED tunnel lighting

l  Moving sign

l  Type "HL" for use in Class l, Division 2 hazardous (Classified) location

Meanwell NPF-40D-36 Mechanical Diagram

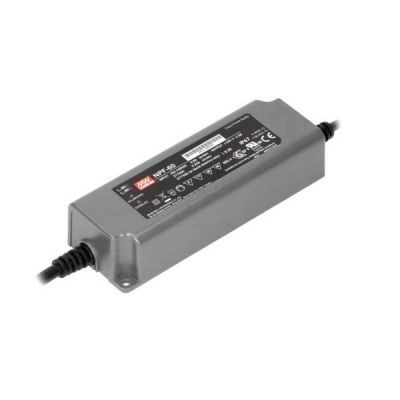

Meanwell NPF-40D-36 Price and Specs Single Output AC/DC LED Driver NPF-40D-12/15/20/24/30/36/42/48/54 IP67 40W YCICT

Meanwell NPF-40D-36 Price and Specs Single Output AC/DC LED Driver NPF-40D-12/15/20/24/30/36/42/48/54 PFC and 40W YCICT
