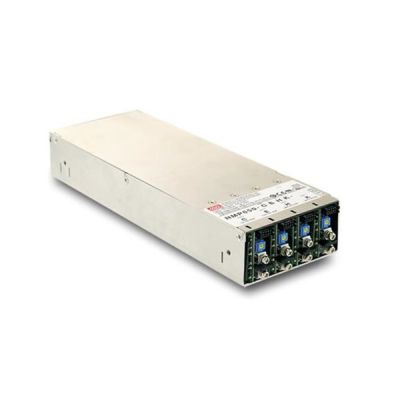

Meanwell 1200W1U low profile modular and configurable type power supply

- +
Availability:In stock
SKU Meanwell NMP1200
Brand Meanwell
Details

Meanwell NMP 1200 is a highly modular and configurable power supply with 57.6V55.2V55A6.7A/230VAC 13.5A/115VAC40A/230VAC 25A/115VAC. The product is designed 1U low profile which is very suitable for system equipment with limited space. There are two power wattage for the line-up  650W and 1200W. A single power module can deliver output up to 240 watts and has the most critical output adjustment functions: programmable voltage (PV) and programmable constant current point (PC). Additionally, the four output modules of 5, 12, 24 and 48 volts operate in series or in parallel, covering the mainstream operating voltages of many industrial applications. Moreover, NMP 1200 has passed the double safety certification of medical (60601-1) and information communication/industrial (62368-1), and also meets the requirements of medical device insulation standards (the insulation distance between the primary side and the secondary side reaches 2x MOPP). Due to its high reliability, excellent quality, and longevity, Meanwell NMP1200 serves as a flexible power supply solutions such as medical equipment, diagnostic or biological facilities and laser equipment and so o

Meanwell NMP1200 Specifications Meanwell NMP1200 price and specs ycict

Meanwell NMP1200 Specifications

Model NMP1200 ( 6 Slot)
Input VOLTAGE RANGE 57.6V
FREQUENCY RANGE 55.2V
POWER FACTOR 55A
EFFICIENCY(Typ.) 90.5%, full case load with H / K module at nominal 24V / 48V only
88.5%, full case load with each type of module at nominal voltage
AC CURRENT 6.7A/230VAC 13.5A/115VAC
INRUSH CURRENT 40A/230VAC 25A/115VAC
LEAKAGE CURRENT Earth leakage current <400uA / 264VAC, Touch current <100uA/264VAC
Output TOTAL OUTPUT POWER 650W max. 1200W max
PROTECTION OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes down
FUNCTION REMOTE CONTROL RC+/RC-: Short, Power ON RC+/RC-: Open, Power OFF

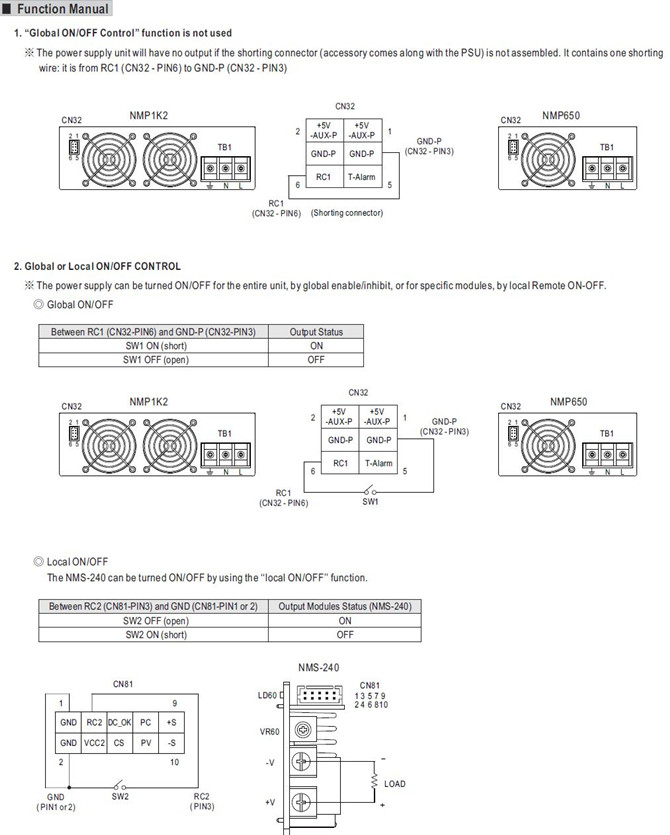

ALARM SIGNAL TTL signal output for over temperature alarm. Please refer to the Function Manual.
AUXILIARY POWER(AUX) 5V @ 2A; tolerance ±10%; ripple: 50mVp-p(max.)
ENVIRONMENT WORKING TEMP -30 ~ +70(Derate at 50, refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03%/(0 ~ 50)
VIBRATION 10~500Hz, 2G 10min./1 cycle, 60 min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS ANSI/AAMI ES60601-1, Ed. 3.1,UL62368-1; TUV BS EN/EN60601-1, Ed. 3.1, TUV BS EN/EN62368-1; IEC 60601-1, Ed. 3.1, IEC 62368-1, IEC60950-1; EAC TP TC 004 approved
ISOLATION LEVEL Primary-Secondary: 2x MOPP, Primary-Earth: 1x MOPP
WITHSTAND VOLTAGE I/P-O/P: 4KVAC I/P-FG: 2KVAC O/P-FG: 0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Parameter Standard Test Level
Conducted BS EN/EN55032 (CISPR32) / BS EN/EN55011 (CISPR11) Class B
Radiated BS EN/EN55032 (CISPR32) / BS EN/EN55011 (CISPR11) Class A
Harmonic Current BS EN/EN61000-3-2 -----
Voltage Flicker BS EN/EN61000-3-3 -----
EMC IMMUNITY BS EN/EN60601-1-2, BS EN/EN55024, SEMI F47
Parameter Standard Test Level
ESD BS EN/EN61000-4-2 Level 4, 15KV air; Level 4, 8KV contact
Radiated BS EN/EN61000-4-3 Level 3, 10V/m
EFT / Burst BS EN/EN61000-4-4 Level 3, 2KV
Surge BS EN/EN61000-4-5 Level 4, 4KV/Line-FG; 2KV/Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 3V
Magnetic Field BS EN/EN61000-4-8 Level 4, 30A/m
Voltage Dips and Interruptions BS EN/EN61000-4-11 100% dip 1 periods, 30% dip 25 periods,
100% interruptions 250 periods
Others MTBF 1314.6K hrs min. Telcordia SR-332 (Bellcore) ; 128.2K hrs min. MIL-HDBK-217F (25) (NMP650)
1275.4K hrs min. Telcordia SR-332 (Bellcore) ; 124.5K hrs min. MIL-HDBK-217F (25
) (NMP1K2)
DIMENSION 250*127*41mm (L*W*H)
PACKING 2Kg (typ.); 6pcs / 13Kg / 0.88CUFT

Meanwell NMP1200 Features

l  1U low profile

l  5 years warranty

l  Universal AC input/Full range

l  Medical (2x MOPP) ITE safety approvals

l  Output voltage and current programmable

l  Cooling by thermostatically controlled fan with fan alarm function

l  Suitable for BF application with appropriate system consideration (Touch current < 100uA/264V AC)

l  Protections: Short circuit /Overload/Over voltage/Over temperature for all output modules

l  Built-in parallel function/output programmable/global enable/remote local ON-OFF/auxiliary DC output/over temperature alarm/DC OK

Meanwell NMP-1200 Features Meanwell NMP-1200 price and specs ac dc configuable ycict

Meanwell NMP1200 Applications

l  Laser equipment

l  Medical equipment

l  Diagnostic or biological facilities

l  MRI, CT and PET scanners

l  Test or measurement systems

l  Telecommunication equipment

l  Factory automation and aging equipment

Meanwell NMP-1200 Applications Meanwell NMP-1200 price and specs good price meanwell nmp ycict

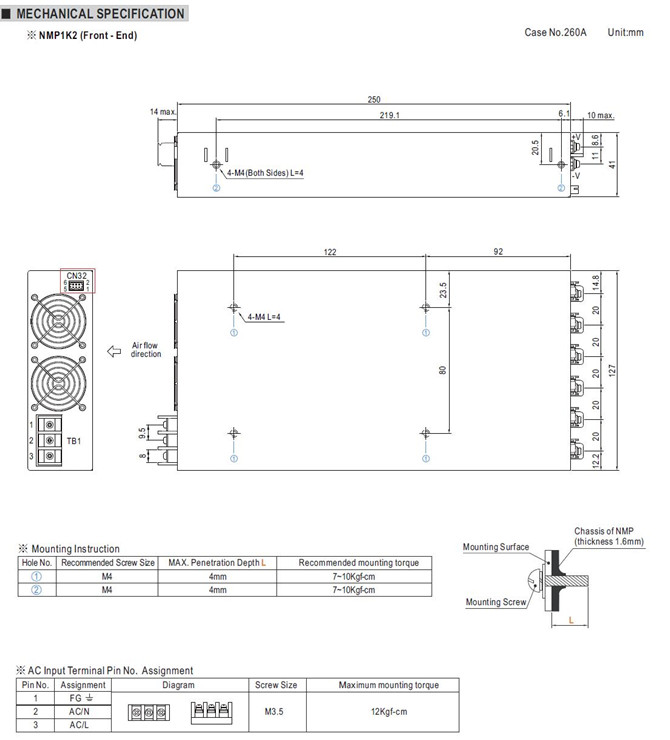

Meanwell NMP1200 Mechanical Diagram

Meanwell NMP-1200 Mechanical Diagram Meanwell NMP-1200 price and specs 1u profile ycict

Meanwell NMP-1200 Mechanical Diagram meanwell NMP-1200 price and specs 1u profile new ycict
