MU709s-2 LGA
26.19
Details

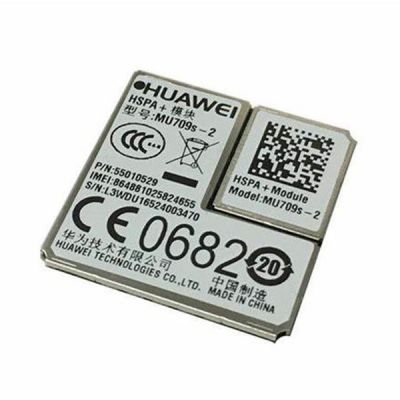

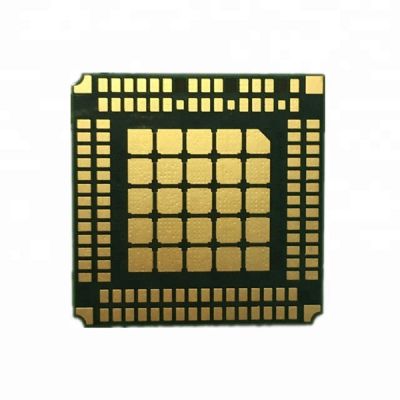

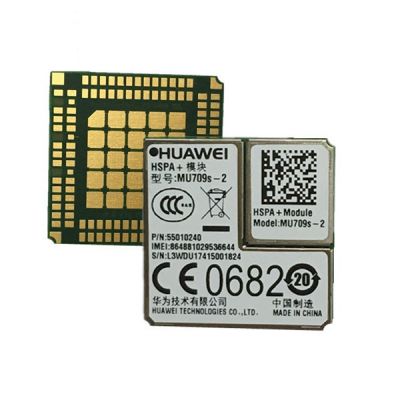

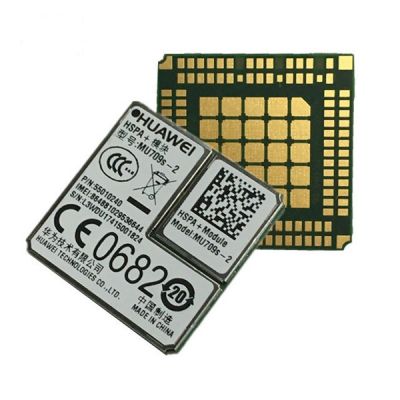

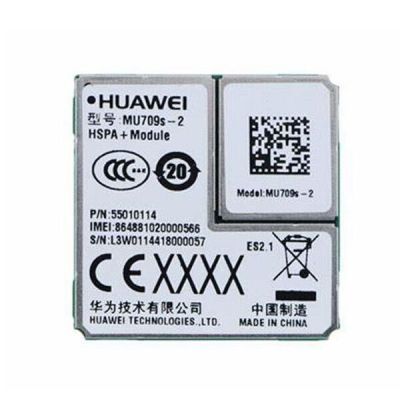

Huawei MU709s-2 LGA is high-quality designed 3G UMTS/HSPA+ module, especially for industrial-grade M2M applications such as telematics, monitoring, mobile payments, industrial routers, security monitoring and industrial PDA.
Huawei MU709 supports data rates of up to 21.6Mbps, with support for data and voice services within global networks GSM / GPRS / EDGE / WCDMA / HSDPA / HSUPA / HSPA .
it is easy to migrate from MU509 family MC509 MU609 and MU709 on and on LTE module ME909.
There are two variants, to meet different markets
MU709s-2 (UMTS / HSPA + 900 / 2100MHz) for the European and Chinese market.
MU709s-6 (UMTS / HSPA 850/1900/2100 MHz +), Asia Pacific, Latin American market.
| Brand | Huawei |
| Model | MU709S-2 |
| Form Factor | LGA |
| Bands | HSPA+/UMTS dual-band 900/2100 MHz |
| GSM/GPRS quad-band 850/900/1800/1900 MHz | |
| Data Transfer Rate | Downlink:21.6 Mbps, Uplink: 5.76 Mbps |
| Interface | 2 Antenna connectors PCIe interface |
| USB 2.0 High speed PCM Voice | |
| SIM Interface (1.8V/3.0V) Power supply | |
| Reset | |
| dimension | Height 30.4mm |
| Width 51mm | |
| Depth 3.4mm | |
| Weight approx.12g | |
| Power Supply | 3.0 V to 3.6 V (typical: 3.3 V) |
| Voice | PCM Voice |
| Temp Range | -40℃ to 85℃ |
| Special Features | FOTA |
| Firmware update via USB | |
| STK | |
| Jamming Detection | |
| Netscan | |
| CMUX | |
| SSL | |
| eCall | |
| Operating System | Linux, Android |
| Certificate | CE |
| CCC | |
| GCF | |
| NCC | |
| RoHS | |
| WEEE |
