MPM-65-24
38.13

MPM-65-24

$38.13

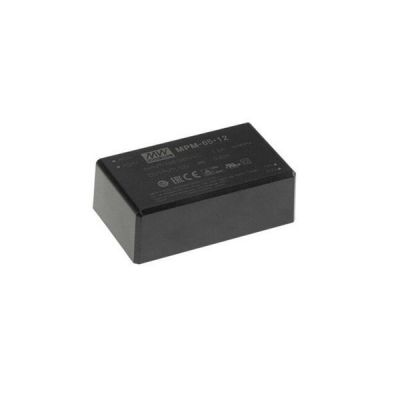

Meanwell 65W AC-DC High Reliable PCB-Mount Green Medical Power Module with 24V2.98A2.71A71.5W65W200mVp-p±2.0%±0.5%±0.5%

- +
Availability:In stock
SKU Meanwell MPM-65-24
Brand Meanwell
Details

Meanwell MPM-65-24 is a 65W AC/DC PCB-mount type medical grade power supply with 24V2.98A2.71A71.5W65W200mVp-p. At the same time, It is designed in high density and small size (87x52x29.5mm), and also featured with the operation for 80~ 264V AC, low no load power consumption and high efficiency. Moreover, MPM-65-24  is equipped with Class II (no FG) double insulation, outstanding dissipation, 2~ 5G anti-vibration by model, high EMC performance, 4KV AC isolation, etc. so it is able to meet IEC/BS EN/EN60601-1 and ANSI/AAMI ES60601-1version three with 2 x MOPP level. Additionally, the item offers various protection functions such as Short circuit, Overload and Over voltage. As a result of its longevity, high reliability, excellent quality, Meanwell MPM-65-24 is a very suitable solution for BF (patient contact) type medical device or relevant equipment.

Meanwell MPM-65-24 Mechanical Diagram

Meanwell MPM-65-24 Encoding

MPM Series Name
65 Rated Wattage
24 Output Voltage
ST Blank: PCB mounting Style
ST: Screw Terminal Style

Meanwell MPM-65-24 Specifications

Model MPM-65-24
OUTPUT DC VOLTAGE 24V
CURRENT Peak (10Sec.) 2.98A
Convection 2.71A
RATED POWER Peak (10Sec.) 71.5W
Convection 65W
RIPPLE & NOISE (max.) 200mVp-p
VOLTAGE TOL ERANCE  ±2.0%
LINE REGULATION ±0.5%
LOAD REGUL .ATION ±0.5%
SETUP, RISE TIME 1000ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.) 50ms/230VAC 12ms/115VAC at full load
INPUT VOLTAGE RANGE 80 ~ 264VAC 113 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 93.00%
AC CURRENT (Typ.) 1.5A/115VAC 1A/230VAC
INRUSH CURRENT(Typ.) COLD START 30A/115VAC 65A/230VAC
LEAKAGE CURRENT Touch current <100μ A/264VAC
PROTECTION OVERL OAD 115% ~ 135% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 25.2-32.4V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP. -30 ~ +80(Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
STORAGE TEMP. -40 ~ +85
TEMP. COEFFICIENT ±0.03%/(0 ~ 60)
SOLDERING TEMPERATURE 260±5/10sec.max
VIBRATION Blank:10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
ST:10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
OPERATING ALTITUDE 4000 meters / OVC
SAFETY & EMC SAFETY STANDARDS IEC60601-1, BS EN/EN60601-1, EAC TP TC 004, UL ANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22 3rd Edition approved; Design refer to BS EN/EN60335-1(by request)
ISOLATION LEVEL Primary-Secondary: 2xMOPP
WITHSTAND VOLTAGE I/P-O/P:4KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC IMMUNITY BS EN/EN60601-1-2
OTHERS MTBF 5087.8K hrs min. Telcordia SR-332 (Bellcore) ; 563.4K hrs min. MIL-HDBK-217F (25)
DIMENSION PCB mounting style : 87*52*29.5mm (L*W*H) Screw terminal style : 109*52*33.5mm (L*W*H)
PACKING PCB mounting style : 0.191Kg;60pcs/12.5Kg/0.94CUFT Screw terminal style :0.216Kg;50pcs/11.8Kg/0.56CUFT

Meanwell MPM-65-24 Features

l  3 years warranty

l  Isolation Class Ⅱ

l  71 W peak (10 sec.)

l  3.43"x2.05" compact size

l  No minimum load required

l  No load power consumption<0.1W

l  Extremely low leakage current

l  Wide operating temp. range -30 ~ +80℃

l  EMI Class B without additional components

l  Protections: Short circuit/Overload/Over voltage

l  Operating altitude up to 4000 meters

l  PCB chassis or screw terminal mounting version

l  Suitable for BF application with appropriate system consideration

l  Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1

Meanwell MPM-65-24 Features

Meanwell MPM-65-24 Applications

l  Portable medical device

l  Mobile clinical workstation

l  Medical computer monitor

l  Medical examination instrument

Meanwell MPM-65-24 Applications

Meanwell MPM-65-24 Mechanical Diagram

Meanwell MPM-65-24 Mechanical DiagramMeanwell MPM-65-24 Mechanical Diagram
