MFM-20-5
12.25
Details

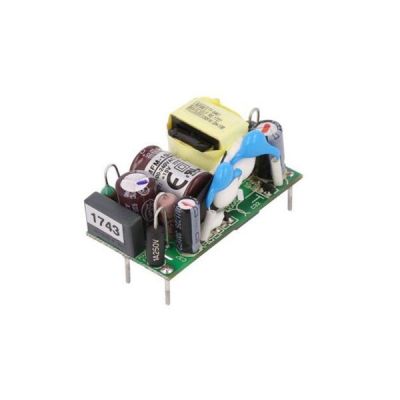

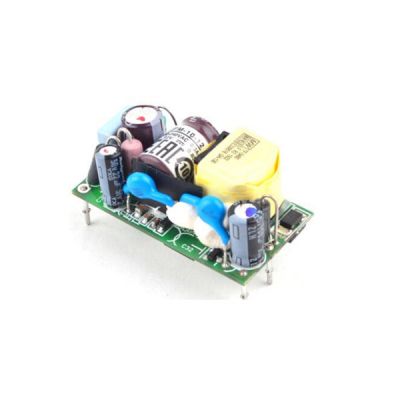

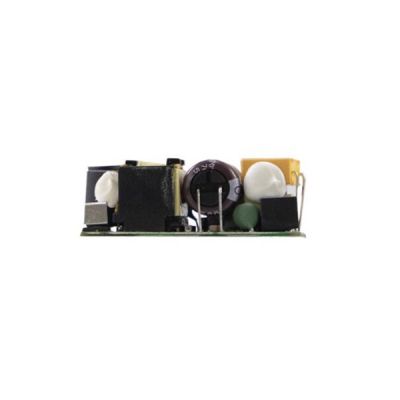

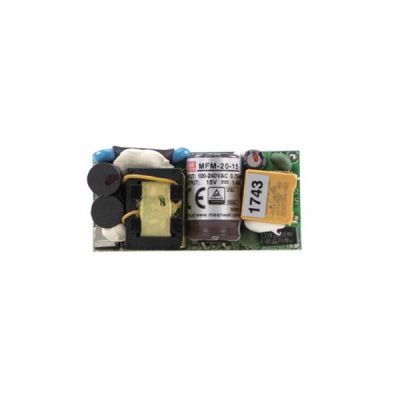

Meanwell MFM-20-5 is a 20W AC/DC on board type medical grade power supply with 5V4A0-4A4.4A20W22W150mVp-p. It is designed in high density and small size (49*23.8* 23mm), and also outstands the operation for 80~264VAC, low no load power consumption, and high efficiency reaching up to 87%. Moreover, MFM-20-5 is provided with Class II (no FG) double insulation, excellent dissipation, 5G anti-vibration, high EMC performance, 4KVAC isolation, and the like. so it can meet IEC/BS EN/EN60601-1 and ANSI/AAMIES60601-1 version three. Furthermore, the product gives the complete protections such as Short circuit, Overload, Over voltage and Over temperature. Due to its longevity, high reliability, excellent quality, Meanwell MFM-20-5 is a very suitable solution for BF (patient contact) type medical device or relevant equipment.
Meanwell MFM-20-5 Encoding
| MFM | Series Name |
| 20 | Rated Wattage |
| 5 | Output Voltage |
Meanwell MFM-20-5 Specifications
| Model | MFM-20-5 | |
| OUTPUT | DC VOLTAGE | 5V |
| RATED CURRENT | 4A | |
| CURRENT RANGE | 0-4A | |
| PEAK CURRENT | 4.4A | |
| RATED POWER | 20W | |
| PEAK LOAD(10sec.) | 22W | |
| RIPPLE & NOISE (max.) | 150mVp-p | |
| VOLTAGE TOL ERANCE | ±2.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGUL .ATION | ±0.5% | |
| SETUP, RISE TIME | 1500ms, 30ms/230VAC 1500ms, 30ms/115VAC at full load | |
| HOLD UP TIME (Typ.) | 40ms/230VAC 10ms/115VAC at full load | |
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC |
| FREQUENCY RANGE | 47 ~ 440Hz | |
| EFFICIENCY (Typ.) | 85.00% | |
| AC CURRENT (Typ.) | 0.75A/115VAC 0.5A/230VAC | |
| INRUSH CURRENT(Typ.) | COLD START 20A/115VAC 45A/230VAC | |
| LEAKAGE CURRENT | Touch current <80μ A/264VAC | |
| PROTECTION | OVERL OAD | 110% ~ 150% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 5.8-6.8V | |
| Protection type : Shut off o/p voltage, clamping by zener diode | ||
| OVER TEMPERATURE | Protection type : Shut down o/p voltage, recovers automatically after temperature goes down | |
| ENVIRONMENT | WORKING TEMP. | -35 ~ +85℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) | |
| SOLDERING TEMPERATURE | 260℃±5℃/10sec.max. | |
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| OPERATING ALTITUDE | 5000 meters | |
| SAFETY & EMC | SAFETY STANDARDS Note.6,9 | IEC60601-1, BS EN/EN60601-1, IEC60335-1, BS EN/EN60335-1, EAC TP TC 004,UL ANSI/AAMI ES60601-1(3.1 version),CAN/CSA-C22 3rd Edition approved |
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP | |
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN60601-1-2 | |
| OTHERS | MTBF | 7319.8K hrs min. Telcordia SR-332 (Bellcore) ; 1210.1K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 49*23.8*23mm (L*W*H) or 1.93 ″*0.94″*0.91″ inch | |
| PACKING | 0.028Kg; 200pcs/6.6Kg/0.94CUFT | |
Meanwell MFM-20-5 Features
l 1.93"x0.94" compact size
l 3 years warranty
l No minimum load required
l No load power consumption<0.1W
l Extremely low leakage current
l Wide operating temp. range -35~+85℃
l EMI class B for classⅡconfiguration
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Suitable for BF application with appropriate system consideration
l Medical safety approved (2 X MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN606O1-1
Meanwell MFM-20-5 Applications
l Portable medical device
l Mobile clinical workstation
l Medical computer monitor
l Medical examination instrument
Meanwell MFM-20-5 Mechanical Diagram
