LRS-50-24
10.64

LRS-50-24

$10.64

Meanwell 50W Single Output Switching Power Supply 24V2.2A0-2.2A52.8W15021.6 ~ 28.8V±1%±0.5%±0.5%

- +
Availability:In stock
SKU Meanwell LRS-50-24
Brand Meanwell
Details

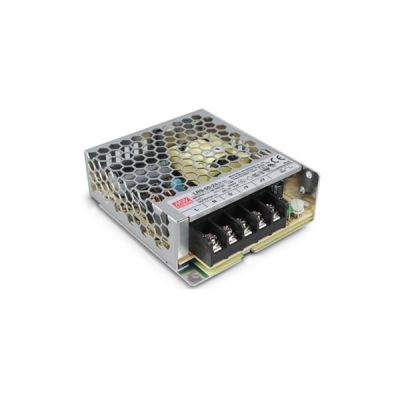

Meanwell LRS-50-24 is a 50W single-output enclosed type power supply with 24V2.2A0-2.2A52.8W. In addition of its high efficiency, the metallic mesh case design increases the heat dissipation, and work from -30℃ to 70℃ under air convection with no fan. By delivering an extremely low no load power consumption less than 0.2W, LRS-50-24 allows the end system to easily meet the worldwide energy requirement, and complied with the international safety regulations. At the same time, this model has the complete protection functions and 5G anti-vibration capability. Considering its high efficiency, long life and high reliability, L RS- 50-24 functions as a high price-to-performance power supply solution for various industrial areas.

Meanwell LRS-50-24 Specifications

Meanwell LRS-50-24 Specifications

Model LRS-50-24
Output DC VOLTAGE (V) 24V
RATED CURRENT 2.2A
CURRENT RANGE 0-2.2A
RATED POWER 52.8W
RIPPLE & NOISE (max.) mVp-p 150
VOLTAGE ADJ. RANGE 21.6 ~ 28.8V
VOLTAGE TOLERANCE ±1%
LINE REGUL ATION ±0.5%
LOAD REGULATION ±0.5%
SETUP, RISE TIME 1000ms, 30ms/230VAC 2000ms,30ms/115VAC at full load
HOLD UP TIME  30ms/230VAC 12ms/115VAC at full load
Input VOLTAGE RANGE 85 ~ 264VAC 120 ~ 373VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.)  88%
AC CURRENT (Typ.) 0.95A/115VAC 0.56A/230VAC
INRUSH CURRENT (Typ. ) COLD START 45A/230VAC
LEAKAGE CURR ENT <0.75mA / 240VAC
PROTECTION OVERL OAD 110 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 28.8 ~ 33.6V
 Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP. -30 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
OVER VOLTAGE CATEGORY ; Compliance to EN61558, EN50178, EN60664-1, EN62477-1; altitude up to 2000 meters
SAFETY &EMC SAFETY STANDARDS UL62368-1, TUV EN62368-1, EN60335-1, EN61558-1/-2-16,CCC GB4943.1, BSMI CNS14336-1, EAC TP TC 004
AS/NZS 60950.1(by CB),KC K60950-1(for LRS-50-12/24 only), BIS IS13252(Part1): 2010/IEC 60950-1: 2005 approved
WITHSTAND VOLTAGE I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to EN55032 (CISPR32) Class B, EN55014, EN61000-3-2,-3, GB/T 9254, BSMI CNS13438, EAC TP TC 020,
KC KN32,KN35(for LRS-50-12/24 only)
EMC IMMUNITY Compliance to EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2), heavy industry level, criteria A, EAC TP TC 020,
KC KN32,KN35(for LRS-50-12/24 only)
Others MTBF 645K hrs min. MIL-HDBK-217F (25)
DIMENSION 99*82*30mm (L*W*H)
PACKING 0.23Kg; 60pcs/14.8Kg/0.88CUFT

Meanwell LRS-50-24 Features

l   3 years warranty

l   Universal AC input/ Full range

l   Withstand 300VAC surge input for 5 second

l   No load power consumption<0.2W

l   Miniature size and 1U low profile

l   High operating temperature up to 70C

l   Protections: Short circuit 1 Overload 1 Over voltage

l   Cooling by free air convection

l   Operating altitude up to 5000 meters

l   Withstand 5G vibration test

l   High efficiency, long life and high reliability.

l   LED indicator for power on

l   Over voltage category III

l   100% full load burn-in test

l   Compliance to IEC/EN 60335-1(PD3) and IEC/EN61558-1, -2-16 for household appliances·

Meanwell LRS-50-24 Features
Meanwell LRS-50-24 Applications

l  Industrial automation machinery

l  Industrial control system

l  Mechanical and electrical equipment

l  Electronic instruments, equipment or apparatus

l  Household appliances

Meanwell LRS-50-24 Applications

Meanwell LRS-50-24 Mechanical Diagram

Meanwell LRS-50-24 Mechanical DiagramMeanwell LRS-50-24 Mechanical Diagram
