LRS-200-24
22.36

LRS-200-24

$22.36

Meanwell 200W Single Output Switching Power Supply 24V8.8A0-8.8A211.2W15021.6 - 28.8V±1%±0.5%±0.5%

- +
Availability:In stock
SKU Meanwell LRS-200-24
Brand Meanwell
Details

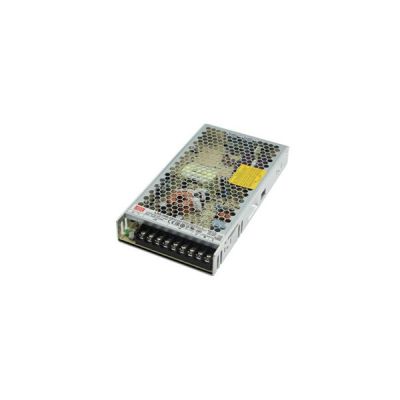

Meanwell LRS-200-24 is a 200W single-output enclosed type power supply with 24V8.8A0-8.8A211.2W and 30 mm low profile design. The high efficiency up to 90% and the metallic mesh case design enhances heat dissipation, and make it work from -25℃through 70℃ under air convection with no fan. Thanks to the extremely low no load power consumption less than 0.75W, it allows the end system to easily fulfill the worldwide energy requirements, and complied with the international safety regulations like IEC/UL 62368-1. Moreover, LRS-200-24 has both the complete protection functions and 5G anti-vibration capability. Considering its high efficiency, long life and high reliability. Meanwell LRS -200-24 is a high price-to-performance power supply solution for various industrial fields.

LRS-200-24 Meanwell LRS-200-24 Price and datasheet ycict

Meanwell LRS-200-24 Specifications

Model LRS-200-24
Output DC VOLTAGE 24V
RATED CURRENT 8.8A
CURRENT RANGE 0-8.8A
RATED POWER 211.2W
RIPPLE & NOISE (max.) mVp-p 150
VOLTAGE ADJ. RANGE 21.6 - 28.8V
VOLTAGE TOLERANCE ±1%
LINE REGUL ATION ±0.5%
LOAD REGULATION ±0.5%
SETUP, RISE TIME 1300ms, 50ms/230VAC 1300ms,50ms/115VAC at full load
HOLD UP TIME  16ms/230VAC 12ms/115VAC at full load
Input VOLTAGE RANGE 90 ~ 132VAC / 180 ~ 264VAC by switch 240 ~ 370VDC (switch on 230VAC)
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.)  89.50%
AC CURRENT (Typ.) 4A/115VAC 2.2A/230VAC
INRUSH CURRENT (Typ. ) COLD STAR 60A/115VAC 60A/230VAC
LEAKAGE CURR ENT <2mA / 240VAC
PROTECTION OVERL OAD 110 ~ 140% rated output power
3.3~36V Hiccup mode, recovers automatically after fault condition is removed.48V Shut down and latch off o/p voltage, re-power on to recover.
OVER VOLTAGE 28.8 ~ 33.6V
3.3~36V Hiccup mode, recovers automatically after fault condition is removed.48V Shut down and latch off o/p voltage, re-power on to recover.
ENVIRONMENT WORKING TEMP. -25 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS IEC/UL 62368-1, BSMI CNS14336-1, EAC TP TC 004, KC K60950-1(for LRS-200-12/24 only),BIS IS13252(Part1): 2010/IEC 60950-1: 2005, AS/NZS62368.1 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BSMI CNS13438, EAC TP TC 020,KC KN32,KN35(for LRS-200-12/24 only)
EMC IMMUNITY Compliance to EAC TP TC 020,KC KN32,KN35(for LRS-200-12/24 only)
Others MTBF 347.5K hrs min. MIL-HDBK-217F (25)
DIMENSION 215*115*30mm (L*W*H)
PACKING 0.66Kg; 15pcs/10.9Kg/0.78CUFT

Meanwell LRS-200-24 Features

l  1U low profile

l  3 years warranty

l  LED indicator for power on

l  100% full load burn-in test

l  Cooling by free air convection

l  Withstand 5G vibration test

l  AC input range selectable by switch

l  No load power consumption<0.75W

l  High operating temperature up to 70℃

l  Operating altitude up to 5000 meters

l  High efficiency, long life and high reliability

l  Withstand 300VAC surge input for 5 second

l  Protections: Short circuit/Overload/Over voltage /Over temperature

Meanwell LRS-200-24 Features

Meanwell LRS-200-24 Applications

l  Industrial automation machinery

l  Industrial control system

l  Household appliances

l  Mechanical and electrical equipment

l  Electronic instruments, equipment or apparatus

Meanwell LRS-200-24 Applications

Meanwell LRS-200 -24 Mechanical Diagram

Meanwell LRS-200 -24 Mechanical DiagramMeanwell LRS-200 -24 Mechanical Diagram
