LRS-200-12
21.26

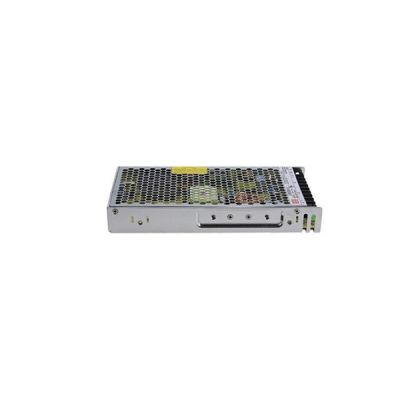

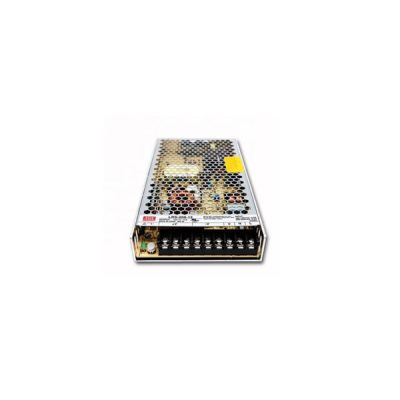

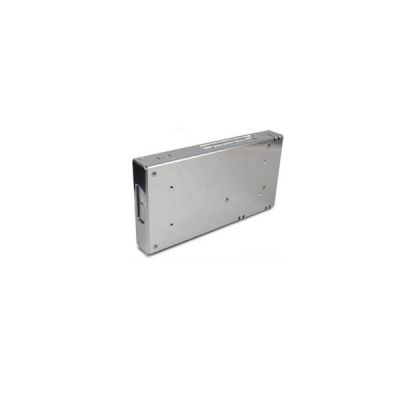

LRS-200-12

$21.26

Meanwell 200W Single Output Switching Power Supply  12V17A0-17A204W15010.2-13.8V±1.5%±0.5%±1%

- +
Availability:In stock
SKU Meanwell LRS-200-12
Brand Meanwell
Details

Meanwell LRS-200-12 is a 200W single-output enclosed type power supply with 12V17A0-17A204W and 30 mm low profile. In addition to the high efficiency up to 90%,the metallic mesh case design enhances the heat dissipation, and operate from -25℃through 70℃ under air convection with no fan. Thanks to the extremely low no load power consumption (less than O.75W), it allows the end system to easily meet the worldwide energy requirements, and complied with the international safety regulations such as IEC/UL 62368-1. Furthermore, it has the complete protection functions and 5G anti-vibration capability. Due to its high efficiency, long life and high reliability. Meanwell LRS -200-12 functions as a high price-to-performance power supply solution for various industrial cases.

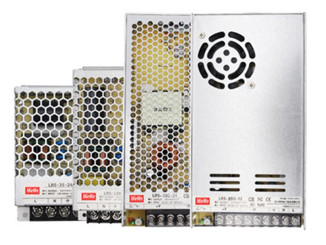

LRS-200

Meanwell LRS-200-12 Specifications

Model LRS-200-12
Output DC VOLTAGE 12V
RATED CURRENT 17A
CURRENT RANGE 0-17A
RATED POWER 204W
RIPPLE & NOISE (max.) mVp-p 150
VOLTAGE ADJ. RANGE 10.2-13.8V
VOLTAGE TOLERANCE ±1.5%
LINE REGUL ATION ±0.5%
LOAD REGULATION ±1%
SETUP, RISE TIME 1300ms, 50ms/230VAC 1300ms,50ms/115VAC at full load
HOLD UP TIME  16ms/230VAC 12ms/115VAC at full load
Input VOLTAGE RANGE 90 ~ 132VAC / 180 ~ 264VAC by switch 240 ~ 370VDC (switch on 230VAC)
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.)  87.00%
AC CURRENT (Typ.) 4A/115VAC 2.2A/230VAC
INRUSH CURRENT (Typ. ) COLD STAR 60A/115VAC 60A/230VAC
LEAKAGE CURR ENT <2mA / 240VAC
PROTECTION OVERL OAD 110 ~ 140% rated output power
3.3~36V Hiccup mode, recovers automatically after fault condition is removed.48V Shut down and latch off o/p voltage, re-power on to recover.
OVER VOLTAGE 13.8 ~ 16.2V
3.3~36V Hiccup mode, recovers automatically after fault condition is removed.48V Shut down and latch off o/p voltage, re-power on to recover.
ENVIRONMENT WORKING TEMP. -25 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS IEC/UL 62368-1, BSMI CNS14336-1, EAC TP TC 004, KC K60950-1(for LRS-200-12/24 only),BIS IS13252(Part1): 2010/IEC 60950-1: 2005, AS/NZS62368.1 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BSMI CNS13438, EAC TP TC 020,KC KN32,KN35(for LRS-200-12/24 only)
EMC IMMUNITY Compliance to EAC TP TC 020,KC KN32,KN35(for LRS-200-12/24 only)
Others MTBF 347.5K hrs min. MIL-HDBK-217F (25)
DIMENSION 215*115*30mm (L*W*H)
PACKING 0.66Kg; 15pcs/10.9Kg/0.78CUFT

Meanwell LRS-200-12 Features

l  AC input range selectable by switch

l  Withstand 300VAC surge input for 5 second

l  Protections: Short circuit/Overload/Over voltage /Over temperature

l  Cooling by free air convection

l  1U low profile

l  Withstand 5G vibration test

l  LED indicator for power on

l  No load power consumption<0.75W

l  100% full load burn-in test

l  High operating temperature up to 70℃

l  Operating altitude up to 5000 meters

l  High efficiency, long life and high reliability

l  3 years warranty

Meanwell LRS-200-12 Features

Meanwell LRS-200-12 Applications

l  Industrial automation machinery

l  Industrial control system

l  Mechanical and electrical equipment

l  Electronic instruments, equipment or apparatus

l  Household appliances

Meanwell LRS-200-12 Applications

Meanwell LRS-200-12 Mechanical Diagram

Meanwell LRS-200-12 Mechanical DiagramMeanwell LRS-200-12 Mechanical Diagram
