LRS-150F-24
15.84
Details

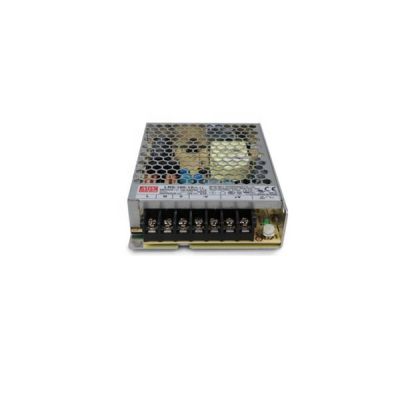

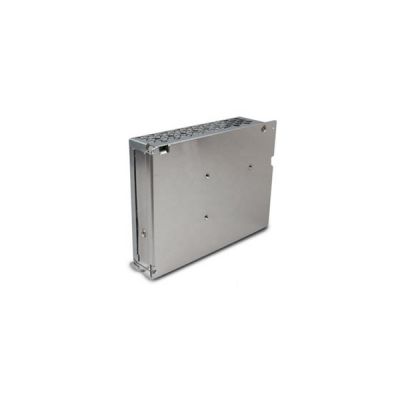

Meanwell LRS-150F-24 is 150W single-output enclosed type power supply with 24V6.5A0-6.5A156W and 30mm low-profile design. The design of metallic mesh case enhances heat dissipation, and make it operate from -30℃ through 70℃ under air convection with no fan. With an extremely low no load power consumption less than 0.5W, it allows the end system to easily Satisfy the worldwide energy requirement. Moreover, this model has the complete protection functions and 5G anti-vibration capability as well. Thanks to the high efficiency, long life and high reliability, Meanwell LRS-150F-24 functions as a high price-to-performance power supply solution for various industrial applications.
Meanwell LRS-150F-24 Specification
| Model | LRS-150F-24 | |
| Output | DC VOLTAGE | 24V |
| RATED CURRENT | 6.5A | |
| CURRENT RANGE | 0-6.5A | |
| RATED POWER | 156W | |
| RIPPLE & NOISE (max.) mVp-p | 200 | |
| VOLTAGE ADJ. RANGE | 21.6 ~ 28.8V | |
| VOLTAGE TOLERANCE | ±1% | |
| LINE REGUL ATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME | 500ms, 30ms/230VAC 500ms,30ms/115VAC at full load | |
| HOLD UP TIME | 16ms/230VAC 12ms/115VAC at full load | |
| Input | VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 89.00% | |
| AC CURRENT (Typ.) | 3A/115VAC 1.7A/230VAC | |
| INRUSH CURRENT (Typ. ) | COLD STAR 60A/230VAC | |
| LEAKAGE CURR ENT | <0.75mA / 240VAC | |
| PROTECTION | OVERL OAD | 110 ~ 140% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 28.8 ~ 33.6V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes | |
| OVER VOLTAGE CATEGORY | Ⅲ; Compliance to BS EN/EN61558, BS EN/EN50178, BS EN/EN60664-1, BS EN/EN62477-1; altitude up to 2000 meters | |
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, BS EN/EN60335-1, BS EN/EN61558-1/-2-16,CCC GB4943.1, BSMI CNS14336-1,EAC TP TC004, AS/NZS 62368.1(by CB) approved |
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, criteria A, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, criteria A, EAC TP TC 020 | |
| Others | MTBF | 648.6K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 159*97*30mm (L*W*H) | |
| PACKING | 0.48Kg ; 30pcs/15.4Kg/0.75CUFT | |
Meanwell LRS-150F-24 Features
l Universal AC input/ Full range
l Withstand 300VAC surge input for 5 second
l No load power consumption<0.5W
l Miniature size and 1U low profile
l High operating temperature up to 70C
l Protections: Short circuit /Overload/Over voltage/Over temperature
l Cooling by free air convection
l Operating altitude up to 5000 meters
l Withstand 5G vibration test
l High efficiency, long life and high reliability
l LED indicator for power on
l Over voltage category III
l 100% full load burn-in test
l 3 years warranty
Meanwell LRS-150F-24 Applications
l Household appliances
l Industrial control system
l Industrial automation machinery
l Mechanical and electrical equipment
l Electronic instruments, equipment or apparatus
Meanwell LRS-150F-24 Mechanical Diagram
