LPV-20-5
5.97

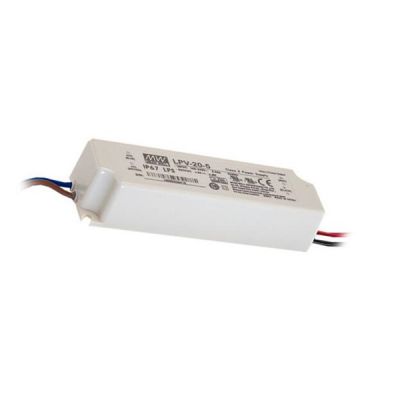

LPV-20-5

$5.97

Meanwell 20W Single Output Switching Power Supply with 5V3A0-3A15W80mVp-p±5.0%±1.0%±2.0%47~63Hz

- +
Availability:In stock
SKU Meanwell LPV-20-5
Brand Meanwell
Details

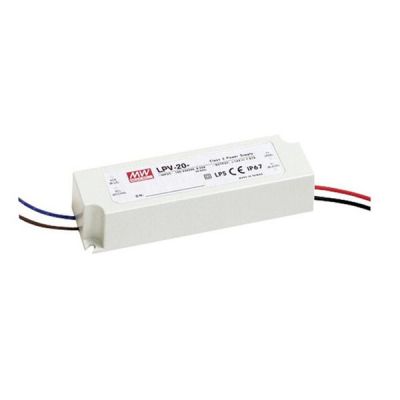

Meanwell LPV-20-5 is 20W Single Output Switching Power Supply with 5V3A0-3A15W80mVp-p±5.0%±1.0%±2.0%47~63Hz. The product features constant voltage and universal AC input/Full range. The work efficiency reaches high up to 83%, and fully encapsulated design enhances heat dissipation, At the same time, LPV-20-5 is able to operate from -30℃ through 70℃ under air convection with no fan, and it also delivers extremely low no load power consumption, permitting the end system to easily fit the worldwide energy requirement. Moreover, the item is equipped with various protections like Short circuit, Overload and Over voltage. Due to its high reliability, excellent quality, and competitive price, Meanwell LPV-20-5 is ideally suitable for LED related fixture or appliance such as LED Decoration or Advertisement devices, etc.

Meanwell LPV-20 price and specs Power Supply High reliability Low cost LPV-20-5 LPV-20-12 LPV-20-15 LPV-20-24 YCICT

Meanwell LPV-20-5 Specifications

Model LPV-20-5
OUTPUT DC VOLTAGE 5V
RATED CURRENT 3A
CURRENT RANGE 0-3A
RATED POWER 15W
RIPPLE & NOISE (max.) 80mVp-p
VOLTAGE TOL ERANCE ±5.0%
LINE REGULATION ±1.0%
LOAD REGULATION ±2.0%
SETUP, RISE TIME 500ms, 20ms / 230VAC 500ms, 20ms / 115VAC at full load
HOLD UP TIME (Typ.) 50ms/230VAC 16ms/115VAC at full load
Input VOLTAGE RANGE 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 77.00%
AC CURRENT (Typ.) 0.55A/115VAC 0.35A/230VAC
INRUSH CURRENT(Typ.) COLD START 70A(twidth=215μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER 8 units (circuit breaker of type B) / 14 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT 0.25mA / 240VAC
PROTECTION OVERLOAD 110 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 5.75-6.75V
Protection type : Shut off o/p voltage, clamping by zener diode
ENVIRONMENT WORKING TEMP. -30 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS UL879, UL1310, CSA C22.2 No. 207-M89,CAN/CSA C22.2 No. 223-M91,IEC/BS EN/EN 62368-1,EAC TP TC 004,IP67 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC
ISOLATION RESISTANCE I/P-O/P:>100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class A, BS EN/EN61000-3-3,EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020
Others MTBF 6025.8K hrs min. Telcordia SR-332 (Bellcore) ; 786.5Khrs min. MIL-HDBK-217F (25)
DIMENSION 118*35*26mm (L*W*H)
PACKING 0.22Kg; 60pcs/14.2Kg/0.72CUFT

Meanwell LPV-20-5 Features

l  Pass LPS

l  100% full load burn-in test

l  Low cost, high reliability

l  2 years warranty

l  Constant voltage design

l  Universal AC input/Full range

l  Withstand 300V AC surge input for 5 seconds

l  Protections: Short circuit/Over load/Over voltage

l  Cooling by free air convection

l  Small and compact size

l  Fully encapsulated with IP67 level

l  Fully isolated plastic case

l  ClassⅡpower unit, no FG

l  Class 2 power unit

l  Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)

Meanwell LPV-20 price and datasheet Power Supply High reliability Low cost LPV-20-5 LPV-20-12 LPV-20-15 LPV-20-24 YCICT

Meanwell LPV-20-5 Mechanical Diagram

Meanwell LPV-20 price and datasheet Power Supply High reliability Low cost LPV-20-5 LPV-20-12 LPV-20-15 LPV-20-24 YCICT
