LPV-100-36
9.96

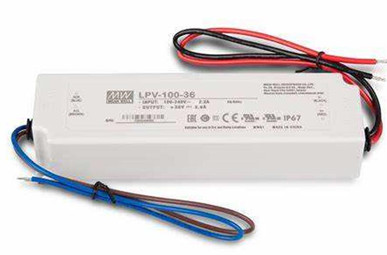

LPV-100-36

$9.96

Meanwell 100W Single Output Switching Power Supply with 36V2.8A0-2.8A100.8W150mVp-p±5.0%±1.0%±2.0%47~63Hz88.00%

- +
Availability:In stock
SKU Meanwell LPV-100-36
Brand Meanwell
Details

Meanwell LPV-100-36 is 100W Single Output Switching Power Supply with 36V2.8A0-2.8A100.8W150mVp-p±5.0%±1.0%±2.0%47~63Hz88.00%. The item offers constant voltage and universal AC input/Full range. Since the efficiency reaches high up to 89%, and fully encapsulated design enhances heat dissipation, LPV-100-36 is able to work from -25℃ through 70℃ under free air convection. Meanwhile, the item delivers extremely low no load power consumption, allowing end system to easily fit the worldwide energy requirement and safety standards. Additionally, it is equipped with various protections like Short circuit, Overload and Over voltage. As a result of its high efficiency, excellent quality, and competitive price, Meanwell LPV-100-36 is ideally suitable for LED related fixture or appliance such as LED decoration or advertisement devices, etc.

Meanwell LPV-100-36 price and datasheet LPV-100-5 LPV-100-12 LPV-100-15 LPV-100-24 LPV-100-36 LPV-100-48 IP67 YCICT

Meanwell LPV-100-36 Specifications

Model LPV-100-36
OUTPUT DC VOLTAGE 36V
RATED CURRENT 2.8A
CURRENT RANGE 0-2.8A
RATED POWER 100.8W
RIPPLE & NOISE (max.) 150mVp-p
VOLTAGE TOL ERANCE ±5.0%
LINE REGULATION ±1.0%
LOAD REGULATION ±2.0%
SETUP, RISE TIME 2000ms, 25ms / 230VAC 2000ms, 25ms / 115VAC
HOLD UP TIME (Typ.) 50ms/230VAC 14ms/115VAC at full load
Input VOLTAGE RANGE 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 88.00%
AC CURRENT (Typ.) 2.2A/115VAC 1.2A/230VAC
INRUSH CURRENT(Typ.) COLD START 75A(twidth=700μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER 2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT 0.25mA / 240VAC
PROTECTION OVERLOAD 110 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 41.4-48.6V
Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP. -25 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS UL8750,CSA C22.2 No 250.13-12,UL879,CSA C22.2 No.207-M89,BIS IS15885(for LPV-100-12,LPV-100-24 only), EAC TP TC 004,IP67, IEC62368-1 , BS EN/EN62368-1 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC
ISOLATION RESISTANCE I/P-O/P:>100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class A(<=80% load), BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN55035, light industry level, EAC TP TC 020
Others MTBF 4497.1K hrs min. Telcordia SR-332 (Bellcore) ; 681.6Khrs min. MIL-HDBK-217F (25)
DIMENSION 190*52*37mm (L*W*H)
PACKING 0.63Kg;20pcs/13.6Kg/0.55CUFT

Meanwell LPV-100-36 Features

l  2 years warranty

l  Low cost, high reliability

l  Constant voltage design

l  Fully isolated plastic case

l  100% full load burn-in test

l  Universal AC input/Full range

l  Cooling by free air convection

l  Fully encapsulated with IP67 level

l  Withstand 300V AC surge input for 5 seconds

l  Protections: Short circuit/Overload/Over voltage

l  Suitable for L ED related fixture or appliance such as LED Decoration or Advertisement devices

Meanwell LPV-100-36 price and datasheet 100W LPV-100-5 LPV-100-12 LPV-100-15 LPV-100-24 LPV-100-36 LPV-100-48 IP67 YCICT

Meanwell LPV-100-36 Mechanical Diagram

Meanwell LPV-100-36 price and specs 100W LPV-100-5 LPV-100-12 LPV-100-15 LPV-100-24 LPV-100-36 LPV-100-48 IP67 YCICT
