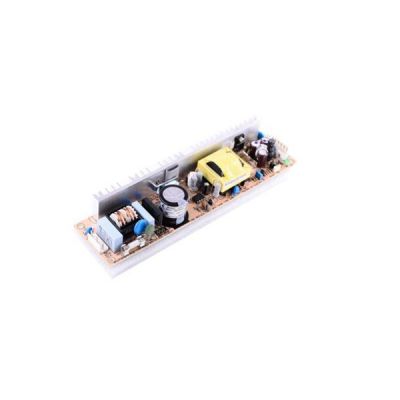

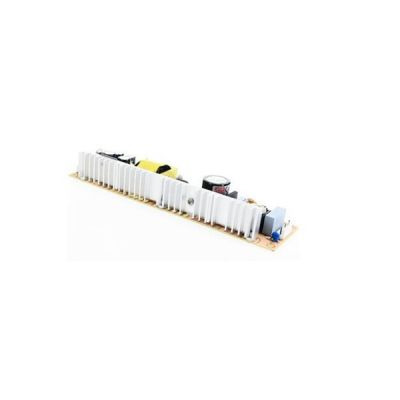

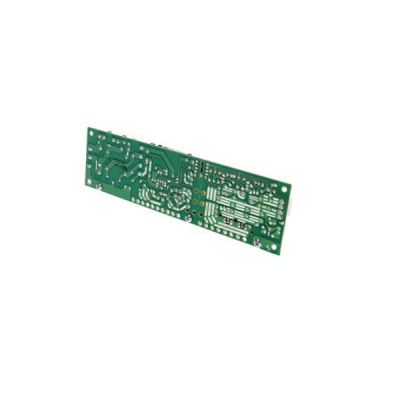

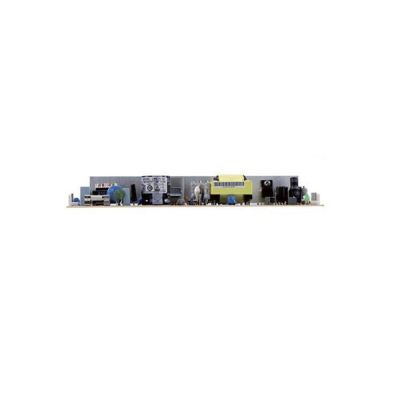

LPS-75-24
15.13
Details
Meanwell LPS-75-24 is 75W Single Output Switching Power Supply with 24V3.2A0-3.5A76.8W84W120mVp-p22-27V. The unit is designed with compact size and low profile, and offers 90~264VAC input, and also featuring Built-in remote ON-OFF control and Universal AC input/Full range. In addition, the working efficiency goes up to 83% and works from -20 ℃through 70 ℃ under free air convection. Since it delivers an extremely low no load power consumption, this allows the end system to easily meet the worldwide energy requirements. Moreover, LPS-75-24 provides the various protection functions such as Short circuit, Overload and Over voltage, and 100% full load burn-in test. In addition, the product complies with the international safety regulations such as UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004. As a result of its High efficiency, low cost and longevity, Meanwell LPS-75-24 functions as a high price-to-performance power supply solution for various industrial applications.
Meanwell LPS-75-24 Specifications
| Model | LPS-75-24 | |
| OUTPUT | DC VOLTAGE | 24V |
| RATED CURRENT | 3.2A | |
| CURRENT RANGE | 0-3.5A | |
| RATED POWER | 76.8W | |
| PEAK LOAD(10sec.) | 84W | |
| RIPPLE & NOISE (max.) | 120mVp-p | |
| VOLTAGE ADJ. RANGE | 22-27V | |
| VOLTAGE TOL ERANCE | ±2.0% | |
| LINE REGULATION | ±1% | |
| LOAD REGUL .ATION | ±1% | |
| SETUP, RISE TIME | 100ms, 35ms/230VAC 100ms, 35ms/115VAC at full load | |
| HOLD UP TIME (Typ.) | 60ms/230VAC 12ms/115VAC at full load | |
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 83.00% | |
| AC CURRENT (Typ.) | 1.9A/115VAC 1.1A/230VAC | |
| INRUSH CURRENT(Typ.) | COLD START 18A/115VAC 36A/230VAC | |
| LEAKAGE CURRENT | <1mA / 240VAC | |
| PROTECTION | OVERL OAD | 115 ~ 150% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 27.6-32.4V | |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| FUNCTION | REMOTE ON/OFF | RC+/RC- : 0 ~ 0.8V power on ; 4 ~ 10V power off |
| ENVIRONMENT | WORKING TEMP. | -20 ~ +70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.04%/℃(0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC/ 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | |
| EMS IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, criteria A, EAC TP TC 020 |
|
| OTHERS | MTBF | 355Khrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 222*55*30mm (L*W*H) | |
| PACKING | 0.3Kg; 48pcs/15.6Kg/1.23CUFT | |
Meanwell LPS-75-24 Features
l 2 years warranty
l Small and compact size
l LED indicator for power on
l 100% full load burn-in test
l Universal AC input/Full range
l Built-in remote ON-OFF control
l Cooling by free air convection
l PWM control and regulated
l Protections: Short circuit/ Overload/Over voltage
Meanwell LPS-75-24 Mechanical Diagram
