LPS-100-27
23.68

LPS-100-27

$23.68

Meanwell 100W Single Output with 27V3.8A0-3.8A102.6W150mVp-p26-32V±1.0%±0.5%±0.5%

- +
Availability:In stock
SKU Meanwell LPS-100-27
Brand Meanwell
Details

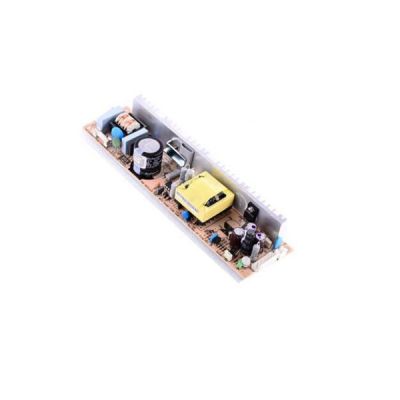

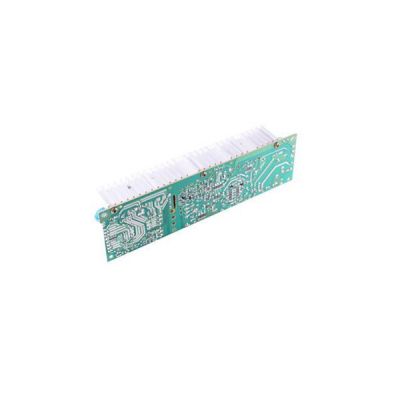

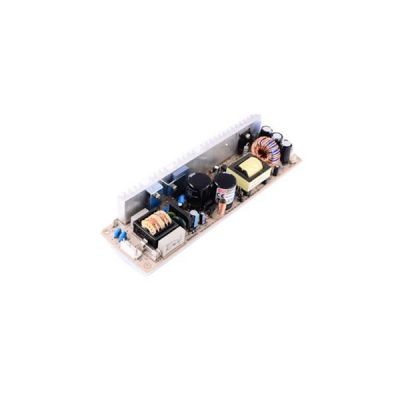

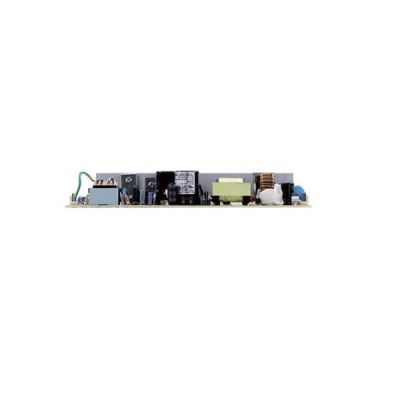

Meanwell LPS-100-27 is 100W Single Output Switching Power Supply with 27V3.8A0-3.8A102.6W150mVp-p26-32V. It is designed compact size and low profile featured with Universal AC input/Full range. As the working efficiency reaches up to 81% and delivers extremely low no load power consumption, LPS-100-27 could operate from -10 ℃through 60 ℃ under air convection with no fan, and at the same time, permits the end system to easily meet the worldwide energy standards. Apart from them, the product offers the various protection functions such as Short circuit, Overload and Over voltage, and 100% full load burn-in test as well. Additionally, LPS-100-27 complies with the international safety regulations such as UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004. Considering its High efficiency, low cost and  longevity, Meanwell LPS-100-27 is a high price-to-performance power supply solution for various industrial applications.

Meanwell LPS-100-27 Specifications

Meanwell LPS-100-27 Specifications

Model LPS-100-27
OUTPUT DC VOLTAGE 27V
RATED CURRENT 3.8A
CURRENT RANGE 0-3.8A
RATED POWER 102.6W
RIPPLE & NOISE (max.) 150mVp-p
VOLTAGE ADJ. RANGE 26-32V
VOLTAGE TOL ERANCE  ±1.0%
LINE REGULATION ±0.5%
LOAD REGUL .ATION ±0.5%
SETUP, RISE TIME 800ms, 50ms/230VAC 1200ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.) 20ms/230VAC 20ms/115VAC at full load
INPUT VOLTAGE RANGE 88 ~ 132VAC / 176 ~ 264VAC auto switch 248 ~ 370VDC [DC input operation possible by connecting AC/N(-), AC/L(+)]
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 81.00%
AC CURRENT (Typ.) 2.3A/115VAC 1.5A/230VAC
INRUSH CURRENT(Typ.) COLD START 30A/115VAC 60A/230VAC
LEAKAGE CURRENT <1mA / 240VAC
PROTECTION OVERL OAD 105 ~ 140% (+24V: above 6.5A) rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 33.7-39.2V
Protection type : Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT WORKING TEMP. -10 ~ +60(Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -20 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.05%/(0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS  UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMS IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,11, light industry level, criteria A, EAC TP TC 020
OTHERS MTBF 203.6Khrs min. MIL-HDBK-217F (25)
DIMENSION 222*62*32mm (L*W*H)
PACKING 0.45Kg; 24pcs/12.5Kg/1.63CUFT

Meanwell LPS-100-27 Features

l  Universal AC input/ Full range

l  2 years warranty

l  Cooling by free air convection

l  100% full load burn-in test

l  Fix switching frequency at 134KHz

l  Protections: Short circuit/Overload/Over voltage

Meanwell LPS-100-27 Features

Meanwell LPS-100-27 Mechanical Diagram

Meanwell LPS-100-27 Mechanical Diagram
