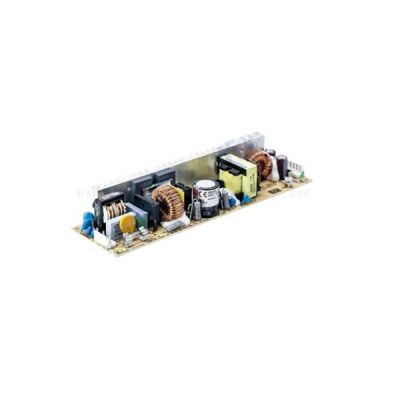

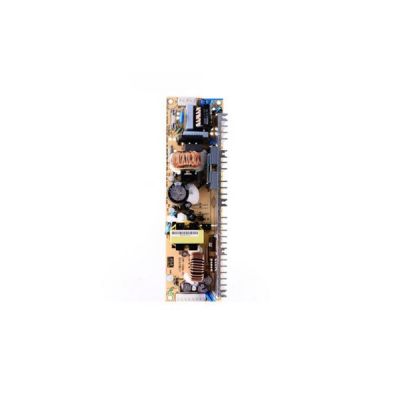

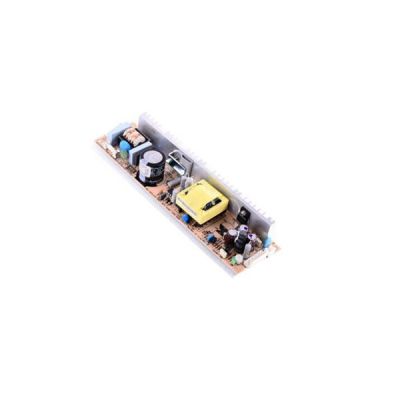

LPP-100-12
24.25

LPP-100-12

$24.25

Meanwell 100W Single Output Power Supply with PFC Function 12V8.5A0-8.5A102W100mVp-p11.4-13.2V±2.0%±0.5%±0.5%

- +
Availability:In stock
SKU Meanwell LPP-100-12
Brand Meanwell
Details

Meanwell LPP-100-12 is 100W Single Output Switching Power Supply with 12V8.5A0-8.5A102W100mVp-p11.4-13.2V. The unit features PFC Function in compact size and low profile, and also accepts 85~264VAC input. It is highlighted with Universal AC input/Full range and Fix switching frequency at 134KHz. The working efficiency is up to 83% and  operate from -10 ℃through 60 ℃ under free air convection. Since it delivers an extremely low no load power consumption and passes 100% full load burn-in test., this allows the end system to easily fit the worldwide energy requirements. What’s more, LPP-100-12 provides the various protection functions such as Short circuit, Overload and Over voltage. At the same time, it complies with the international safety regulations such as UL62368-1, TUV BS EN/EN62368-1, EAC TP TC. In view of its High efficiency, low cost and  longevity, Meanwell LPP-100-12 is a high price-to-performance power supply solution for various industrial applications.

Meanwell LPP-100-12

Meanwell LPP-100-12 Specifications

Model LPP-100-12
OUTPUT DC VOLTAGE 12V
RATED CURRENT 8.5A
CURRENT RANGE 0-8.5A
RATED POWER 102W
RIPPLE & NOISE (max.) 100mVp-p
VOLTAGE ADJ. RANGE 11.4-13.2V
VOLTAGE TOL ERANCE  ±2.0%
LINE REGULATION ±0.5%
LOAD REGUL .ATION ±0.5%
SETUP, RISE TIME 600ms, 30ms/230VAC 1200ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.) 28ms/230VAC 28ms/115VAC at full load
INPUT VOLTAGE RANGE 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF>0.95/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.) 79.00%
AC CURRENT (Typ.) 1.7A/115VAC 0.75A/230VAC
INRUSH CURRENT(Typ.) COLD START 30A/230VAC
LEAKAGE CURRENT <2mA / 240VAC
PROTECTION OVERL OAD 105 ~ 150% rated output power
Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE 13.8-16.2V
Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP. -10 ~ +60(Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -20 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.05%/(0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS  UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMS IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, criteria A, EAC TP TC 020
OTHERS MTBF 224.3Khrs min. MIL-HDBK-217F (25)
DIMENSION 222*62*33.6mm (L*W*H)
PACKING 0.51Kg; 24pcs/13.9Kg/1.63CUFT

Meanwell LPP-100-12 Features

l  3 years warranty

l  100% full load burn-in test

l  Built-in active PFC function

l  Cooling by free air convection

l  Universal AC input/ Full range

l  Protections: Short circuit/Overload/Over voltage

l  Fixed switching frequency at PFC:67KHz PWM:134KHz

Meanwell LPP-100-12 Features

Meanwell LPP-100-12 Mechanical Diagram

Meanwell LPP-100-12 Mechanical Diagram
