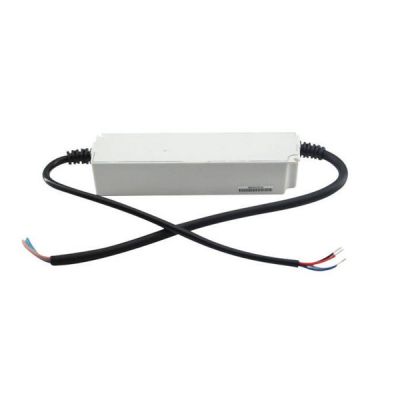

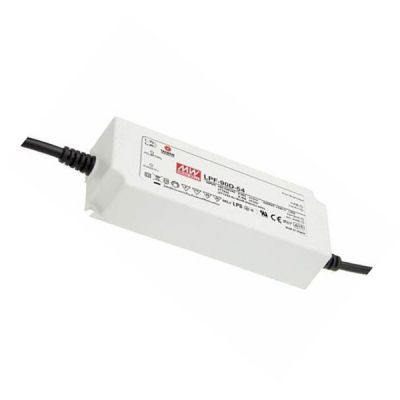

Meanwell 90W Constant Current Mode LED Driver with 20V4.5A90W12-20V±5.0%

- +
Availability:In stock
SKU Meanwell LPF-90D-20
Brand Meanwell
Details

Meanwell LPF-90D-20 is 90W AC/DC LED driver with 20V4.5A90W12-20V±5.0%. The unit offers  the constant current output. Meanwhile, it could work from 90 ~ 305 VAC, and offer the model with rated voltage 20V. Since the efficiency reaches high up to 90.5% under no fan design, LPF-90D-20 is able to operate for-40℃ ~ +70℃ case temperature through free air convection. Moreover, the model is rated with IP67 ingress protection level, and equipped with the 3 in 1 dimming function so as to provide the design flexibility for LED lighting system. Thanks to its longevity, high reliability and excellent quality, Meanwell LPF-90D-20 is suitable to work for a variety of applications at dry or damp and wet locations.

Meanwell LPF-90D-20 Price and datasheet 90W Constant Current Mode AC/DC LED driver LPF-90D-15/20/24/30/36/42/48/54 YCICT

Meanwell LPF-90D-20 Encoding

LPF Series Name
90D Rated Wattage
20 Rated output voltage (15V/20/24V/30V/36V/42V/48V/54V)

Meanwell LPF-90D-20 Specifications

Model LPF-90D-20
OUTPUT DC VOLTAGE 20V
RATED CURRENT 4.5A
RATED POWER 90W
CONSTANT CURRENT REGION 12-20V
CURRENT RIPPLE 5.0% max. at rated current
CURRENT TOLERANCE ±5.0%
SETUP, RISE TIME 1200ms, 200ms / 115VAC 500ms, 200ms / 230VAC
HOLD UP TIME (Typ.) 16ms/230VAC 16ms/115VAC
Input VOLTAGE RANGE 90~305VAC 127~431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR PF>=0.97/115VAC, PF>=0.96/230VAC, PF>=0.95/277VAC at full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION THD< 20%(at load>=60%/115VC,230VAC; at load>=75%/277VAC) (Please refer to“TOTAL HARMONIC DISTORTION(THD)"section)
EFFICIENCY (Typ.) 89.50%
AC CURRENT 0.95A / 115VAC 0.5A / 230VAC 0.4A / 277VAC
INRUSH CURRENT(Typ.) COLD START 70A(twidth=435μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER 4 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT <0.75mA / 240VAC
PROTECTION OVER CURRENT 95 ~ 108%
Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE 23-27V
Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP. Tcase=-40 ~ +70 (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP. Tcase=+70
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS UL8750(type”HL”), CSA C22.2 No.250.13-12, TUV BS EN/EN61347-1, BS EN/EN61347-2-13, EAC TP TC 004, GB19510.1,GB19510.14,IP67 approved ; Design refer to UL60950-1
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (at load>=60%) ; BS EN/EN61000-3-3, GB17743 and GB17625.1,EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Line 2KV),EAC TP TC 020
Others MTBF 3110.7K hrs min. Telcordia SR-332 (Bellcore) ; 267.3Khrs min. MIL-HDBK-217F (25)
DIMENSION 161*61*36mm (L*W*H)
PACKING 0.7Kg;20pcs/15Kg/0.73CUFT

Meanwell LPF-90D-20 Features

l  Class 2 power unit

l  Function:3 in 1 dimming

l  Typical lifetime>50000 hours

l  5 years warranty

l  Constant Current mode output

l  Plastic housing with ClassⅡdesign

l  Built-in active PFC function

l  IP67 rating for indoor or outdoor installations

Meanwell LPF-90D-20 Price and Specs 90W Constant Current Mode AC/DC LED driver LPF-90D-15/20/24/30/36/42/48/54 YCICT

Meanwell LPF-90D-20 Applications

l  LED panel lighting

l  LED downlight

l  LED decorative lighting

l  LED tunnel lighting

l  Moving sign

l  Type “HL" for use in Class l, Division 2 hazardous (Classified) location

Meanwell LPF-90D-20 Mechanical Diagram

Meanwell LPF-90D-20 Price and Specs Constant Current Mode AC/DC LED driver LPF-90D-15/20/24/30/36/42/48/54 IP68 YCICT

Meanwell LPF-90D-20 Price and Specs 90W Constant Current Mode AC/DC LED driver LPF-90D-15/20/24/30/36/42/48/54 PFC YCICT
