LPF-40-12
19.12

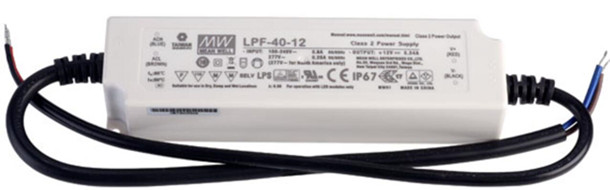

LPF-40-12

$19.12

Meanwell 40W Constant Voltage + Constant Current LED Driver with 12V7.2-12V3.34A40.08W150mVp-p±4.0%±0.5%±2.0%

- +
Availability:In stock
SKU Meanwell LPF-40-12
Brand Meanwell
Details

Meanwell LPF-40-12 is 40W AC/DC LED driver with 12V7.2-12V3.34A40.08W150mVp-p±4.0%±0.5%±2.0%. The product highlights  the dual modes constant voltage and constant current output. Meanwhile, it could operate from 90~305VAC and offers the model with rated voltage 12V. As the hign efficiency reaches up to 90% based on the fanless design, LPF-40-12 is able to work for -40°C ~ +80°C case temperature under free air convection. In addition, the unit is rated with IP67 ingress protection level. Due to its longevity, high reliability and excellent quality, Meanwell LPF-40-12 is suitable to work for a variety of applications at dry, damp or wet locations.

Meanwell LPF-40-12 price and specs Constant Voltage and Constant Current AC/DC LED Driver 40W PFC IP67 low cost YCICT

Meanwell LPF-40-12 Encoding

LPF Series Name
40 Rated Wattage
12 Rated output voltage (12V/15V/20/24V/30V/36V/42V/48V/54V)

Meanwell LPF-40-12 Specifications

Model LPF-40-12
OUTPUT DC VOLTAGE 12V
CONSTANT CURRENT REGION 7.2-12V
RATED CURRENT 3.34A
RATED POWER 40.08W
RIPPLE & NOISE (max.) 150mVp-p
VOLTAGE TOL ERANCE ±4.0%
LINE REGULATION ±0.5%
LOAD REGULATION ±2.0%
SETUP, RISE TIME 1000ms, 80ms / 115VAC 500ms, 80ms / 230VAC
HOLD UP TIME (Typ.) 16ms/230VAC 16ms/115VAC
Input VOLTAGE RANGE 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR PF>=0.97/115VAC, PF>=0.95/230VAC, PF>=0.92/277VAC at full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION THD< 20%( at load>=60%/115VC,230VAC; at load>=75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.) 84.00%
AC CURRENT 0.6A / 115VAC 0.3A / 230VAC 0.25A/277VAC
INRUSH CURRENT(Typ.) COLD START 50A(twidth=210μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER 12 units (circuit breaker of type B) / 20 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT <0.75mA / 240VAC
PROTECTION OVER CURRENT 95 ~ 108%
Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 15-17V
Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP. Tcase=-40 ~ +80 (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP. Tcase=+80
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS UL8750, CSA C22.2 No. 250.0-08, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384,EAC TP TC 004, IP67,
J61347-1, J61347-2-13,GB19510.1,GB19510.14 approved ; design refer to UL60950-1
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (at load>=60%) ; BS EN/EN61000-3-3,
GB17743 and GB17625.1,EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Line 2KV),
EAC TP TC 020
Others MTBF 3597.9K hrs min. Telcordia SR-332 (Bellcore) ; 438.9Khrs min. MIL-HDBK-217F (25)
DIMENSION 162.5*43*32mm (L*W*H)
PACKING 0.44Kg; 32pcs/15.08Kg/0.93CUFT

Meanwell LPF-40-12 Features

l  Plastic housing with Class ll design

l  Built-in active PFC function

l  Class 2 power unit

l  Fully encapsulated with IP67 level

l  Typical lifetime> 50000 hours

l  5 years warranty

l  Constant Voltage + Constant Current mode output

Meanwell LPF-40-12 price and specs 40W Constant Voltage and Constant Current AC/DC LED Driver with PFC and IP67 YCICT

Meanwell LPF-40-12 Applications

l  LED panel lighting

l  LED downlight

l  LED decorative lighting

l  LED tunnel lighting

l  Moving sign

Meanwell LPF-40-12 Mechanical Diagram

Meanwell LPF-40-12 price and specs Constant Voltage and Constant Current AC/DC LED Driver 40W with PFC and IP67 YCICT

Meanwell LPF-40-12 price and datasheet Constant Voltage and Constant Current AC/DC LED Driver 40W with PFC IP67 YCICT
