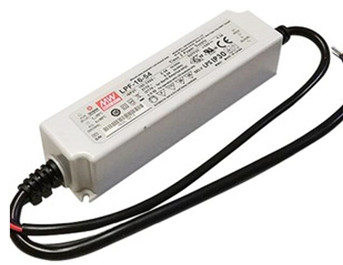

LPF-16D-15
15.03

LPF-16D-15

$15.03

Meanwell 16W Constant Current Mode LED Driver with 15V1.07A16.05W8.25-15V±5.0%

- +
Availability:In stock
SKU Meanwell LPF-16D-15
Brand Meanwell
Details

Meanwell LPF-16D-15 is 16W AC/DC LED driver with 15V1.07A16.05W8.25-15V±5.0%. The product features the constant current output. Meanwhile, it could operate from 90 ~ 305VAC and offer the model with rated voltage 15V. As the efficiency reaches high up to 85% with the fanless design, LPF-16D-15 is able to work for -35°C ~ +70°C case temperature under free air convection. Additionally, it is equipped with the 3 in 1 dimming function, so as to provide the design flexibility for LED lighting system. Due to its longevity, high reliability and excellent quality, Meanwell LPF-16D-15 is suitable to work for a variety of applications at dry or damp and the optional models with IP67 rating is able to further work at wet locations.

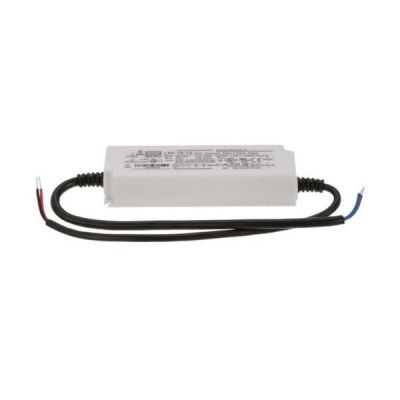

Meanwell LPF-16D-15 Price and datasheet Constant Current Mode AC/DC LED Driver LPF-16D-12/15/20/24/30/36/42/48/54 YCICT

Meanwell LPF-16D-15 Encoding

LPF Series Name
16D Rated Wattage
15 Rated output voltage (12V/15V/20/24V/30V/36V/42V/48V/54V)

Meanwell LPF-16D-15 Specifications

Model LPF-16D-15
OUTPUT DC VOLTAGE 15V
RATED CURRENT 1.07A
RATED POWER 16.05W
CONSTANT CURRENT REGION 8.25-15V
CURRENT RIPPLE 5.0% max. at rated current
CURRENT TOLERANCE ±5.0%
SETUP, RISE TIME 1500ms, 80ms / 115VAC 500ms, 80ms / 230VAC
HOLD UP TIME (Typ.) 16ms/230VAC 16ms/115VAC
Input VOLTAGE RANGE 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR PF>=0.97/115VAC, PF>=0.95/230VAC, PF>=0.92/277VAC at full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section
TOTAL HARMONIC DISTORTION THD< 20%( at load>=60%/115VC,230VAC; at load>=75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section
EFFICIENCY (Typ.) 83.00%
AC CURRENT 0.4A / 115VAC 0.25A / 230VAC 0.2A/277VAC
INRUSH CURRENT(Typ.) COLD START 45A(twidth=200μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER 14 units (circuit breaker of type B) / 24 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT <0.75mA / 240VAC
PROTECTION OVER CURRENT 95 ~ 108%
Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 17.5-21V
Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT WORKING TEMP. Tcase=-35 ~ +70 (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.  Tcase=+70
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS UL8750, CSA C22.2 No. 250.0-08, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent,BS EN/EN62384, EAC TP TC 004,GB19510.1,GB19510.14 approved, IP67(optional); Design refer to UL60950-1
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (at load>=55%) ; BS EN/EN61000-3-3,GB17743 and GB17625.1,
EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Line 2KV),EAC TP TC 020
Others MTBF 3572.8K hrs min. Telcordia SR-332 (Bellcore) ; 391.6Khrs min. MIL-HDBK-217F (25)
DIMENSION 148*40*32mm (L*W*H)
PACKING 0.21Kg;40pcs/9.4Kg/ 1.02CUFT

Meanwell LPF-16D-15 Features

l  Constant Current mode output

l  Plastic housing with Class ll design

l  Built-in active PFC function

l  Class 2 power unit

l  Function: 3 in 1 dimming

l  Typical lifetime>50000 hours .

l  5 years warranty

l  Standard type with IP30 level, optional IP67 with fully encapsulated

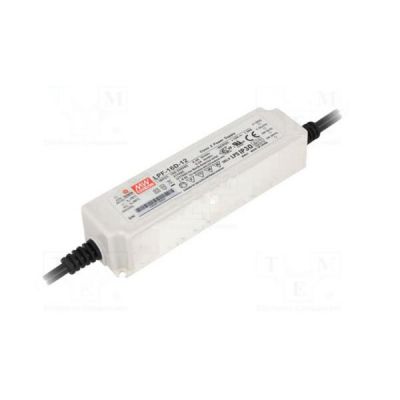

Meanwell LPF-16D-15 Price and specs 16W Constant Current Mode AC/DC LED Driver LPF-16D-12/15/20/24/30/36/42/48/54 YCICT

Meanwell LPF-16D-15 Applications

l  LED downlight

l  LED spotlight

l  LED decorative lighting

l  LED tunnel lighting

Meanwell LPF-16D-15 Mechanical Diagram

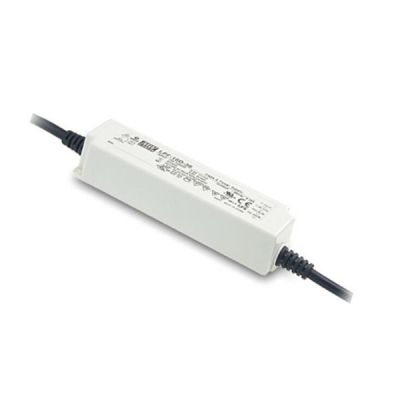

Meanwell LPF-16D-15 Price and specs Constant Current Mode AC/DC LED Driver LPF-16D-12/15/20/24/30/36/42/48/54 16W YCICT

Meanwell LPF-16D-15 Price and specs Constant Current Mode AC/DC LED Driver LPF-16D-12/15/20/24/30/36/42/48/54 YCICT
