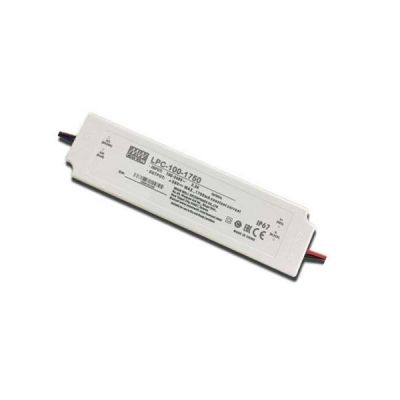

LPC-100-1750
14.25

LPC-100-1750

$14.25

Meanwell 100W Single Output LED Power Supply with 1750mA±5.0%29-58V101.5W±5.0%1Vp-p±1.0%±1.5%47~63Hz89.00%

- +
Availability:In stock
SKU Meanwell LPC-100-1750
Brand Meanwell
Details

Meanwell LPC-100-1750 is 100W single output AC/DC LED switching power supply with 1750mA±5.0%29-58V101.5W±5.0%1Vp-p±1.0%±1.5%47~63Hz89.00%. The product is designed constant current and universal AC input/full range, and offers the model with output current 1750mA which LED lighting applications employ most frequently. In addition, LPC-100-1750 operates for the range 90~264VAC, which allows the model to work perfectly for most of the countries in the world. Moreover, the unit is based on class Il (without FG pin) design, housed with the 94V-0 flame retardant plastic case. As the efficiency reaches up to 90%, it could work at the ambient temperature between -25℃~+50℃ under air convection. Because of its high efficiency, excellent quality, and low price, Meanwell LPC-100-1750 is ideally suitable for LED related fixture or appliance such as LED Decoration or Advertisement devices

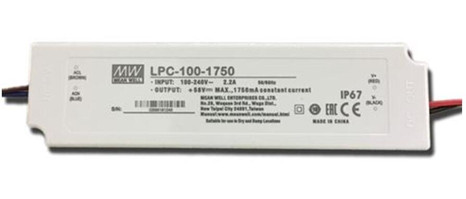

Meanwell LPC-100-1750 price and specs 100w AC/DC LED Driver Power Supply 350/500/700/1050/1400/1750/2100 mA IP67 YCICT

Meanwell LPC-100-1750 Encoding

LPC Series Name
100 Output wattage
1750 Output Current

Meanwell LPC-100-1750 Specifications

Model LPC-100-1750
  RATED CURRENT 1750mA
CURRENT ACCURACY ±5.0%
CONSTANT CURRENT REGION 29-58V
RATED POWER 101.5W
RIPPLE CURRENT ±5.0%
RIPPLE & NOISE 1Vp-p
LINE REGULATION ±1.0%
VOLTAGE TOL ERANCE ±1.5%
SETUP, RISE TIME 1000ms, 80ms / 230VAC 2000ms,80ms/115VAC at full load
HOLD UP TIME (Typ.) 16ms/230VAC 10ms/115vac at full load
Input VOLTAGE RANGE 90 ~ 264VAC 127VDC ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 89.00%
AC CURRENT 2.2 A / 115VAC 1.2A / 230VAC
INRUSH CURRENT(Typ.) COLD START 75A(twidth=980μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER 1 units (circuit breaker of type B) / 2 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT <0.25mA / 240VAC
PROTECTION SHORT CIRCUIT Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 65-80V
Protection type : Shut down and latch off o/p voltage re-power on to recovery
ENVIRONMENT WORKING TEMP. -25 ~ +50 (Refer to "Derating Curve")
WORKING HUMIDITY 10 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS IEC 62368-1;EAC TP TC 004, IP67 , BS EN/EN62368-1 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032(CISPR32) Class B; BS EN/EN61000-3-2 Class A(<=80% load); BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level , EAC TP TC 020
Others MTBF 4121.8K hrs min. Telcordia SR-332 (Bellcore) ; 511.2K hrs min. MIL-HDBK-217F (25)
DIMENSION 190*52*37mm (L*W*H)
PACKING 0.61Kg;20pcs/13.2Kg/0.55CUFT

Meanwell LPC-100-1750 Features

l  Constant current design

l  2 years warranty

l  100% full load burn-in test

l  Low cost, high reliability

l  Universal AC input/full range

l  Withstand 300VAC surge input for 5 seconds

l  High efficiency up to 90%

l  Protections: Short circuit/Over voltage

l  Cooling by free air convection

l  Fully encapsulated with IP67 level

l  Fully isolated plastic case

l  Class Ⅱpower unit, no FG

l  Suitable for LED related fixture or appliance such as LED Decoration or Advertisement devices

Meanwell LPC-100-1750 price and specs 100W AC/DC LED Driver Power Supply 350/500/700/1050/1400/1750/2100 mA IP67 YCICT

Meanwell LPC-100-1750 Mechanical Diagram

Meanwell LPC-100-1750 price and datasheet AC/DC LED Driver Power Supply 350/500/700/1050/1400/1750/2100 mA IP67 YCICT
