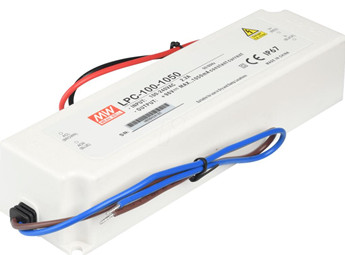

LPC-100-1050
13.82
Details
Meanwell LPC-100-1050 is 100W single output AC/DC LED switching power supply with 1050mA±5.0%48-96V100.8W±5.0%1Vp-p±1.0%±1.5%47~63Hz90.00%. The item outstands constant current design and universal AC input/full range, and offered with output current 1050mA, which LED lighting applications employ most frequently. What’s more, LPC-100-1050 works for the range 90~264VAC, allowing the unit to work perfectly for most of the countries in the world. In addition, the unit is based on class Il (without FG pin) design, housed with the 94V-0 flame retardant plastic case. As the efficiency reaches up to 90%, the model could operate at the ambient temperature between -25℃~+50℃ under air convection. In view of its high efficiency, excellent quality, and low price, Meanwell LPC-100-1050 is ideally suitable for LED related fixture or appliance such as LED Decoration or Advertisement devices
Meanwell LPC-100-1050 Encoding
| LPC | Series Name |
| 100 | Output wattage |
| 1050 | Output Current |
Meanwell LPC-100-1050 Specifications
| Model | LPC-100-1050 | |
| RATED CURRENT | 1050mA | |
| CURRENT ACCURACY | ±5.0% | |
| CONSTANT CURRENT REGION | 48-96V | |
| RATED POWER | 100.8W | |
| RIPPLE CURRENT | ±5.0% | |
| RIPPLE & NOISE | 1Vp-p | |
| LINE REGULATION | ±1.0% | |
| VOLTAGE TOL ERANCE | ±1.5% | |
| SETUP, RISE TIME | 1000ms, 80ms / 230VAC 2000ms,80ms/115VAC at full load | |
| HOLD UP TIME (Typ.) | 16ms/230VAC 10ms/115vac at full load | |
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127VDC ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 90.00% | |
| AC CURRENT | 2.2 A / 115VAC 1.2A / 230VAC | |
| INRUSH CURRENT(Typ.) | COLD START 75A(twidth=980μs measured at 50% Ipeak) at 230VAC | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 1 units (circuit breaker of type B) / 2 units (circuit breaker of type C) at 230VAC | |
| LEAKAGE CURRENT | <0.25mA / 240VAC | |
| PROTECTION | SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed |
| OVER VOLTAGE | 108-120V | |
| Protection type : Shut down and latch off o/p voltage re-power on to recovery | ||
| ENVIRONMENT | WORKING TEMP. | -25 ~ +50℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 10 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | IEC 62368-1;EAC TP TC 004, IP67 , BS EN/EN62368-1 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032(CISPR32) Class B; BS EN/EN61000-3-2 Class A(<=80% load); BS EN/EN61000-3-3, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level , EAC TP TC 020 | |
| Others | MTBF | 4121.8K hrs min. Telcordia SR-332 (Bellcore) ; 511.2K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 190*52*37mm (L*W*H) | |
| PACKING | 0.61Kg;20pcs/13.2Kg/0.55CUFT | |
Meanwell LPC-100-1050 Features
l 2 years warranty
l Low cost, high reliability
l Constant current design
l Fully isolated plastic case
l ClassⅡpower unit, no FG
l 100% full load burn-in test
l Universal AC input/full range
l High efficiency up to 90%
l Cooling by free air convection
l Fully encapsulated with IP67 level
l Protections: Short circuit/Over voltage
l Withstand 300VAC surge input for 5 seconds
l Suitable for LED related fixture or appliance such as LED Decoration or Advertisement devices
Meanwell LPC-100-1050 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
