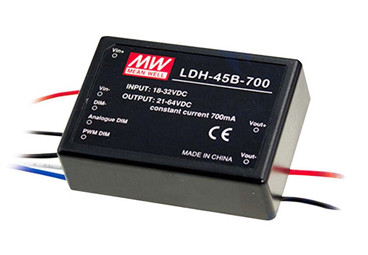

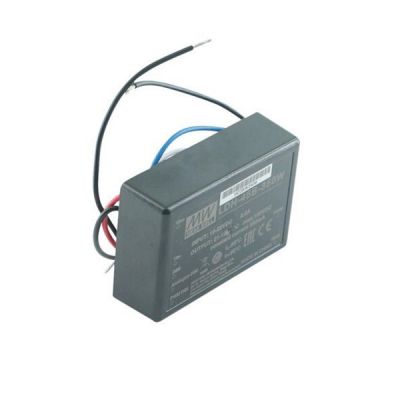

LDH-45B-700
8.81

LDH-45B-700

$8.81

Meanwell DC-DC Step-Up Constant Current LED driver with 700mA21-64VDC36-64VDC75V44.8W1.2Vp-p24VDC18-32VDC95.00%2A

- +
Availability:In stock
SKU Meanwell LDH-45B-700
Brand Meanwell
Details

Meanwell LDH-45B-700 is DC-DC Step-Up LED driver with 700mA21-64VDC36-64VDC75V44.8W1.2Vp-p24VDC18-32VDC95.00%2A. The model highlights constant current output with rated current 700mA. It also has built-in PWM and analog dimming functions, which can realize remote ON/OFF control and adjust output current through external PWM signals or 0.25~1.3VDC analog voltage to meet the diversified energy-saving dimming needs. Since the efficiency reaches high to 95%, and works at -40℃~+70℃ under natural air cooling and heat dissipation conditions. LDH-45B-700 adopts internal glue filling method, enhancing the heat dissipation effect with high waterproof and dustproof capabilities. Furthermore, the input and output have two versions: plug-in type and outlet type, which is convenient for the selection of system design. With built-in EMI filter, the unit can fit the requirements of the EU EN55015 specification without additional electromagnetic interference suppression components. Moreover, it is supplied with various function options such as short-circuit protection, overvoltage protection, input undervoltage protection. As a result of its longevity, high efficiency and excellent quality, Meanwell LDH-45B-700 is an ideally suitable solution for optimal design flexibility for LED lighting system like street lights, landscape lights, tunnel lights, household lighting, etc.

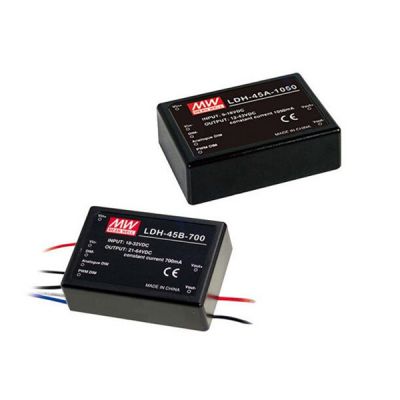

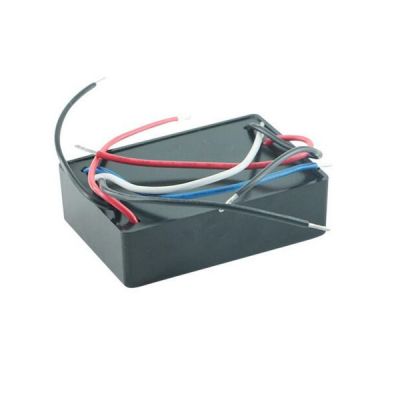

Meanwell LDH-45B-700 price and specs 45w DC-DC Step-Up Constant Current LED DRIVER LDH-45A and LDH-45B series YCICT

Meanwell LDH-45B-700 Specifications

Model LDH-45B-700
OUTPUT RATED CURRENT 700mA
CURRENT ACCURACY (Typ.) ±5% at 24VDC input
VOLTAGE RANGE NON-DALI 21-64VDC
DALI 36-64VDC
NO LOAD OUTPUT VOLTAGE (max.) 75V
RATED POWER 44.8W
RIPPLE & NOISE (max.) 1.2Vp-p
Input RATED VOLTAGE 24VDC
VOLTAGE RANGE 18-32VDC
EFFICIENCY (max) 95.00%
DC CURRENT (Typ) 2A
PWM DIMMING & ON/OFF CONTROL REMOTE ON/OFF Leave open if not used
Power ON with dimming: PWM signal >2~8VDC or open circuit, between PWM DIM and DIM
Power OFF : PWM signal <0.5VDC or short or PWM duty is equal to 0%, between PWM DIM and DIM
PWM DIMMING FREQUENCY 1K~10KHz
QUIESCENT INPUT CURRENT IN SHUTDOWN MODE(Typ.) 7mA when PWM dimming OFF
ANALOG DIMMING & ON/OFF CONTROL REMOTE ON/OFF Leave open if not used
Power on with dimming: DC input>0.25~8VDC or open circuit, between Analog DIM and DIM
Power off : DC input<0.2VDC or short, between Analog DIM and DIMNO
DIM INPUT VOLTAGE RANGE 0.25-1.3VDC
QUIESCENT INPUT CURRENT IN SHUTDOWN MODE (Typ.) 7mA when Analog dimming OFF
PROTECTION SHORT CIRCUIT Protection type : Power OFF and fuse open
OVER VOLTAGE (max.) 75V
Protection type : Constant output voltage and shut off o/p current, recovers automatically after fault condition is removed
ENVIRONMENT WORKING TEMP. -40 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SOLDERING TEMPERATURE Wave soldering: 265,5s (max.); Manual soldering: 390,3s (max.)
EMC SAFETY STANDARDS LVD BS EN/EN61347-1, BS EN/EN61347-2-13, EAC TP TC 004 approved
EMC EMISSION Compliance to BS EN/EN55015;EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61547,BS EN/EN61000-4-2,3,4,6,8; light industry level;EAC TP TC 020
Others MTBF 12195.2K hrs min. Telcordia SR-332 (Bellcore) ; 1179.3K hrs min. MIL-HDBK-217F (25)
DIMENSION 75*53*22.7mm (L*W*H)
PACKING 138g;100pcs/14.8Kg/0.83CUFT[(Blank) type or (Blank) DA type],1.04CUFT(W type or WDA type)

Meanwell LDH-45B-700 Features

l  DC/DC step-up converter

l  Cooling by free air convection

l  Fully encapsulated

l  3 years warranty

l  High efficiency up to 95%

l  Constant current output: 350mA to 1 050mA

l  Wide output LED string voltage up to 126VDC

l  Built. -in EMI filter, comply with BS EN/EN55015 without additional input filter and capacitors

l  PWM + analog dimming and remote ON/OFF control [(Blank) type or W type]

l  DALI dimming [(Blank) DA type or WDA type]

l  Protections: Short circuit 1 Over voltage 1 Under voltage

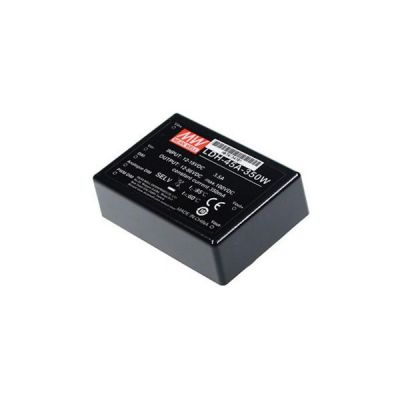

Meanwell LDH-45B-700 price and specs DC-DC Step-Up Constant Current LED DRIVER LDH-45A and LDH-45B series YCICT

Meanwell LDH-45B-700 Mechanical Diagram

Meanwell LDH-45B-700 price and specs DC-DC Step-Up Constant Current LED DRIVER LDH-45A and LDH-45B series YCICT

Meanwell LDH-45B-700 price and specs DC-DC Step-Up Constant Current LED DRIVER LDH-45A and LDH-45B series YCICT
