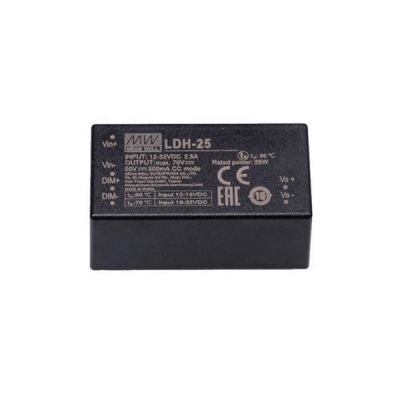

Meanwell LDH-25-700 is 25W DC-DC Step-Up LED drive with 700mA12.5-36VDC25.2W9.5~32VDC92.5%/12V 95.5%/24V2.5A/12VDC1.2A/24VDC37-60V. The model outstands constant current output, and could operate from 9.5~ 32VDC with rated current 700mA. Since the efficiency reaches high up to 95.5% with 94V-0 flame retardant plastic case, and fully-potted silicone enhances the heat dissipation. They allow the product to satisfy solar LED street light. Besides them, the unit is provided with various function options such as dimming methodologies. In view of its long lifetime, high efficiency and excellent quality, Meanwell LDH-25-700 is an ideally suitable solution for the optimal design flexibility for DC source LED lighting system.

Meanwell LDH-25-700 price and datasheet DC-DC Step-Up Constant Current LED driver Pin mounted and Lead wire style YCICT

Meanwell LDH-25-700 Encoding

LDH Series Name
25 Rated Wattage
700 Output Current ( 250/350/500/700mA)
W Blank: Pin mounted Style
W: Lead Wire Style

Meanwell LDH-25-700 Specifications

Model LDH-25-700
OUTPUT RATED CURRENT 700mA
CURRENT ACCURACY (Typ.) ±5% at 12VDC input and 24 VDC Input
VOLTAGE RANGE 12.5-36VDC
RATED POWER 25.2W
CURRENT RIPPLE 5%( at rated current)
Input VOLTAGE RANGE 9.5~32VDC
EFFICIENCY (Typ) 92.5%/12V 95.5%/24V
DC CURRENT (Typ) 2.5A/12VDC, 1.2A/24VDC
DIMMING DIMMING FUNCTION Leave open if not used
1KHz-3KHz 10V PWM signal or 0-10V DC input
QUIESCENT INPUT CURRENT
IN SHUTDOWN MODE(Typ.)
7mA when PWM dimming OFF at12VDC
PROTECTION SHORT CIRCUIT Output short circuit, the power supply will be damaged
OVER VOLTAGE 37-60V
NO LOAD Output voltage rise to OVP, and drop equal to input voltage, re-power to recovery
ENVIRONMENT WORKING TEMP. -40 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SOLDERING TEMPERATURE Wave soldering: 265,5s (max.); Manual soldering: 390,3s (max.)
EMC SAFETY STANDARDS LVD BS EN/EN61347-1, BS EN/EN61347-2-13, EAC TP TC 004 approved
EMC EMISSION Compliance to BS EN/EN55015;EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61547,BS EN/EN61000-4-2,3,4,6,8; light industry level,EAC TP TC 020
Others MTBF 12369.5K hrs min. Telcordia TR/SR-332(Bellcore); 896.4Khrs min. MIL-HDBK-217F (25)
DIMENSION 52.4*27.2*24mm (L*W*H)
PACKING Pin mounted style: 50g, 200pcs/11Kg/0.89CUFT; Lead wire style: 57g, 200pcs/12.4kg/0.98CUFT

Meanwell LDH-25-700 Features

l  3 years warranty

l  Fully encapsulated

l  DC/DC step-up converter

l  High efficiency up to 95.5%

l  Cooling by free air convection

l  2 in1dimming (0- 10V, PWM)

l  Protections: Short circuit/Over voltage

l  Wide DC input voltage operation 9.5~32V

l  Constant current output: 250mA to 700mA

l  Wide output LED forward voltage up to 84VDC
