LDD-500H
5.17

LDD-500H

$5.17

Meanwell DC-DC Constant Current Step-Down LED driver with 500mA2-52VDC150mVp-p40KHz~1000KHz2.2uF9~56VDC47~63Hz450mA5mA

- +
Availability:In stock
SKU Meanwell LDD-500H
Brand Meanwell
Details

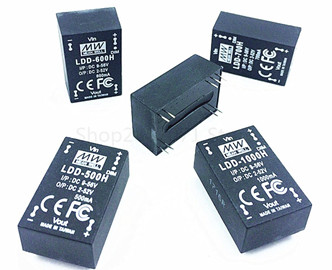

Meanwell LDD-500H is DC-DC Constant Current Step-Down LED driver with 500mA2-52VDC150mVp-p40KHz~1000KHz2.2uF9~56VDC47~63Hz450mA5mA. It is designed in compact size from 9~ 56VDC with rated current 500mA. At the same time, the efficiency reaches high to 97%, and work at -40℃~+70℃ under natural air cooling and heat dissipation conditions. Based on Built-in EMI filter and PWM and remote ON/OFF control, LDD-500H complies with BS EN/EN55015 and FCC part15 without additional input filter and capacitors. Apart from them, the item is provided with various protections such as Short circuit and Over temperature. LDD, LDB, LDH series are all DC-DC constant current output LED drivers, LDD is step-down type, LDH is step-up type, and LDB is buck-boost type model. The packaging forms have three forms: pin type, lead type and SMD chip type, which is convenient for various application scenarios. In light of its long lifetime, high reliability and low cost, Meanwell LDD-500H is an ideally suitable solution for driving illumination LED.

Meanwell LDD-500H price and specs LDD-300H LDD-350H LDD-500H LDD-600H LDD-700H LDD-1000H LDD-1200H LDD-1500H 500mA YCICT

Meanwell LDD-500H Model Specifications

LDD-350H-W LDD-1200H w
Blank: Pin Style Blank: Pin Style
W: Wire Style W: Wire Style
S: SMD Style
ORDER NO. LDD-500H
OUTPUT CURRENT RANGE 500mA
VOLTAGE RANGE 2-52VDC
CURRENT ACCURACY (Typ.) ±3% at 24VDC input ; ±4% at 48VDC input for LDD-H/HW ; ±5% for LDD-HS
RIPPLE & NOISE (max.) 150mVp-p
SWITCHING FREQENCY 40KHz ~ 1000KHz
EXTERNAL CAPACITANCE LOAD (max) 2.2uF
Input VOLTAGE RANGE 9 ~ 56VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (max.) 97% at full load and 36VDC/48VDC input for LDD-H/HW ; 96% at full load and 36VDC/48VDC input for LDD-HS
DC CURRENT Full load 450mA
DC CURRENT No load 5mA
FILTER Capacitor
PWM DIMMING & ON/OFF CONTROL REMOTE ON/OFF Leave open if not use
Power ON with dimming: DIM ~ -Vin >2.5 ~ 6VDC or open circuit
Power OFF : DIM ~ -Vin < 0.8VDC or short
PWM FREQUENCY 100 ~ 1KHz
QUIESCENT INPUT CURRENT IN SHUTDOWN MODE (max.) 1mA at PWM dimming OFF and 24VDC input
PROTECTION SHORT CIRCUIT Regulated at rated output current
Protection type: Can be continued, recovers automatically after fault condition is removed
OVER TEMPERATURE Tj 150typically(IC1) detect on main control IC
Protection type : Shut down, recovers automatically after temperature goes down
ENVIRONMENT WORKING TEMP. -40 ~ + 85(Refer to derating curve)
WORKING HUMIDITY 20% ~ 90% RH non-condensing for LDD-H/HW ; 20%~85% RH non-condensing for LDD-HS
STORAGE TEMP., HUMIDITY -55 ~ +125, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03% /
VIBRATION 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes
OPERATING CASE TEMP. (max.) 100
EMC SAFETY STANDARDS EAC TP TC 020/2011 approved
EMC EMISSION Compliance to BS EN/EN55015, FCC part 15 class B, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,6,8, light industry level, criteria A, EAC TP TC 020
Others MTBF 1000Khrs min. MIL-HDBK-217F (25)
DIMENSION 31.8*20.3*12.2mm or 1.25"*0.8"*0.48" inch (L*W*H) for LDD-H/HW ; 31.8*20.3*11.4mm or 1.25"*0.8"*0.45" inch (L*W*H) for LDD-HS
WEIGHT LDD-H:15.6g ; LDD-HW:18g ; LDD-HS:12.8g
POTTING MATERIAL Expoxy(UL94-V0) for LDD-H/HW ; without potted for LDD-HS

Meanwell LDD-500H Features

l  DC/DC step-down converter

l  Constant current output: 300mA to 1500mA

l  Wide input voltage:9 ~ 56VDC

l  Wide output LED string voltage: 2 ~ 52VDC

l  High efficiency up to 97%

l  Built-in EMI filter, comply with BS EN/EN55015 and FCC part15 withoutadditional input filter and capacitors

l  Built-in PWM and remote ON/OFF control

l  Protections: Short circuit/ Over temperature

l  Cooling by free air convection

l  Fully encapsulated with IP67 level for pin and wire style

l  Non-potted, optional conformal coating for SMD style (Order No.: LDD-350- 1000! HSC)

l  Compact size

l  Low cost, high reliability

l  Suitable for driving illumination LED

l  3 years warranty

Meanwell LDD-500H price and specs LDD-300H LDD-350H LDD-500H LDD-600H LDD-700H LDD-1000H LDD-1200H LDD-1500H 500mA YCICT

Meanwell LDD-500H Mechanical Diagram

Meanwell LDD-500H price and datasheet LDD-300H LDD-350H LDD-500H LDD-600H LDD-700H LDD-1000H LDD-1200H LDD-1500H YCICT

Meanwell LDD-500H price and specs 500mA LDD-300H LDD-350H LDD-500H LDD-600H LDD-700H LDD-1000H LDD-1200H LDD-1500H YCICT
