SKU Meanwell IRM-01-9
Brand Meanwell
Details

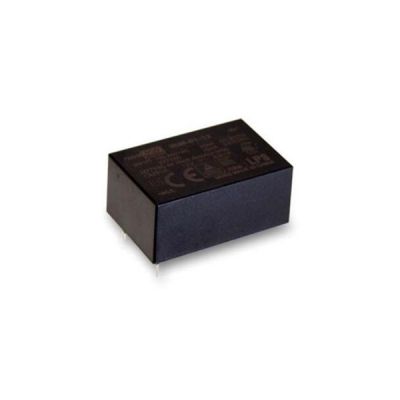

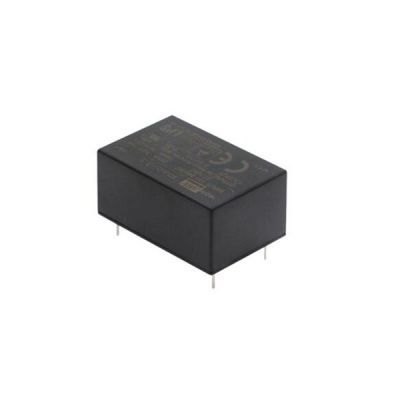

Meanwell IRM-01-9 is a 1W miniature (33.7*22.2*15mm) AC-DC module-type power supply with 9V111mA0-111mA1W150mVp-p. It is ready to be soldered onto the PCB boards of various types of electronic instruments or industrial automation equipment. The item also accepts a universal input voltage range of 85~305V AC. The phenolic case and the fully-potted silicone improve the heat dissipation and meet the anti-vibration demand up to 5G. Apart from them, IRM-01-9 provides the fundamental resistance to dust and moisture. With the high efficiency up to 77% and the extremely low no-load power consumption below 0.075W, Meanwell IRM-O1-9 fulfills the worldwide regulation for the low power consumption requirement for electronics. As the unit is a Class Ⅱ design (no FG pin), it incorporates the built-in EMI filtering components, and enables the compliance with BS EN/EN55032 Class B. The supreme EMC features keep the end electronic units from electromagnetic interference. Except for module-type model, IRM-01-9 also provides the SMD style model. Considering its high reliability, low cost and longevity, Meanwell IRM-01-9 is very suitable for various Industrial electrical applications.

Meanwell IRM-01-9

Meanwell IRM-01-9 Encoding

IRM Series Name
01 Output Wattage
9 Output Voltage
S Blank: PCB mounting Style
S: SMD Style

Meanwell IRM-01-9 Specifications

Model IRM-01-9
OUTPUT DC VOLTAGE 9V
RATED CURRENT 111mA
CURRENT RANGE 0-111mA
RATED POWER 1W
RIPPLE & NOISE (max.) 150mVp-p
VOLTAGE TOL ERANCE  ±2.5%
LINE REGULATION ±0.5%
LOAD REGUL .ATION ±0.5%
SETUP, RISE TIME 600ms, 30ms/230VAC 600ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.) 40ms/230VAC 12ms/115VAC at full load
INPUT VOLTAGE RANGE 85 ~ 305VAC 120 ~ 430VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 72%
AC CURRENT (Typ.) 25mA/115VAC 18mA/230VAC 16mA/277VAC
INRUSH CURRENT(Typ.) 5A/115VAC 10A/230VAC
LEAKAGE CURRENT < 0.25mA/277VAC
PROTECTION OVERL OAD ≥110% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 10.3-12.2V
Protection type : Shut off o/p voltage, clamping by zener diode
ENVIRONMENT WORKING TEMP. -30 ~ +85(Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +100, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/(0 ~ 60)
VIBRATION 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
LEAD TEMPERATURE 260,10s (max.)
SAFETY & EMC SAFETY STANDARDS Note.6,9 UL62368-1, TUV BS EN/EN62368-1, , BSMI CNS14336-1 approved BS EN/,EAC TP TC 004 Design refer to EN61558-1/-2-16
WITHSTAND VOLTAGE I/P-O/P:3KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS13438 Class B
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, heavy industry level (surge L-N : 1KV), criteria A, EAC TP TC 020
OTHERS MTBF 1960Khrs min. MIL-HDBK-217F (25)
DIMENSION PCB mounting style : 33.7*22.2*15mm (L*W*H) SMD style : 33.7*22.2*16mm (L*W*H)
PACKING PCB mounting style : 0.024Kg; 640pcs/ 16.3 Kg/ 0.84CUFT SMD style : 0.024Kg; 640 pcs/ 16.3 Kg/ 0.84CUFT

Meanwell IRM-01-9 Features

l  Compact size

l  Isolation Class II

l  High reliability, low cost

l  3 years warranty

l  Universal AC input/Full range

l  Cooling by free air convection

l  No load power consumption<0.07 5W

l  Protections: Short circuit/Overload/Over voltage

l  Comply with BS EN/EN55032 Class B without any additional components

Meanwell IRM-01

Meanwell IRM-01-9 Applications

l  Industrial electrical equipment

l  Mechanical equipment

l  Factory automation equipment

l  Handheld electronic device

Meanwell IRM-01-9 Mechanical Diagram

Meanwell IRM-01-9 Mechanical DiagramMeanwell IRM-01-9 Mechanical Diagram
