IRC3
15.72
Details

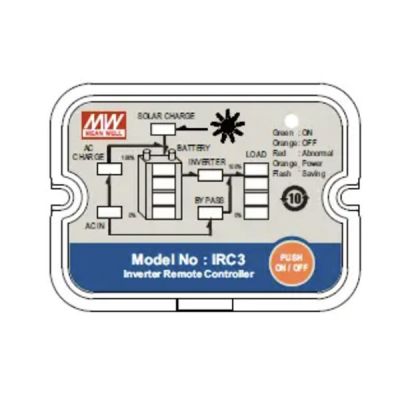

Meanwell IRC3 is a monitoring and control unit used for the inverter series. The item can decode the RS-232 signal sent by inverter series and display through digital meters. Apart from them, IRC3 can turn ON/OFF of inverter remotely that make the basic control more easily.
Meanwell IRC3 Specifications

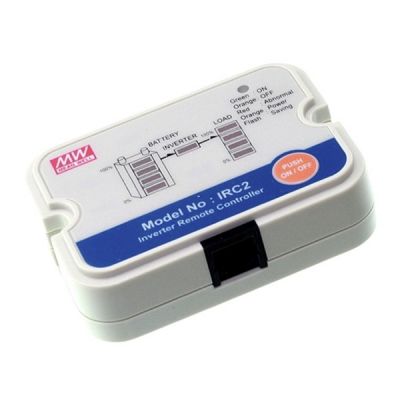

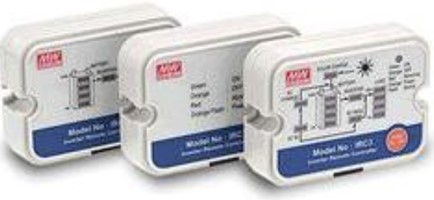

| MODEL | IRC1 | IRC2 | IRC3 | |
| OUTPUT | DIGITAL METER | ---- | Display the battery level, output load level, and operating status of inverter unit | |
| CONTROL OUTPUT | Remote ON/OFF for inverter unit | |||
| LED INDICATOR | Remote turn ON(Green); Remote turn Off (Orange) ; Abnormal (Red) ; Saving mode (Orange flash) | |||
| FUNCTION | REMOTE ON/OFF CONTROL | The controlled inverter unit can be turned ON/OFF on the remote control panel for IRC1 / IRC2 / IRC3 | ||
| SUITABLE SERIES | Power saving enable / disable activation | |||
| POWER SAVING CONTROL | TS-700/1000/1500/3000 TN-1500/3000 NTS-750/1200/1700/2200/3200 NTU-1200/1700/2200/3200 |
TS-700/1000/1500/3000 NTS-750/1200/1700/2200/3200 NTU-1200/1700/2200/3200 |
TN-1500/3000 NTS-750/1200/1700/2200/3200 NTU-1200/1700/2200/3200 |
|
| ENVIRONMENT | WORKING TEMP. | -20 ~ +50℃ | ||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |||
| EMC | EMC EMISSION | Compliance to BS EN/EN55032 class A, BS EN/EN61000-3-2,3, FCC PART 15 class A | ||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,6,8, BS EN/EN55035 | |||
| OTHERS | MTBF | 4352.7 / 858.7 / 632.9K hrs min. Telcordia SR-332 (Bellcore) ; 807.1 / 746.6 / 722.5K hrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | 75*55*21mm (L*W*H) | |||
| PACKING | 0.26Kg; 24pcs/7.3Kg/1.75CUFT | |||
Meanwell IRC3 Features
l 3 years warranty
l Built-in ON/OFF button
l Wall-mount and control panel acceptable
l LED indicators for remote ON/OFF, abnormal and power saving mode
l Remote panel with 10FT cable length, optional for 25FT or 50FT
l Connect directly to the remote socket of inverter, no power supply needed
l Digital meters for battery level, output load level, and operating status on remote control panel
Meanwell IRC3 Mechanical Diagram
