HVGC-65-700
35.26

HVGC-65-700

$35.26

Meanwell 65W Constant Current Mode LED Driver with 700mA65.1W9-93V420-700mA±5.0%180~528VAC254VDC~747VDC47~63Hz

- +
Availability:In stock
SKU Meanwell HVGC-65-700
Brand Meanwell
Details

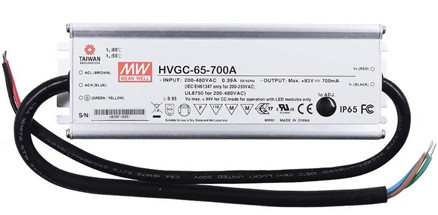

Meanwell HVGC-65-700 is 65W AC/DC LED power supply with 700mA65.1W9-93V420-700mA±5.0%180~528VAC254VDC~747VDC47~63Hz. The model outstands constant current mode and high voltage output, can work from 180~528VAC. It is equipped with rated current 700mA. Since the efficiency reaches high up to 90.5% via fanless design, HVGC-65-700 is able to operate for -40℃ ~ +80℃ case temperature under free air convection. Apart from them, the metal housing design and lP67/lP65 ingress protection level make it possible to satisfy both indoor and outdoor applications. Moreover, the product is provided with various function options such as dimming methodologies. In light of its longevity, high reliability and excellent quality, Meanwell HVGC-65-700 is an ideally suitable solution for the optimal design flexibility for LED lighting system.

Meanwell HVGC-65-700 price and specs Constant Current ac dc LED Driver Power supply HVGC-65-700 A B AB D IP65 IP67 YCICT

Meanwell HVGC-65-700 Encoding

HVGC Series Name
65 Rated Wattage
700 Rated Output Current (350/500/700/1050)
A Function options
Type IP Level Function Note
A IP65 lo adjustable through built-in potentiometer In stock
B IP67 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) In stock
AB IP65 lo adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) In Stock
D IP67 Timer dimming function, contact MEAN WELL for details (safety pending) By Request

Meanwell HVGC-65-700 Specifications

Model HVGC-65-700
OUTPUT RATED CURRENT 700mA
RATED POWER 65.1W
CONSTANT CURRENT REGION 9-93V
CURRENT ADJ. RANGE Adjustable for A/AB-Type only (via the built-in potentiometer)
420-700mA
CURRENT RIPPLE 5.0% max. at rated current
CURRENT TOLERANCE ±5.0%
CURRENT RIPPLE 5.0% max. at rated current
SET UP TIME 500ms / 230Vac 400ms / 347VAC,480VAC
Input VOLTAGE RANGE 180 ~ 528VAC 254VDC ~ 747VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF>=0.98/230VAC, PF>=0.97/277VAC, PF>=0.95/347VAC, PF>=0.93/480VAC at full load
TOTAL HARMONIC DISTORTION THD< 20% (at load>=60%/230VAC, 277VAC, 347VAC; at load>=75%/480VAC)
EFFICIENCY (Typ.) 90.50%
AC CURRENT (Typ.) 0.22A / 347VAC 0.18A / 480VAC
INRUSH CURRENT(Typ.) COLD START 25A(twidth=420μ s measured at 50% Ipeak) at 480VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER 12 units (circuit breaker of type B) / 20 units (circuit breaker of type C) at 480VAC
LEAKAGE CURRENT <0.75mA / 480VAC
PROTECTION SHORT CIRCUIT Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE 98-107V
Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT WORKING TEMP. Tcase=-40 ~ +80(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP Tcase=+80
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 60)
VIBRATION 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL8750, CSA C22.2 No. 250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384, independent, EAC TP TC 004, IP65 or IP67 approved
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (at load>=60%) ; BS EN/EN61000-3-3, FCC Part 15 Subpart B, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020
Others MTBF 2164.4K hrs min. Telcordia SR-332 (Bellcore) ; 202.8K hrs min. MIL-HDBK-217F (25)
DIMENSION 189*61.5*36.8mm (L*W*H)
PACKING 0.77Kg; 18pcs/14.9Kg/0.89CUFT

Meanwell HVGC-65-700 Features

l  5 years warranty

l  Built-in active PFC function

l  Typical lifetime> 50000 hours

l  Wide input range 180 ~ 528VAC

l  Constant Current mode output

l  Metal housing with Class I design

l  IP67/IP65 design for indoor or outdoor installations

l  Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Timer dimming

Meanwell HVGC-65-700 price and specs Constant Current 65w LED Driver Power supply HVGC-65-700 A B AB D IP65 IP67 YCICT

Meanwell HVGC-65-700 Applications

l  LED street lighting

l  LED high-bay lighting

l  Parking space lighting

l  LED fishing lamp

Meanwell HVGC-65-700 Mechanical Diagram

Meanwell HVGC-65-700 price and specs Constant Current ac dc LED Driver Power supply HVGC-65-700 A B AB D IP65 IP67 YCICT

Meanwell HVGC-65-700 price and specs Constant Current ac dc LED Driver Power supply HVGC-65-700 A B AB D IP65 IP67 YCICT
