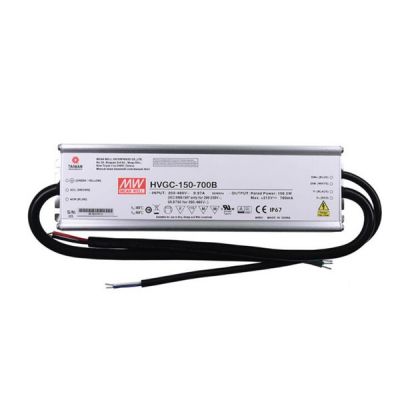

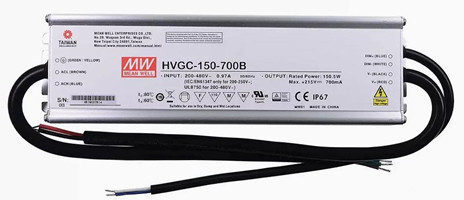

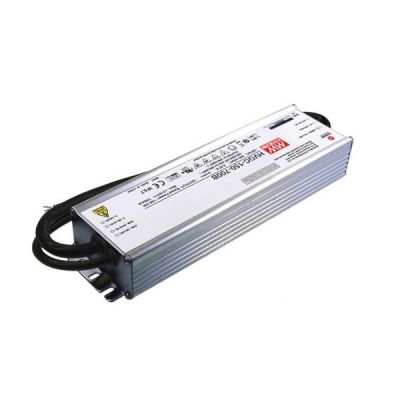

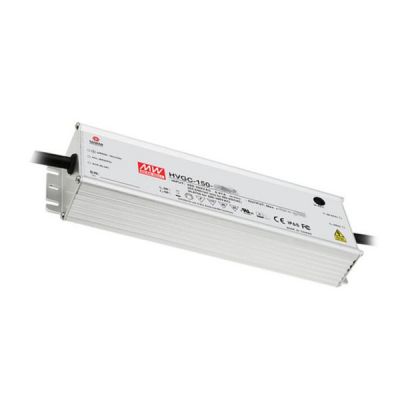

HVGC-150-700
47.51
Details
Meanwell HVGC-150-700 is 150W AC/DC LED power supply with 700mA150.5W21-215V420-700mA±5.0%180~528VAC254VDC~747VDC47~63Hz. The unit provides constant current mode and high voltage output, and works from 180~528VAC. It is also equipped with rated current 700mA. The model has four types: A B AB D IP65 and IP67 respectively. As the efficiency reaches high up to 91% under fanless design, HVGC-150-700 is able to operate for -40℃ ~ +80℃ case temperature through free air convection. Apart from them, the metal design housing and IP67/IP65 ingress protection level make it possible to fit both indoor and outdoor applications. What’s more, the item is supplied with various function options such as dimming methodologies. In view of its longevity, high reliability and excellent quality, Meanwell HVGC-150-700 is an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell HVGC-150-700 Encoding
| HVGC | Series Name |
| 150 | Rated Wattage |
| 700 | Rated Output Current (350/500/700/1050/1400mA) |
| A | Function options |
| Type | IP Level | Function | Note |
| A | IP65 | lo adjustable through built-in potentiometer | In stock |
| B | IP67 | 3 in1dimming function (0~10Vdc, 10V PWM signal and resistance) | In stock |
| AB | IP65 | lo adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) | In Stock |
| D | IP67 | Timer dimming function, contact MEAN WELL for details (safety pending) | By Request |
Meanwell HVGC-150-700 Specifications
| Model | HVGC-150-700 □ | |
| OUTPUT | RATED CURRENT | 700mA |
| RATED POWER | 150.5W | |
| CONSTANT CURRENT REGION | 21-215V | |
| CURRENT ADJ. RANGE | Adjustable for A/AB-Type only (via built-in potentiometer) | |
| 420-700mA | ||
| CURRENT RIPPLE | 8.0% max. @rated current | |
| CURRENT TOLERANCE | ±5.0% | |
| SET UP TIME | 500ms / 230Vac 400ms / 347VAC,480VAC | |
| Input | VOLTAGE RANGE | 180 ~ 528VAC 254VDC ~ 747VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>=0.98/230VAC, PF>=0.97/277VAC, PF>=0.95/347VAC, PF>=0.93/480VAC at full load | |
| TOTAL HARMONIC DISTORTION | THD< 20%(at load>=50%/230VAC, 277VAC, 347VAC; at load>=75%/480VAC) | |
| EFFICIENCY (Typ.) | 91.00% | |
| AC CURRENT (Typ.) | 0.5A / 347VAC 0.38A / 480VAC | |
| INRUSH CURRENT(Typ.) | COLD START 35A(twidth=790μ s measured at 50% Ipeak) at 480VAC; Per NEMA 410 | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 4 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 480VAC | |
| LEAKAGE CURRENT | <0.75mA / 480VAC | |
| PROTECTION | SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed |
| OVER VOLTAGE | 226-247V | |
| Shut down o/p voltage with auto-recovery or re-power on to recovery | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| ENVIRONMENT | WORKING TEMP. | Tcase=-40 ~ +80℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section) |
| MAX. CASE TEMP | Tcase=+80℃ | |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL8750(type”HL”), CSA C22.2 No. 250.0-08, TUV BS EN/EN61347-1, BS EN/EN61347-2-13, EAC TP TC 004, IP65 or IP67 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (at load>=50%) ; BS EN/EN61000-3-3, FCC part 15 class B, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020 | |
| Others | MTBF | 1755.7K hrs min. Telcordia SR-332 (Bellcore) ; 179.5K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 245*68*38.8mm (L*W*H) | |
| PACKING | 1.24Kg; 12pcs/15.9Kg/0.78CUFT | |
Meanwell HVGC-150-700 Features
l Built-in active PFC function
l Typical lifetime> 50000 hours
l 5 years warranty
l Wide input range 180 ~ 528VAC
l Constant Current mode output
l Metal housing with Class I design
l IP67/IP65 design for indoor or outdoor installations
l Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Timer dimming
Meanwell HVGC-150-700 Applications
l LED street lighting
l LED high-bay lighting
l Parking space lighting
l LED fishing lamp
l Type HL" for use in Class I, Division 2 hazardous (Classified) location
Meanwell HVGC-150-700 Mechanical Diagram
