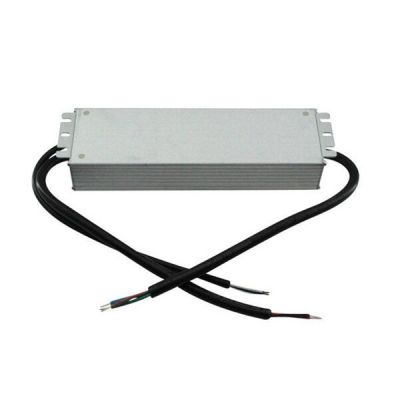

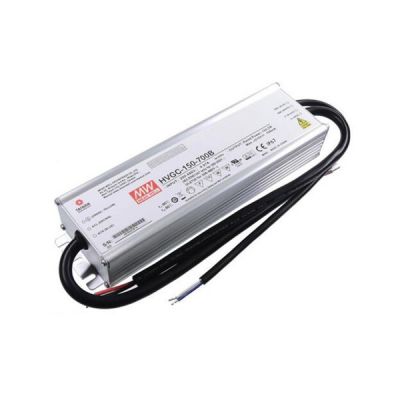

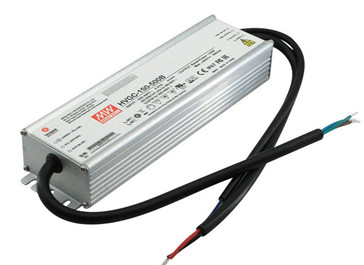

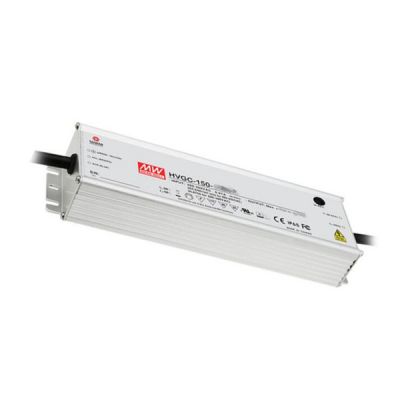

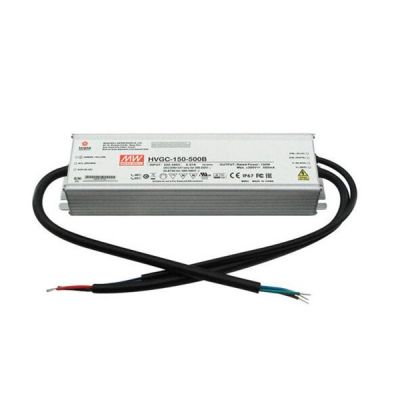

HVGC-150-500
47.26
Details
Meanwell HVGC-150-500 is 150W AC/DC LED power supply with 500mA150W30-300V300-500mA±5.0%180~528VAC254VDC~747VDC47~63Hz. The item stands out with constant current mode and high voltage output. Meanwhile, it works from 180~528VAC with rated current 500mA. The model has four types: A B AB D IP65 and IP67 respectively. Since the efficiency reaches high up to 91% under fanless design, HVGC-150-500 is able to operate for -40℃ ~ +80℃ case temperature through free air convection. Additionally, the metal design housing and IP67/IP65 ingress protection level permit it to satisfy both indoor and outdoor applications. Moreover, the product is provided with various function options such as dimming methodologies. In light of its longevity, high reliability and excellent quality, Meanwell HVGC-150-500 is an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell HVGC-150-500 Encoding
| HVGC | Series Name |
| 150 | Rated Wattage |
| 500 | Rated Output Current (350/500/700/1050/1400mA) |
| A | Function options |
| Type | IP Level | Function | Note |
| A | IP65 | lo adjustable through built-in potentiometer | In stock |
| B | IP67 | 3 in1dimming function (0~10Vdc, 10V PWM signal and resistance) | In stock |
| AB | IP65 | lo adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) | In Stock |
| D | IP67 | Timer dimming function, contact MEAN WELL for details (safety pending) | By Request |
Meanwell HVGC-150-500 Specifications
| Model | HVGC-150-500 □ | |
| OUTPUT | RATED CURRENT | 500mA |
| RATED POWER | 150W | |
| CONSTANT CURRENT REGION | 30-300V | |
| CURRENT ADJ. RANGE | Adjustable for A/AB-Type only (via built-in potentiometer) | |
| 300-500mA | ||
| CURRENT RIPPLE | 8.0% max. @rated current | |
| CURRENT TOLERANCE | ±5.0% | |
| SET UP TIME | 500ms / 230Vac 400ms / 347VAC,480VAC | |
| Input | VOLTAGE RANGE | 180 ~ 528VAC 254VDC ~ 747VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>=0.98/230VAC, PF>=0.97/277VAC, PF>=0.95/347VAC, PF>=0.93/480VAC at full load | |
| TOTAL HARMONIC DISTORTION | THD< 20%(at load>=50%/230VAC, 277VAC, 347VAC; at load>=75%/480VAC) | |
| EFFICIENCY (Typ.) | 91.00% | |
| AC CURRENT (Typ.) | 0.5A / 347VAC 0.38A / 480VAC | |
| INRUSH CURRENT(Typ.) | COLD START 35A(twidth=790μ s measured at 50% Ipeak) at 480VAC; Per NEMA 410 | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 4 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 480VAC | |
| LEAKAGE CURRENT | <0.75mA / 480VAC | |
| PROTECTION | SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed |
| OVER VOLTAGE | 316-346V | |
| Shut down o/p voltage with auto-recovery or re-power on to recovery | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| ENVIRONMENT | WORKING TEMP. | Tcase=-40 ~ +80℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section) |
| MAX. CASE TEMP | Tcase=+80℃ | |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL8750(type”HL”), CSA C22.2 No. 250.0-08, TUV BS EN/EN61347-1, BS EN/EN61347-2-13, EAC TP TC 004, IP65 or IP67 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (at load>=50%) ; BS EN/EN61000-3-3, FCC part 15 class B, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020 | |
| Others | MTBF | 1755.7K hrs min. Telcordia SR-332 (Bellcore) ; 179.5K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 245*68*38.8mm (L*W*H) | |
| PACKING | 1.24Kg; 12pcs/15.9Kg/0.78CUFT | |
Meanwell HVGC-150-500 Features
l 5 years warranty
l Constant Current mode output
l Metal housing with Class I design
l Built-in active PFC function
l Wide input range 180 ~ 528VAC
l Typical lifetime> 50000 hours
l IP67/IP65 design for indoor or outdoor installations
l Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Timer dimming
Meanwell HVGC-150-500 Applications
l LED street lighting
l LED high-bay lighting
l Parking space lighting
l LED fishing lamp
l Type HL" for use in Class I, Division 2 hazardous (Classified) location
Meanwell HVGC-150-500 Mechanical Diagram
