HVG-240-42
48.94
Details

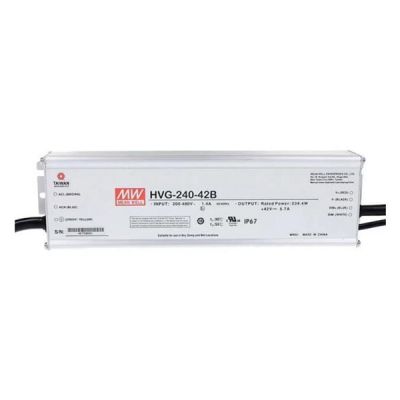

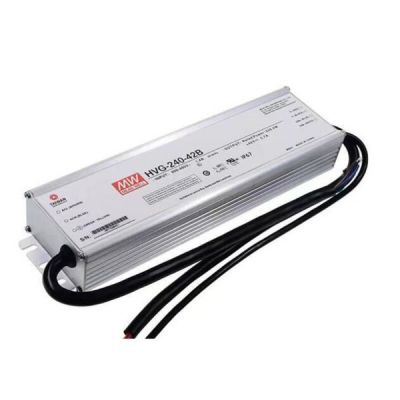

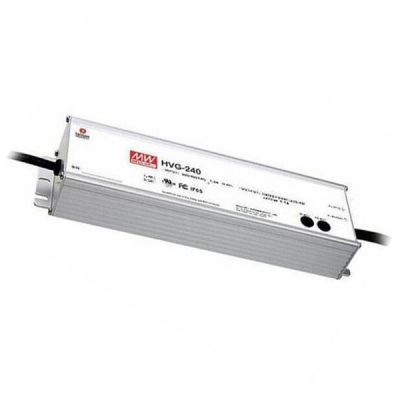

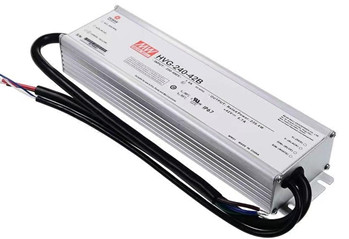

Meanwell HVG-240-42 is a 240W AC/DC LED power supply with 42V21-42V5.7A239.4W250Vp-p39-45V2.85-5.7A±1.0%±0.5%±0.5%. It offers dual mode constant voltage and constant current output. And meanwhile, it could operate from 180~528VAC and offered with rated voltage 42V. Since the efficiency reaches high up to 93% under no fan design, HVG-240-42 is able to work for-40℃ ~ +90℃ case temperature via free air convection. Apart from them, the metal housing design and IP67/IP 65 ingress protection level allow it to satisfy both indoor and outdoor applications. What’s more, the unit is equipped with various function options such as dimming methodologies. As a result of its long lifetime, high quality and excellent reliability, Meanwell HVG-240-42 is an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell HVG-240-42 Encoding
| HVG | Series Name |
| 240 | Rated Wattage |
| 42 | Rated Output Voltage (24/30/36/42/48/54v) |
| A | Function options |
| Type | IP Level | Function | Note |
| A | IP65 | lo and Vo adjustable through built-in potentiometer | In stock |
| B | IP67 | 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance ) | In stock |
| AB | IP65 | lo and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (o~10Vdc, 10V PWM signal and resistance) | In Stock |
| Dx | IP67 | Built-in Smart timer dimming function by user request. | By Request |
| D2 | IP67 | Built-in Smart timer dimming and programmable function | By Request |
Meanwell HVG-240-42 Specifications
| Model | HVG-240-42□ | |
| OUTPUT | DC VOLTAGE | 42V |
| CONSTANT CURRENT REGION | 21-42V | |
| RATED CURRENT | 5.7A | |
| RATED POWER | 239.4W | |
| RIPPLE & NOISE (max.) | 250Vp-p | |
| VOLTAGE ADJ. RANGE | Adjustable for A/AB-Type only (via the built-in potentiometer) | |
| 39-45V | ||
| CURRENT ADJ. RANGE | Adjustable for A/AB-Type only (via the built-in potentiometer) | |
| 2.85-5.7A | ||
| VOLTAGE TOLERANCE | ±1.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME | 500ms, 150ms /230VAC, 347VAC, 480VAC | |
| HOLD UP TIME (Typ.) | 12ms/347VAC, 480VAC | |
| Input | VOLTAGE RANGE | 180 ~ 528VAC 254VDC ~ 747VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR | PF>=0.98/230VAC, PF>=0.97/277VAC, PF>=0.95/347VAC, PF>=0.93/480VAC at full load | |
| TOTAL HARMONIC DISTORTION | THD< 20%(at load>=50%/230VAC, 277VAC, 347VAC, at load>=60%/480VAC | |
| EFFICIENCY (Typ.) | 93.00% | |
| AC CURRENT | 0.8A / 347VAC 0.6A / 480VAC | |
| INRUSH CURRENT (Typ. ) | COLD START 50A(twidth=532μ s measured at 50% Ipeak) at 480VAC; Per NEMA 410 | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 4unit(circuit breaker of type B) / 6units(circuit breaker of type C) at 480VAC | |
| LEAKAGE CURR ENT | <0.75mA / 480VAC | |
| PROTECTION | OVER CURRENT | 95 ~ 108% |
| Constant current limiting, recovers automatically after fault condition is removed | ||
| SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed | |
| OVER VOLTAGE | 48-54V | |
| Shut down and latch off o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down and latch off o/p voltage, re-power on to recover | |
| ENVIRONMENT | WORKING TEMP | Tcase=-40 ~ +90℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section) |
| MAX. CASE TEMP. | Tcase=+90℃ | |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL8750 (type”HL”), CSA C22.2 No. 250.13-12, EAC TP TC 004, IP65 or IP67 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to FCC Part 15 Subpart B,EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020 | |
| Others | MTBF | 1704.5K hrs min. Telcordia SR-332(Bellcore) ; 141.9K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 254.2*68*38.8mm (L*W*H) | |
| PACKING | 1.31Kg; 12pcs/15.7Kg/0.78CUFT | |
Meanwell HVG-240-42 Features
l 5 years warranty
l Built-in active PFC function
l Typical lifetime> 50000 hours
l Wide input range 180 ~ 528VAC
l Metal housing with Class I design
l Constant Voltage + Constant Current mode output
l IP67 1 IP65 rating for indoor or outdoor installations
l Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming
Meanwell HVG-240-42 Applications
l LED street lighting
l LED high-bay lighting
l Parking space lighting
l LED fishing lamp
l LED greenhouse lighting
l Type "HL" for use in Class I, Division 2 hazardous (Classified) location
Meanwell HVG-240-42 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
