HRP-200-3.3
55.02

HRP-200-3.3

$55.02

Meanwell 200W Single Output with PFC Function and 3.3V40A0-40A132W80 mVp-p2.8-3.8V±2.0%±0.5%±1.5%

- +
Availability:In stock
SKU Meanwell HRP-200-3.3
Brand Meanwell
Details

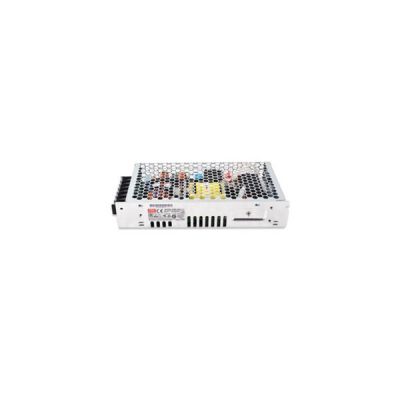

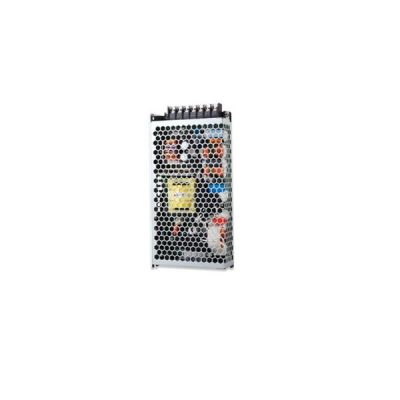

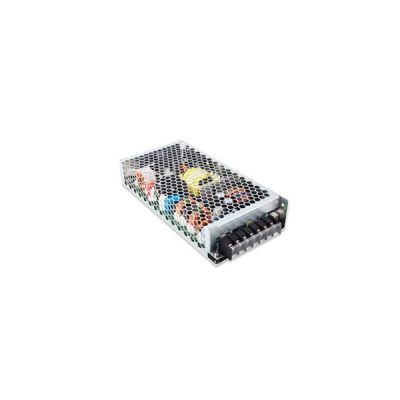

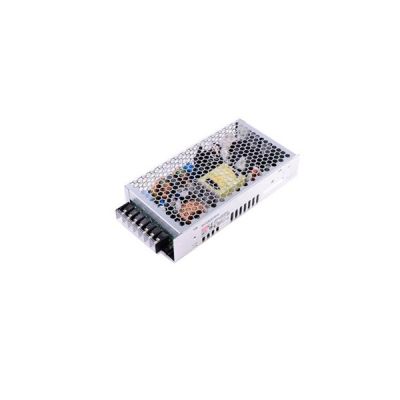

Meanwell HRP-200-3.3 is 200 W Single Output with 3.3V40A0-40A132W80 mVp-p2.8-3.8V which has PFC Function, 1U low profile 38mm and Cooling by free air convection. This is a new generation of green and environmentally friendly power supply, highlighting Universal AC input/Full range and high efficiency reaching up to 89%. What’s more, it is equipped with Built-in constant current limiting circuit and Built-in remote sense function. Additionally, it has multiple protection types such as short circuit, overload, over voltage and Over temperature, and also withstand 300VAC surge input for 5 seconds. Thanks to its high efficiency, high reliability and long longevity. Meanwell HRP-200-3.3 is a suitable power supply solution for various applications.

Meanwell HRP-200-3.3 Specifications

Meanwell HRP-200-3.3 Specifications

Model HRP-200-3.3
Output DC VOLTAGE 3.3V
RATED CURRENT 40A
CURRENT RANGE 0-40A
RATED POWER  132W
RIPPLE & NOISE (max.)  80 mVp-p
VOLTAGE ADJ. RANGE 2.8-3.8V
VOLTAGE TOLERANCE ±2.0%
LINE REGUL ATION ±0.5%
LOAD REGULATION ±1.5%
SETUP, RISE TIME 1000ms, 50ms/230VAC 2500ms, 50ms/115VAC at full load
HOLD UP TIME  16ms/230VAC 16ms/115VAC at full load
Input VOLTAGE RANGE 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE 47 - 63Hz
POWER FACTOR PF>0.95/230VAC PF>0.99/115VAC at full load
EFFICIENCY (Typ.)  80.00%
AC CURRENT (Typ.) 2.1A/115VAC 1.1A/230VAC
INRUSH CURRENT (Typ. ) 35A/115VAC 70A/230VAC
LEAKAGE CURR ENT <1.2mA / 240VAC
PROTECTION OVERLOAD 105 ~ 135% rated output power
Protection type : Constant current limiting, switch to hiccup mode for Vo<50% of rated voltage, recovers automatically after fault condition is removed
OVER VOLTAGE 3.96-4.62V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT WORKING TEMP -40 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL62368-1,TUV BS EN/EN62368-1, AS/NZS62368.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11,BS EN/EN55024,heavy industry level, criteria A, EAC TP TC 020
Others MTBF 209.4K hrs min. MIL-HDBK-217F (25)
DIMENSION 199*98*38mm (L*W*H)
PACKING 0.77Kg; 18pcs/14.9Kg/0.87CUFT

Meanwell HRP-200-3.3 Features

l  5 years warranty

l  1U low profile 38mm

l  Universal AC input/Full range

l  Built-in active PFC function, PF>0.95.

l  High efficiency up to 89%

l  Withstand 300VAC surge input for 5 seconds

l  Protections: Short circuit/Overload/Over voltage/Over temperature

l  Cooling by free air convection

l  Built-in constant current limiting circuit

l  Built-in remote sense function

Meanwell HRP-200 Mechanical diagram ycict

Meanwell HRP-200-3.3 Mechanical Diagram

Meanwell HRP-200 Mechanical diagram ycict
