HRP-150-5
40.36

HRP-150-5

$40.36

Meanwell 150W Single Output with PFC Function and 5V26A0-26A130W80mVp-p4.3-5.8V±2.5%±0.5%±1%

- +
Availability:In stock
SKU Meanwell HRP-150-5
Brand Meanwell
Details

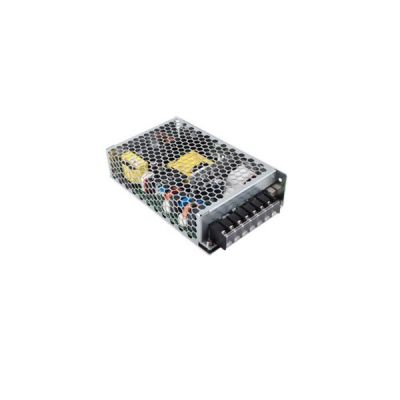

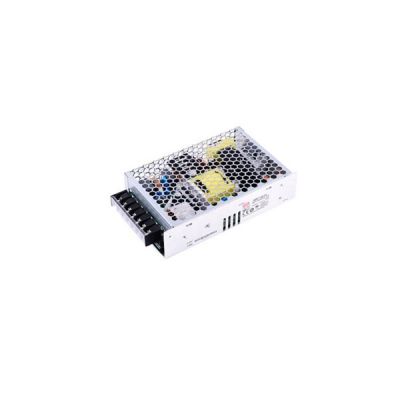

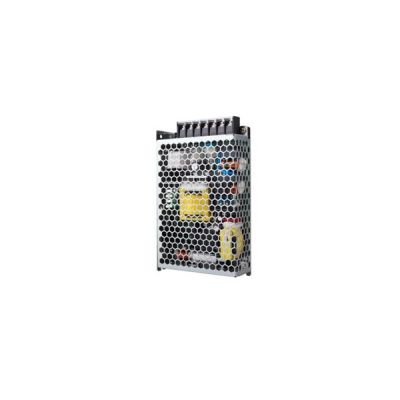

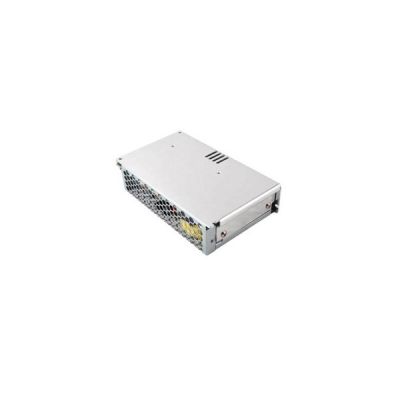

Meanwell HRP-150-5 is 150 W Single Output with PFC Function and 5V26A0-26A130W80mVp-p4.3-5.8V. This model is only 1U low profile 38mm and Cooling by free air convection with featured Universal AC input/Full range and high efficiency reaching up to 89%. Furthermore, it is provided with Built-in constant current limiting circuit and Built-in remote sense function. Besides, it has multiple protection types such as short circuit, overload, over voltage and Over temperature. In light of its high efficiency, high reliability and long longevity. Meanwell HRP-150-5 is a very suitable power supply solution for various fields.

HRP-150-5 Meanwell HRP-150 new and original ycict

Meanwell HRP-150-5 Specifications

Model HRP-150-5
Output DC VOLTAGE 5V
RATED CURRENT 26A
CURRENT RANGE 0-26A
RATED POWER W 130W
RIPPLE & NOISE (max.)  80mVp-p
VOLTAGE ADJ. RANGE 4.3-5.8V
VOLTAGE TOLERANCE ±2.5%
LINE REGUL ATION ±0.5%
LOAD REGULATION ±1%
SETUP, RISE TIME 3000ms, 50ms/230VAC 3000ms, 50ms/115VAC at full load
HOLD UP TIME  16ms/230VAC 16ms/115VAC at full load
Input VOLTAGE RANGE 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE 47 - 63Hz
POWER FACTOR PF>0.95/230VAC PF>0.99/115VAC at full load
EFFICIENCY (Typ.)  85.00%
AC CURRENT (Typ.) 1.7A/115VAC 0.9A/230VAC
INRUSH CURRENT (Typ. ) 35A/115VAC 70A/230VAC
LEAKAGE CURR ENT <1mA / 240VAC
PROTECTION OVERLOAD 105 ~ 135% rated output power
Protection type : Constant current limiting, switch to hiccup mode for Vo<50% of rated voltage, recovers automatically after fault condition is removed
OVER VOLTAGE 6-7V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes down
FUNCTION REMOTE CONTROL RC+ / RC-: 0 ~ 0.8V = power on ; 4 ~ 10V = power off
ENVIRONMENT WORKING TEMP -40 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -50 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.04%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL62368-1,TUV BS EN/EN62368-1, AS/NZS62368.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11,BS EN/EN55024,BS EN/EN61000-6-2,heavy industry level,criteria A,EAC TP TC 020
Others MTBF 238.8K hrs min. MIL-HDBK-217F (25)
DIMENSION 159*97*38mm (L*W*H)
PACKING 0.61Kg; 24pcs/15.6Kg/0.9CUFT

Meanwell HRP-150-5 Features

l  5 years warranty

l  1U low profile 38mm

l  Cooling by free air convection

l  Built-in constant current limiting circuit

l  Built-in remote sense function

l  Universal AC input/Full range

l  Built-in active PFC function, PF>0.95

l  High efficiency up to 89%

l  Withstand 300VAC surge input for 5 seconds

Protections: Short circuit/Overload/Over voltage/Over temperatureMeanwell HRP-150 Certificate YCICT

Meanwell HRP-150-5 Mechanical Diagram

Meanwell HRP-150 mechanical diagram
