HRP-150-36
42.98

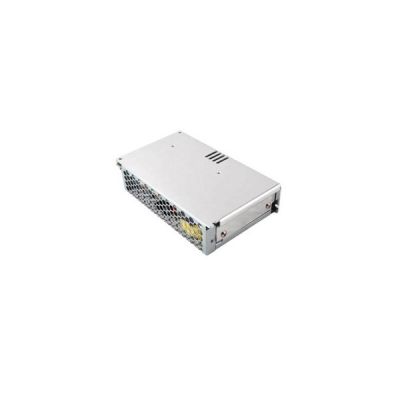

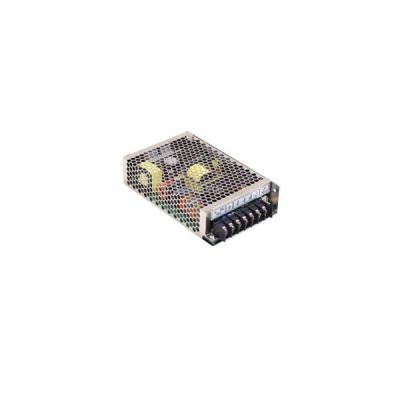

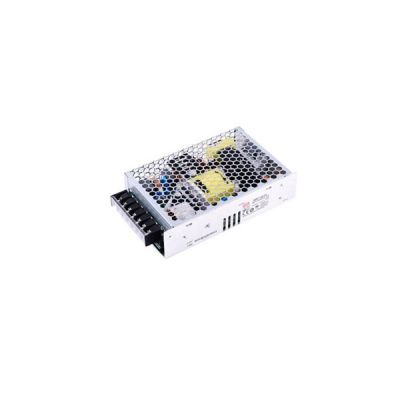

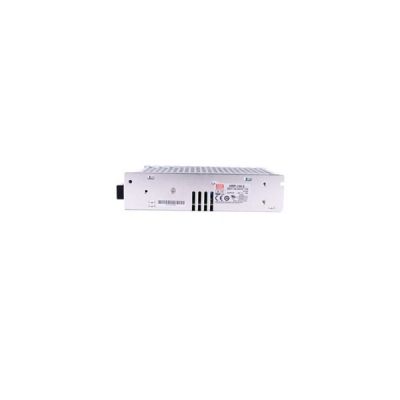

HRP-150-36

$42.98

Meanwell 150W Single Output with PFC Function and 36V4.3A0-4.3A154W200 mVp-p28.8-39.6±1.5%±0.2%±0.5%

- +
Availability:In stock
SKU Meanwell HRP-150-36
Brand Meanwell
Details

Meanwell HRP-150-36 is 150 W Single Output with PFC Function and 36V4.3A0-4.3A154W200 mVp-p28.8-39.6. This is a new generation of green and environmentally friendly power supply highlighting 1U low profile 38mm and free air convection cooling. This model provides Universal AC input/Full range and high efficiency. More than it, it is also equipped with Built-in constant current limiting circuit and Built-in remote sense functions. Additionally, it offers multiple protection modes such as short circuit, overload, over voltage and over temperature. Owing to its high efficiency, high reliability and long longevity. Meanwell HRP-150-36 is an ideally suitable power supply solution for various fields.

Meanwell HRP-150-36 Specifications

Meanwell HRP-150-36 Specifications

Model HRP-150-36
Output DC VOLTAGE 36V
RATED CURRENT 4.3A
CURRENT RANGE 0-4.3A
RATED POWER W 154W
RIPPLE & NOISE (max.) mVp-p 200
VOLTAGE ADJ. RANGE 28.8-39.6
VOLTAGE TOLERANCE ±1.5%
LINE REGUL ATION ±0.2%
LOAD REGULATION ±0.5%
SETUP, RISE TIME 3000ms, 50ms/230VAC 3000ms, 50ms/115VAC at full load
HOLD UP TIME  16ms/230VAC 16ms/115VAC at full load
Input VOLTAGE RANGE 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE 47 - 63Hz
POWER FACTOR PF>0.95/230VAC PF>0.99/115VAC at full load
EFFICIENCY (Typ.)  89.00%
AC CURRENT (Typ.) 1.7A/115VAC 0.9A/230VAC
INRUSH CURRENT (Typ. ) 35A/115VAC 70A/230VAC
LEAKAGE CURR ENT <1mA / 240VAC
PROTECTION OVERLOAD 105 ~ 135% rated output power
Protection type : Constant current limiting, switch to hiccup mode for Vo<50% of rated voltage, recovers automatically after fault condition is removed
OVER VOLTAGE 41.4-48.6V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes down
FUNCTION REMOTE CONTROL RC+ / RC-: 0 ~ 0.8V = power on ; 4 ~ 10V = power off
ENVIRONMENT WORKING TEMP -40 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -50 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.04%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL62368-1,TUV BS EN/EN62368-1, AS/NZS62368.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11,BS EN/EN55024,BS EN/EN61000-6-2,heavy industry level,criteria A,EAC TP TC 020
Others MTBF 238.8K hrs min. MIL-HDBK-217F (25)
DIMENSION 159*97*38mm (L*W*H)
PACKING 0.61Kg; 24pcs/15.6Kg/0.9CUFT

Meanwell HRP-150-36 Features

l  5-year warranty

l  1U low profile 38mm

l  High efficiency up to 89%

l  Universal AC input/Full range

l  Cooling by free air convection

l  Built-in remote sense function

l  Built-in active PFC function, PF>0.95

l  Built-in constant current limiting circuit

l  Withstand 300VAC surge input for 5 seconds

l  Protections: Short circuit/Overload/Over voltage/Over temperature

Meanwell HRP-150 Certificate YCICT

Meanwell HRP-150-36  Mechanical Diagram

Meanwell HRP-150 mechanical diagram
