HRP-100-48
35.69

HRP-100-48

$35.69

Meanwell 100W Single Output with PFC Function and 48V2.2A0-2.2A105.6W24045.6-55.2V±1.5%±0.2%±0.5%

- +
Availability:In stock
SKU Meanwell HRP-100-48
Brand Meanwell
Details

Meanwell HRP-100-48 is 100W Single Output with PFC Function and 48V2.2A0-2.2A105.6W24045.6-55.2V featured with Height only 38mm and natural air cooling. This model is a new generation of green and environmentally friendly power supply offering Universal AC input/Full range and High efficiency. More than it, it is equipped with Built-in remote ON-OFF control. HRP-100-48 complies with international universal full range AC input with active PFC Function, and withstand 300VAC surge input for 5 seconds. Furthermore, it has multiple protection types like short circuit, overload and overvoltage, all using 105°C long-life capacitors. Considering its high efficiency, high reliability and long longevity. Meanwell HRP-100-48 is fit for a wide range of applications.

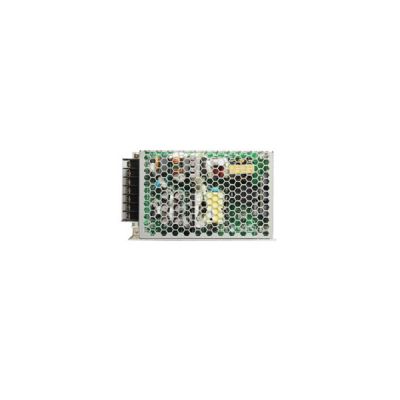

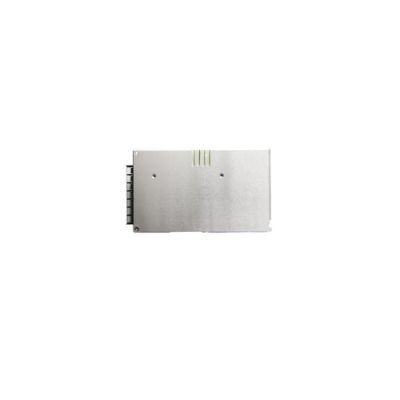

HRP-100-48 Meanwell HRP-100-48 price and datasheet YCICT

Meanwell HRP-100-48 Specifications

Model HRP-100-48
Output DC VOLTAGE 48V
RATED CURRENT 2.2A
CURRENT RANGE 0-2.2A
RATED POWER W 105.6W
RIPPLE & NOISE (max.) mVp-p 240
VOLTAGE ADJ. RANGE 45.6-55.2V
VOLTAGE TOLERANCE ±1.5%
LINE REGUL ATION ±0.2%
LOAD REGULATION ±0.5%
SETUP, RISE TIME 2500ms, 100ms/230VAC 2500ms, 100ms/115VAC at full load
HOLD UP TIME  50ms/230VAC 20ms/115VAC at full load
Input VOLTAGE RANGE 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE 47 - 63Hz
POWER FACTOR PF>0.95/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.)  90.00%
AC CURRENT (Typ.) 1.1A/115VAC 0.6A/230VAC
INRUSH CURRENT (Typ. ) 35A/115VAC 65A/230VAC
LEAKAGE CURR ENT <1mA / 240VAC
PROTECTION OVERLOAD 105 ~ 135% rated output power
Protection type : Constant current limiting, switch to hiccup mode for Vo<50% of rated voltage, recovers automatically after fault condition is removed
OVER VOLTAGE 57.6-67.2V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes down
FUNCTION REMOTE CONTROL RC+ / RC-: 0 ~ 0.8V = power on ; 4 ~ 10V = power off
ENVIRONMENT WORKING TEMP -40 ~ +60 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.04%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL62368-1,TUV BS EN/EN62368-1, AS/NZS62368.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11,BS EN/EN55024,BS EN/EN61000-6-2,heavy industry level,criteria A,EAC TP TC 020
Others MTBF 295.7K hrs min. MIL-HDBK-217F (25)
DIMENSION 159*97*38mm (L*W*H)
PACKING 0.56Kg; 24pcs/15Kg/0.9CUFT

Meanwell HRP-100-48 Features

l  5 years warranty

l  1U low profile 38mm

l  High efficiency up to 90%

l  Universal AC input/Full range

l  Cooling by free air convection

l  Built-in remote ON-OFF control

l  Built-in active PFC function

l  No load power consumption<0.5W

l  Protections: Over temperature (optional)

l  All using 105C long life electrolytic capacitors

l  Withstand 300V AC surge input for 5 seconds

l  Protections: Short circuit/Overload/Over voltage

Meanwell HRP-100 Certificate

Meanwell HRP-100-48 Mechanical Diagram
