HLG-80H-48
30.87

HLG-80H-48

$30.87

Meanwell 80W Constant Voltage and Constant Current LED Driver with 48V28.8-48V1.7A81.6W200mVp-p43-53V1.02-1.7A±1.0%±0.5%±0.5%

- +
Availability:In stock
SKU Meanwell HLG-80H-48
Brand Meanwell
Details

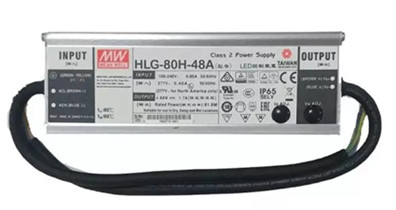

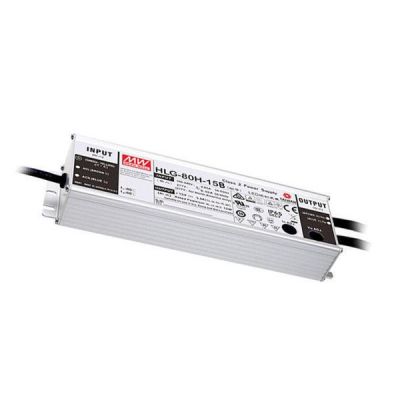

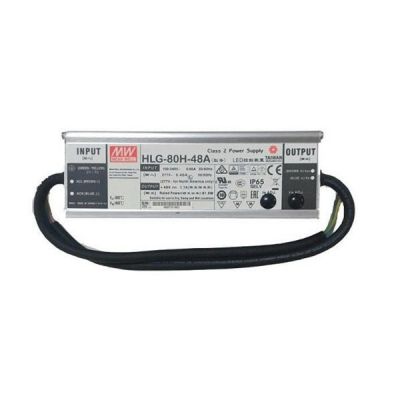

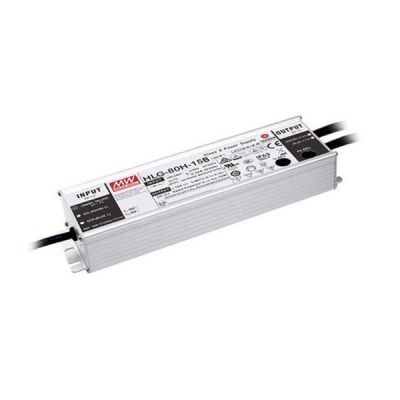

Meanwell HLG-80H-48 is a 80W AC/DC LED driver with 48V28.8-48V1.7A81.6W200mVp-p43-53V1.02-1.7A±1.0%±0.5%±0.5%. The unit provides dual mode constant voltage and constant current output. And it works from 90 ~ 305VAC with rated voltage 48V. Since the efficiency reaches high up to 91% and no fan design, HLG-80H-48 is able to operate for -40℃ ~ +80℃ case temperature under free air convection. What’s more, the metal housing design and IP67/IP65 ingress protection level allow it to meet with both indoor and outdoor applications. In addition, the product is equipped with various function options such as dimming methodologies. Due to its long lifetime, high efficiency and excellent reliability, Meanwell HLG-80H-48 is an ideally suitable solution for the optimal design flexibility for LED lighting system.

Meanwell HLG-80H-48 Meanwell HLG-80H series price and specs ac dc led driver 80w power supply ycict

Meanwell HLG-80H-48 Encoding

HLG Series Name
80H Rated Wattage
48 Rate output voltage (12V/15V/20V/24V/30V/36V/42V/48V/54V)
A Function options
Type IP Level Function Note
Blank IP67 Io and Vo fixed In Stock
A IP65 Io and Vo adjustable through built-in potentiometer In stock
B IP67 3 in 1 dimming function (1~10VDC, 10V PWM signal and resistance) In stock
AB IP65 Io and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (1~10Vdc,1OV PWM signal and resistance) In Stock
BL  IP66 B-Type with junction box. UL 8750 LISTED. Contact MEAN WELL for details In Stock
D IP67 Timer dimming function, contact MEAN WELL for details(safety pending). By Request

Meanwell HLG-80H-48 Specifications

Model HLG-80H-48
OUTPUT DC VOLTAGE 48V
CONSTANT CURRENT REGION 28.8-48V
RATED CURRENT 1.7A
RATED POWER 81.6W
RIPPLE & NOISE (max.) 200mVp-p
VOLTAGE ADJ. RANGE Adjustable for A/AB-Type only (via built-in potentiometer)
43-53V
CURRENT ADJ. RANGE Adjustable for A/AB-Type only (via built-in potentiometer)
1.02-1.7A
VOLTAGE TOLERANCE ±1.0%
LINE REGULATION ±0.5%
LOAD REGULATION ±0.5%
SETUP, RISE TIME 1200ms,200ms/115VAC 500ms,200ms/230VAC
HOLD UP TIME (Typ.) 16ms at full load 230VAC /115VAC
Input VOLTAGE RANGE 90~305VAC 12 ~431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR PF>=0.96/115VAC, PF>=0.96/230VAC, PF>=0.94/277VAC at full load
TOTAL HARMONIC DISTORTION THD< 20% (at load>=60% / 115VAC,230VAC; at load>=75% / 277VAC)
EFFICIENCY (Typ.)  91.00%
AC CURRENT 0.85A / 115VAC 0.425A / 230VAC 0.4A / 277VAC
INRUSH CURRENT (Typ. ) COLD START 70A(twidth=485μ s measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURR ENT <0.75mA / 277VAC
PROTECTION OVER CURRENT 95 ~ 108%
Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 54-63V
Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP Tcase= -40 ~ +80 (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP. Tcase=+80
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 60)
VIBRATION 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL8750(type”HL”), CSA C22.2 No. 250.0-08, UL8750 LISTED for HLG-80H- BL;BS EN/EN/AS/NZS 61347-1,BS EN/EN/AS/NZS 61347-2-13
J61347-1, J61347-2-13(except for B,AB and D-type), GB19510.1,independent, GB19510.14,EAC TP TC 004,BIS IS15885(for 36A,
54A only), IP65 or IP67,KC61347-1,KC61347-2-13(except for AB,BL-type) approved
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (at load>=60%); BS EN/EN61000-3-3,GB17743 and GB17625.1, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020
Others MTBF 2992.9K hrs min. Telcordia SR-332 (Bellcore) ; 289.1K hrs min. MIL-HDBK-217F (25)
DIMENSION 195.6*61.5*38.8mm (L*W*H)
PACKING 0.84Kg; 16pcs/14.4Kg/0.54CUFT

Meanwell HLG-80H-48 Features

l  Constant Voltage and Constant Current mode output

l  Metal housing with class I design

l  Built-in active PFC function

l  Typical lifetime > 62000 hours

l  7 years warranty

l  Class 2 power unit

l  IP67 / IP65 rating for indoor or outdoor installations

l  Function options: output adjustable via potentiometer;3 in 1 dimming; Timer dimming

Meanwell HLG-80H-48 Features Meanwell HLG-80H-48 price and specs ac dc led driver 80w power supply ycict

Meanwell HLG-80H-80 Applications

l  LED street lighting

l  LED high-bay lighting

l  Parking space lighting

l  LED fishing lamp

l  LED greenhouse lighting

l  Type HL" for use in Class I , Division 2 hazardous (Classified) location

Meanwell HLG-80H-48 Mechanical Diagram

Meanwell HLG-80H-48 Mechanical Diagram HLG-80H-48A HLG-80H-48B HLG-80H-48AB HLG-80H-48BL HLG-80H-48D YCICT

Meanwell HLG-80H-48 Mechanical Diagram HLG-80H-48A HLG-80H-48B HLG-80H-48AB HLG-80H-48BL HLG-80H-48D YCICT
