HLG-240H-C1750
45.61
Details

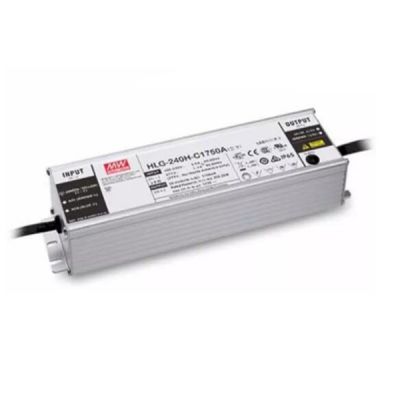

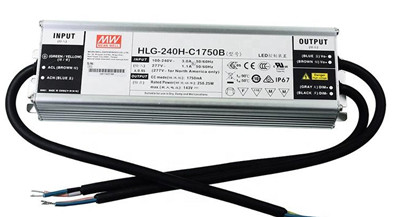

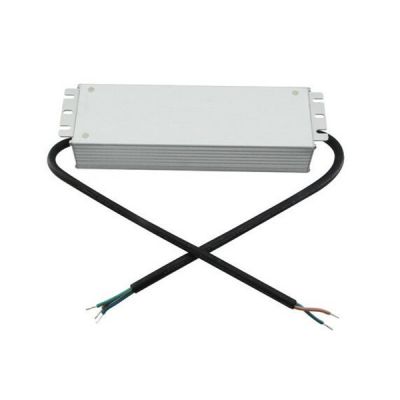

Meanwell HLG-240H-C1750 is a 250W LED AC/DC LED driver with 1750mA250.25W71-143V146V875-1750mA±5%1000ms/115VAC, or 500ms/230VAC47~63Hz. The model offers constant current mode and high voltage output. Meanwhile, it is able to work from 90~305VAC with rated current 1750mA. Since the efficiency reaches high up to 94% under no fan design, HLG-240H-C1750 could operate for -40℃ ~ +90℃ case temperature under free air convection. More than them, the metal housing design and IP67/IP65 ingress protection level allow it to suit both indoor and outdoor applications. Additionally, the unit is equipped with various function options such as dimming methodologies. In view of its long lifetime, high efficiency and excellent reliability, Meanwell HLG-240H-C1750 is an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell HLG-240H-C1750 Encoding
| HLG | Series Name |
| 240 | Rated Wattage |
| H | High input voltage up to 305VAC |
| C1750 | Rated output current (700mA/1050mA/1400mA/2100mA) |
| A | Function options |
| Type | IP Level | Function | Note |
| A | IP65 | Io adjustable through built-in potentiometer | In stock |
| B | IP67 | 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance) | In stock |
| AB | IP65 | Io adjustable through built-in potentiometer & . 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance ) | In Stock |
| Dx | IP67 | Built-in Smart timer dimming function by user request | By request |
| D2 | IP67 | Built-in Smart timer dimming and programmable function | By request |
Meanwell HLG-240H-C1750 Specifications
| Model | HLG-240H-C1750 □ | |
| OUTPUT | RATED CURRENT | 1750mA |
| RATED POWER | 250.25W | |
| CONSTANT CURRENT REGION | 71-143V | |
| OPEN CIRCUIT VOLTAGE (max.) | 146V | |
| CURRENT ADJ. RANGE | Can be adjusted by internal potentiometer (A/AB type only) | |
| 875-1750mA | ||
| CURRENT RIPPLE | 5.0% max. at rated current | |
| CURRENT TOLERANCE | ±5% | |
| SET UP TIME | 1000ms/115VAC, or 500ms/230VAC | |
| Input | VOLTAGE RANGE | 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section) |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>=0.98/115VAC, PF>=0.95/230VAC, PF>0.92/277VAC at full load | |
| TOTAL HARMONIC DISTORTION | THD< 20% (at load>=50% /115VAC, 230VAC; at load>=75%/277VAC) | |
| EFFICIENCY (Typ.) | 94.00% | |
| AC CURRENT (Typ.) | 2.5A / 115VAC 1.3A / 230VAC 1.1A / 277VAC | |
| INRUSH CURRENT(Typ.) | COLD START 75A(twidth=700 s measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC | |
| LEAKAGE CURRENT | <0.75mA / 277VAC | |
| PROTECTION | SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed |
| OVER VOLTAGE | 150-165V | |
| Shut down and latch off o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| ENVIRONMENT | WORKING TEMP. | Tcase=-40 ~ +90℃(Refer to "Derating Curve") |
| MAX. CASE TEMP | Tcase=+90℃ | |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL8750(type”HL”), CSA C22.2 No. 250.13-12; BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13, BS EN/EN62384 independent; GB19510.1,GB19510.14; IP65 or IP67, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (at load>=50%) ; BS EN/EN61000-3-3,GB17743 and GB17625.1, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV),EAC TP TC 020 | |
| Others | MTBF | 2513.7K hrs min. Telcordia SR-332(Bellcore) ; 228.5K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 244.2*68*38.8mm (L*W*H) | |
| PACKING | 1.3Kg; 12pcs/16.6Kg/0.84CUFT | |
Meanwell HLG-240H-C1750 Features
l Constant Current mode output
l Typical lifetime>62000 hours
l 7 years warranty
l Metal housing with Class I design
l Built-in active PFC function
l IP67/IP65 design for indoor or outdoor installations
l Function options: output adjustable via potentiometer; 3 in 1 dimming; Smart timer dimming
Meanwell HLG-240H-C1750 Applications
l LED street lighting
l LED fishing lamp
l LED harbor lighting
l LED building architectural lighting LED bay lighting
l Type "HL" for use in Class I , Division 2 hazardous (Classified) location
Meanwell HLG-240H-C1750 Mechanical DIagram
