HLG-240H-54
55.97

HLG-240H-54

$55.97

Meanwell 240W Constant Voltage and Constant Current LED Driver with 54V27-54V4.45A240.3W350mVp-p50-57V2.23-4.45A±1.0%±0.5%±0.5%

- +
Availability:In stock
SKU Meanwell HLG-240H-54
Brand Meanwell
Details

Meanwell HLG-240H-54 is a 240W AC/DC LED driver with 54V27-54V4.45A240.3W350mVp-p50-57V2.23-4.45A±1.0%±0.5%±0.5%. The model provides dual mode constant voltage and constant current output. Meanwhile, it could operate from 90 ~ 305VAC, and offers model rated voltage 54V. As the efficiency reaches high up to 93.5% and no fan design, HLG-240H-54 is able to work for -40℃~ +90℃ case temperature under free air convection. In addition to them, the metal housing design and IP67/IP65 ingress protection level make it possible to meet with both indoor and outdoor applications. Apart from them, the unit is equipped with various function options such as dimming methodologies. Due to its longevity, high efficiency and excellent reliability, Meanwell HLG-240H-54 is an ideally suitable solution for the optimal design flexibility for LED lighting system.

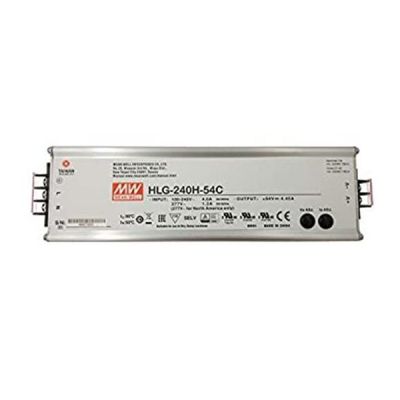

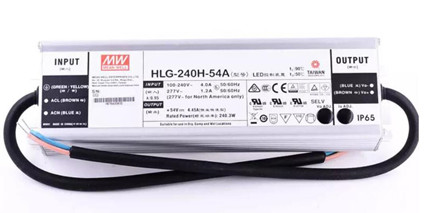

Meanwell HLG-240H-54 power supply HLG-240H LED Driver HLG-240H-54A HLG-240H-54B HLG-240H-54AB HLG-240H-54C HLG-240H-54D YCICT

Meanwell HLG-240H-54 Encoding

HLG Series Name
240H Rated Wattage
54 Rate output voltage (12V/15V/20V/24V/30V/36V/42V/48V/54V)
A Function options
Type IP Level Function Note
Blank IP67 Io and Vo fixed In Stock
A IP65 Io and Vo adjustable through built-in potentiometer In stock
B IP67 3 in 1 dimming function (1 ~1OVDC, 10V PWM signal and resistance) In stock
AB IP65 Io and Vo adjustable through built-in potentiometer & 3in 1 dimming function (1~10Vdc, 10V PWM signal and resistance ) In Stock
C ---- Terminal block for I/O connection. Output voltage and constant currentlevel can be adjusted through internal potentiometer. By Request
D IP67 Timer dimming function, contact MEAN WELL for details(safety pending). By Request

Meanwell HLG-240H-54 Specifications

Model HLG-240H-54
OUTPUT DC VOLTAGE 54V
CONSTANT CURRENT REGION 27-54V
RATED CURRENT 4.45A
RATED POWER 240.3W
RIPPLE & NOISE (max.) 350mVp-p
VOLTAGE ADJ. RANGE Adjustable for A/AB/C-Type only (via built-in potentiometer)
50-57V
CURRENT ADJ. RANGE Adjustable for A/AB/C-Type only (via built-in potentiometer)
2.23-4.45A
VOLTAGE TOLERANCE ±1.0%
LINE REGULATION ±0.5%
LOAD REGULATION ±0.5%
SETUP, RISE TIME 1000ms,80ms/115VAC 500ms,80ms/230VAC
HOLD UP TIME (Typ.) 15ms / 115VAC, 230VAC
Input VOLTAGE RANGE 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR PF>=0.98/115VAC, PF>=0.95/230VAC at full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION THD< 20% (at load>=50% / 115VAC,230VAC; at load>=75% / 277VAC) (Please refer to "TOTAL HARMONIC DISTORTION (THD)" section)
EFFICIENCY (Typ.)  93.50%
AC CURRENT (Typ.) 4A / 115VAC 2A / 230VAC 1.2A / 277VAC
INRUSH CURRENT (Typ. ) COLD START 75A(twidth=570μ s measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER 2 units (circuit breaker of type B) / 4 units (circuit breaker of type C) at 230VAC
LEAKAGE CURR ENT <0.75mA / 277VAC
PROTECTION OVER CURRENT 95 ~ 108%
Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 59-65V
Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT WORKING TEMP Tcase= -40 ~ +90 (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP. Tcase=+90
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL1012, CAN/CSA-C22.2 No. 107.1-01, UL8750(type”HL”), CSA C22.2 No. 250.0-08; BS EN/EN/AS/NZS 61347-1,
BS EN/EN/AS/NZS 61347-2-13 independent (except for HLG-240H C type); IEC/UL/BS EN/EN 62368-1(except for AB,D type),
UL8750;GB19510.1,GB19510.14(except for C-type);IP65 or IP67;J61347-1,J61347-2-13(except for B,AB and D-type),
BIS IS15885( for 48V only), EAC TP TC 004,KC61347-1,KC61347-2-13(except for AB,C,D-type) approved
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55015, BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class C (at load>=50%) ;
BS EN/EN61000-3-3,GB17743 and GB17625.1,EAC TP TC 020;KC KN15,KN61547(except for AB,C,D-type)
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, BS EN/EN55024, light industry level (surge immunity
Line-Earth 4KV, Line-Line 2KV) EAC TP TC 020;KC KN15,KN61547(except for AB,C,D-type)
Others MTBF 2015.1K hrs min. Telcordia SR-332 (Bellcore) ; 176.4K hrs min. MIL-HDBK-217F (25)
DIMENSION 244.2*68*38.8mm (L*W*H)(HLG-240H-Blank/A/B) 251*68*38.8mm (L*W*H)(HLG-240H C-Type)
PACKING 1.3Kg; 12pcs/16.6Kg/0.84CUFT(HLG-240-Blank/A/B) 1.23Kg; 12pcs/15.8Kg/1.16CUFT(HLG-240 C-Type)

Meanwell HLG-240H-54 Features

l  Typical lifetime > 62000 hours

l  7 years warranty

l  Constant Voltage + Constant Current mode output

l  Metal housing with class I design

l  IP67/1P65 rating for indoor or outdoor installations

l  Function options: output adjustable via potentiometer;3 in 1 dimming

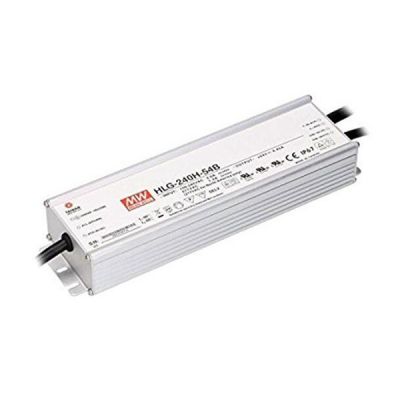

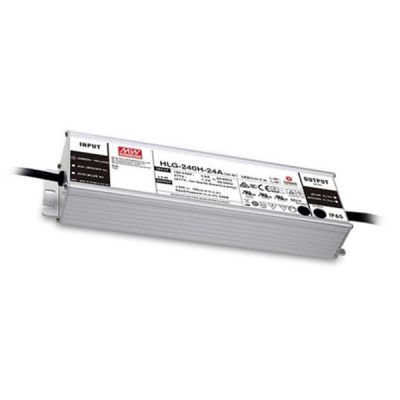

Meanwell HLG-240H-54 AC DC LED DRIVER HLG-240H series HLG-240H-54A HLG-240H-54B HLG-240H-54AB HLG-240H-54C HLG-240H-54D YCICT

Meanwell HLG-240H-54 Applications

l  LED street lighting

l  LED high-bay lighting

l  Parking space lighting

l  LED fishing lamp

l  LED greenhouse lighting

l  Type HL" for use in Class I , Division 2 hazardous (Classified) location

Meanwell HLG-240H-54 Mechanical Diagram

Meanwell HLG-240H-54 power supply HLG-240H series HLG-240H-54A HLG-240H-54B HLG-240H-54AB HLG-240H-54C HLG-240H-54D YCICT

Meanwell HLG-240H-54 power supply HLG-240H series HLG-240H-54A HLG-240H-54B HLG-240H-54AB HLG-240H-54C HLG-240H-54D YCICT
