HEP-600C-48
210.35
Details

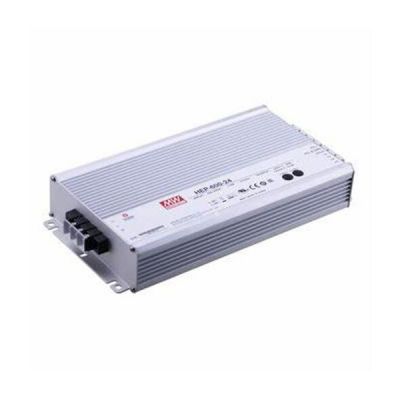

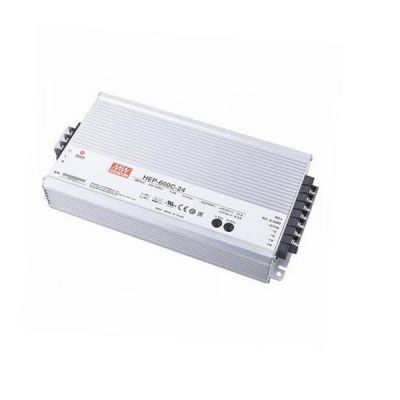

Meanwell HEP-600C-48 is an AC-to-DC battery charger with 57.6V54.4V46.1-60.5V5.2-10.5A35-105AH10.5A. The unit offers up to 600W designed with aluminum case and fully potted by silicone. At the same time, It outstands high efficiency (up to 95.5%), waterproof and low no-load power consumption (<0.5W) at remote OFF. Incorporating state of the art design, the fanless HEP-600C-48 is capable of working under high-vibration (10G), dusty, humid, and oily environment. What’s more, the model highlights adjustable voltage/current and wide working temperature range (-40~+70C). In light of its longevity, high efficiency, and excellent quality, Meanwell HEP-600C-48 provides the best safety for Harsh Environment.
Meanwell HEP-600C-48 Encoding
| HEP | Series Name |
| 600 | Output Wattage |
| C | Battery Charger |
| 48 | Output Voltage |
Meanwell HEP-600C-48 Specifications
| Model | HEP-600C-48 | |
| OUTPUT | BOOST CHARGE VOLTAGE Vboost | 57.6V |
| FLOAT CHARGE VOLTAGE Vfloat | 54.4V | |
| VOLTAGE ADJ. RANGE | 46.1-60.5V | |
| CURRENT ADJ. RANGE | 5.2-10.5A | |
| RECOMMENDED BATTERY CAPACITY(AMP HOURS) | 35-105AH | |
| BATTERY TYPE | Open & Sealed Lead Acid | |
| OUTPUT CURRENT | 10.5A | |
| Input | VOLTAGE RANGE | 85~264VAC(277VAC operational) 120~370VDC(390VDC operational) |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR | PF>0.98/115VAC, PF>0.95/230VAC, PF>0.93/277VAC at full load | |
| EFFICIENCY (Typ.) | 95.50% | |
| AC CURRENT (Typ.) | 7A / 115VAC 3.3A / 230VAC 2.9A / 277VAC | |
| INRUSH CURRENT (Typ.) | COLD START 70A(twidth=1010 s measured at 50% Ipeak) at 230VAC | |
| LEAKAGE CURRENT | <0.75mA / 277VAC | |
| PROTECTION | OVER VOLTAGE | 68-73V |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |
| FUNCTION | REMOTE ON/OFF CONTROL | Power on : "Hi" >2 ~ 5V or Open circuit Power off : "Low" <0 ~ 0.5V or Short circuit |
| 5V STANDBY | 5VSB : 5V@0.5A ; tolerance ±5%, ripple : 100mVp-p(max.) | |
| ENVIRONMENT | WORKING TEMP. | -40 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.05%/℃ (0 ~ 60℃) | |
| VIBRATION | 20 ~ 500Hz, 10G 10min./1cycle, 72min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32), radiation class A, conduction class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, EAC TP TC 020 | |
| Others | MTBF | 857.2K hrs min. Telcordia SR-332 (Bellcore) ; 73.1K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 280*144*48.5mm (L*W*H) | |
| PACKING | 3.9Kg; 4pcs/16Kg/0.9CUFT | |
Meanwell HEP-600C-48 Features
l 6 years warranty
l 3 stage charging
l High efficiency up to 95.5%
l Built-in active PFC function
l Withstand 10G vibration test
l -40 ~ +70℃ wide operating range
l 3 color LED loading indicator
l Operating altitude up to 5000 meters
l Universal AC input/ Full range (up to 305VAC)
l No load power consumption <0.5W at remote OFF
l Fanless design, cooling by free air convection
l Aluminum case and filling with heat-conducted glue
l Output voltage and output current can be adjusted through internal potentiometer
l Protection: Short circuit/Over voltage/Over temperature
l Charger for lead-acid batteries (flooded, Gel and AGM) andLi-ion batteries (lithium iron and lithium manganese)
Meanwell HEP-600C-57.6 Applications
l Suitable for battery charger at harsh environment
l Robotic lawn mower
l Electronic transportation vehicle
l Recreational craft, personal yacht or workboat
l Security network and system
l Telecommunication base station
l Equipment or instruments with back-up battery
Meanwell HEP-600C-48 Mechanical Diagram
