HEP-1000-24
301.28

HEP-1000-24

$301.28

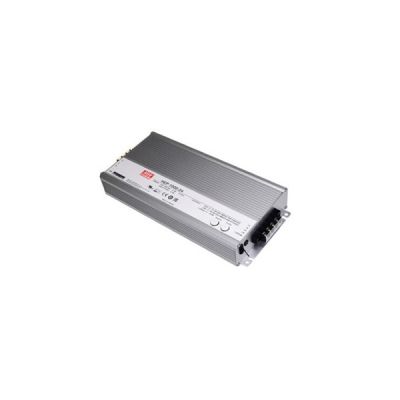

Meanwell 1000W Switching Power Supply for Harsh Environment with 24V42A1008W200mVp-p±1%±0.5%±0.5%

- +
Availability:In stock
SKU Meanwell HEP-1000-24
Brand Meanwell
Details

Meanwell HEP 1000-24 is a 1 000W industrial AC/DC power supply with 24V42A1008W200mVp-p. this model features the outstanding capability to work under highly humid, dusty, oily, and high-vibration harsh environment. Apart from it,  it is also housed with the aluminum case and fully potted with heat-conducted glue. In addition to the high efficiency up to 96%, HEP 1000-24 can operate from -40 ~ 70℃  under air convection without fan. Furthermore, HEP-1000-24 has the complete protection functions and 10G anti-vibration capability. At the same time, It is complied with the international safety regulations such as TUV EN62368-1 UL62368-1, and the design refers to EN61 558-1 and EN60335-1. Thanks to the high efficiency, high reliability and long longevity, Meanwell HEP-1000-24 is a high performance power supply solution for various industrial and charger applications.

Meanwell HEP-1000-24 Specifications

Meanwell HEP-1000-24 Specifications

Model HEP-1000-24
OUTPUT DC VOLTAGE 24V
RATED CURRENT 42A
RATED POWER 1008W
RIPPLE & NOISE (max.) 200mVp-p
VOLTAGE ADJ. RANGE By built-in potentiometer, SVR
24 - 30V
VOLTAGE TOL ERANCE  ±1%
LINE REGULATION ±0.5%
LOAD REGUL .ATION ±0.5%
SETUP, RISE TIME 1 800ms, 80ms at full load 230VAC /115VAC
HOLD UP TIME (Typ.) 16ms / 230VAC at 75% load 12ms / 230VAC at full load
INPUT VOLTAGE RANGE 90 ~ 305VAC  250 ~ 431VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF>0.99/115VAC, PF>0.95/23OVAC, PF>0.93/277VAC at full load95%
EFFICIENCY (Typ.) 96%
AC CURRENT (Typ.) 10.1A/ 115VAC  5. 3A/ 230VAC 4.5A/ 277VAC
INRUSH CURRENT(Typ.) Cold start 40A at 230VAC
LEAKAGE CURRENT <0.75mA/ 240VAC
PROTECTION OVERL OAD 105~125% rated output power
Protection type : Constant current limiting, unit will shutdown after 5 sec, re-power on to recover
SHORT CIRCUIT Constant current limiting, unit will shutdown after 5 sec, re-power on to recover
OVER VOLTAGE 30~ 35V
Protection type :Shut down O/P voltage,re-power on to recover
OVER TEMPERATURE Protection type :Shut down O/P voltage, recovers automatically after temperature goes down
FUNCTION OUTPUT VOLTAGE PROGRAMMABLE(PV)  Adjustment of output voltage is allowable to 50 ~ 125% of nominal output voltage.Please refer to the Function Manual.
OUTPUT CURRENTPROGRAMMABLE(PC)  Adjustment of constant current level is allowable to 20 ~ 100% of rated current.Please refer to the Function Manual.
REMOTE ON/OFF CONTROL Power ON : Short circuit Power OFF : Open circuit
AUXILIARY POWER 12V @ 0.5A tolerance t10%, ripple=150mVp-p
DC-OK SIGNAL The TTL signalout, PSUturnon=4.4~ 5.5V ; PSU turn off= -0.5~ O.5V. Please refer to the Function Manual.
ENVIRONMENT WORKING TEMP. -40 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 20 ~ 500Hz, 10G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS UL62368-1,TUV BS EN/EN62368-1, EAC TP TC 004 approved; design refer to BS EN/EN61558-1, BS EN/EN60335-1(by request)
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG,O/P-FG:100M Ohms/500VDC/25/ 70%RH
OTHERS MTBF 197.9K hrs min. Telcordia SR-332 (Bellcore) ; 52.32K hrs min. MIL-HDBK-217F (25)
DIMENSION 310*144*48.5mm (L*W*H)
PACKING 4Kg;4pcs/17Kg/1.04CUFT

Meanwell HEP-1000-24 Features

l  6 years warranty

l  High efficiency up to 96%

l  Aluminum case fanless design and filling with heat-conducted glue and able to withstand 10G vibration test

l  Wide operating temperature range -40 ~ +70*C

l  Charger for lead-acid batteries (flooded, Gel and AGM) and Li-ion batteries (lithium iron and lithium manganese)

l  Power or charger mode switchable by SBP-001(Terminal type)

l  Built-in default 2/3 stage charging curves and programmable curve

l  Built-in PMBus protocol 1 CANBus protocol (optional )

l  Output voltage and constant current level programmable

l  Protections: Short circuit/Overload/Over voltage/Over temperature

l  Built-in remote ON-OFF control (Terminal type)

l  DC OK active signal and 12V Auxiliary power available

l  LED indicator for power on (Terminal type)

l  IP67 design for indoor or outdoor installation (Wiring type)

Meanwell HEP-1000-24 Features

Meanwell HEP-1000-24 Applications

l  Household appliances

l  5G telecom equipment

l  Industrial automation machinery

l  Electronic instruments, equipment

l  ·Robotic lawn mower/AMR/AGV

l  Equipment or instruments with back-up battery

l  Industrial control system at harsh environment Mechanical and electrical equipment

Meanwell HEP-1000-24 Applications

Meanwell HEP-1000-24 Mechanical Diagram

Meanwell HEP-1000-24 Mechanical DiagramMeanwell HEP-1000-24 Mechanical Diagram
