HDR-30-24
14.17

HDR-30-24

$14.17

Meanwell 30W Ultra Slim Step Shape DIN Rail with 24V1.5A0-1.5A36W150mVp-p21.6-29V±1.0%±1.0%±1.0%

- +
Availability:In stock
SKU Meanwell HDR-30-24
Brand Meanwell
Details

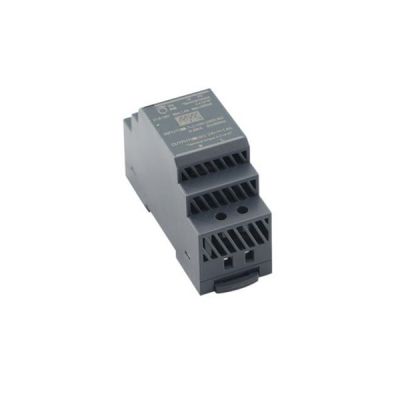

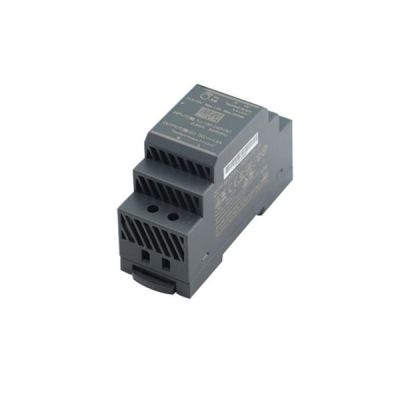

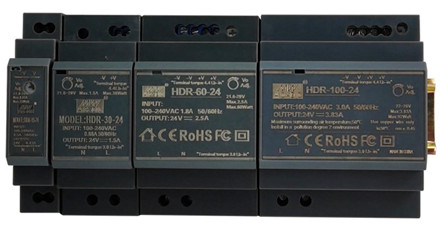

Meanwell HDR-30-24 is an economical ultra slim 30W DIN rail power supply with 24V1.5A0-1.5A36W150mVp-p21.6-29V. The unit adapts to be installed on TS-35/7.5or TS-35/15 mounting rails, and Its body is designed 35mm(2SU) in width, which saves space inside the cabinets. HDR-30-24 adopts the full range AC input from 85VAC to 264 VAC  (277VAC operational)and conforms to BS EN/EN61000-3-2, the norm the European Union regulates for harmonic current. Apart from them, HDR-30-24 is designed with plastic housing, so that it can effectively prevent user from electric hazards. Thanks to  working efficiency reaching up to 90%, Meanwell HDR-30-24 could work at the ambient temperature between -30 ℃ and 70 ℃under air convection. Considering the complete protection functions and relevant certificates for home automations and industrial control apparatus (lEC62368-1, UL508,UL62368-1, BS EN/EN61 558-2-16), Meanwell HDR-30-24 is a very competitive power supply solution for household and industrial applications.

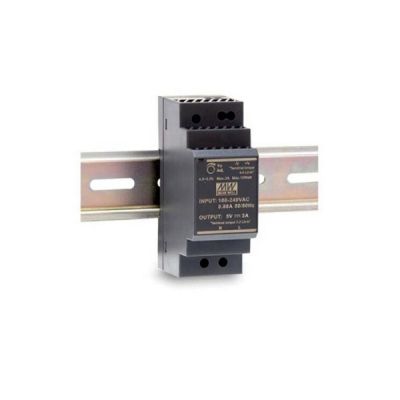

Meanwell HDR-30-24 Specifications

Meanwell HDR-30-24 Specifications

Model HDR-30-24
Output DC VOLTAGE 24V
RATED CURRENT 1.5A
CURRENT RANGE 0-1.5A
RATED POWER  36W
RIPPLE & NOISE (max.)  150mVp-p
VOLTAGE ADJ. RANGE 21.6-29V
VOLTAGE TOLERANCE ±1.0%
LINE REGUL ATION ±1.0%
LOAD REGULATION ±1.0%
SETUP, RISE TIME 500ms, 50ms/230VAC 500ms, 50ms/115VAC at full load
HOLD UP TIME  30ms/230VAC 12ms/115VAC at full load
Input VOLTAGE RANGE 85 ~ 264 VAC (277VAC operational ) 120 ~ 370 VDC (390VDC operational )
FREQUENCY RANGE 47 - 63Hz
EFFICIENCY (Typ.)  89.00%
AC CURRENT (Typ.) 0.88A/115VAC 0.48A/230VAC
INRUSH CURRENT (Typ. ) COLD START 25A/115VAC 45A/230VAC
PROTECTION OVERLOAD 105 ~ 160% rated output power
Hiccup mode when output voltage <50%, recovers automatically after fault condition is removed
Constant current limiting within 50% ~ 100% rated output voltage, recovers automatically after fault condition is removed
OVER VOLTAGE 30-36V
Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP -30 ~ +70(Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03%/(0 ~ 50) RH non-condensing
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
OPERATING ALTITUDE 2000 meters
OVER VOLTAGE CATEGORY ;According to EN61558, EN50178,EN60664-1, EN62477-1;altitude up to 2000 meters
SAFETY &EMC SAFETY STANDARDS UL62368-1, UL508, TUV BS EN/EN61558-2-16, BS EN/EN61558-1,IEC62368-1, EAC TP TC 004, BSMI CNS14336-1 approved;
Design refer to TUV BS EN/EN62368-1
WITHSTAND VOLTAGE I/P-O/P:4KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC IMMUNITY BS EN/EN55024, BS EN/EN55035, BS EN/EN61000-6-2, BS EN/EN61204-3
Others MTBF 968.1K hrs min. MIL-HDBK-217F (25)
DIMENSION 35*90*54.5mm (W*H*D)
PACKING 0.12Kg;96pcs/12.5Kg/1.1CUFT

Meanwell HDR-30-24 Features

l  3 years warranty

l  Isolation classⅡ

l  Over voltage category Ⅲ

l  LED indicator for power on

l  DC output voltage adjustable

l  No load power consumption<0.3W

l  DIN rail TS-35/7.5 or 15 mountable

l  Pass LPS (Limited power source)

l  Ultra slim design with 35mm(2SU) width

l  Universal input 85~ 264VAC (277VAC operational)

l  Protections: Short circuit/Overload/Over voltage

l  Cooling by free air convection (working temperature: -30~+70 ℃ )

Meanwell HDR-30-24 Features

Meanwell HDR-30-24 Applications

l  Factory automation

l  Building automation

l  Industrial control system

l  Electro-mechanical apparatus

l  Household control system

Meanwell HDR-30-24 Applications

Meanwell HDR-30-24 Mechanical Diagram

Meanwell HDR-30-24 Mechanical DiagramMeanwell HDR-30-24 Mechanical Diagram
