SKU Meanwell HDR-100-24
Brand Meanwell
Details

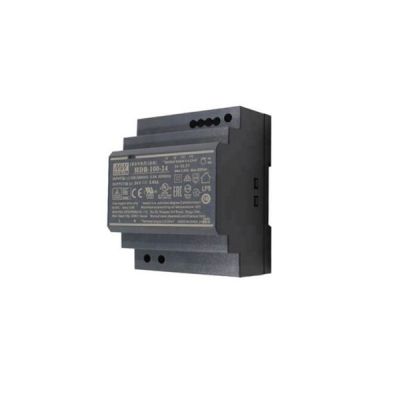

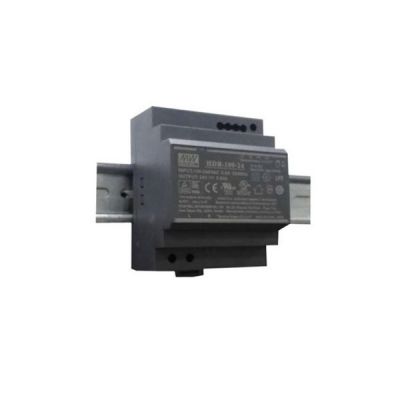

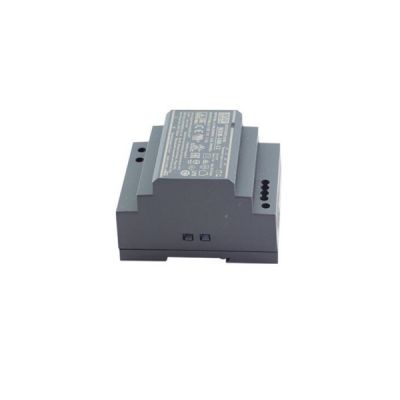

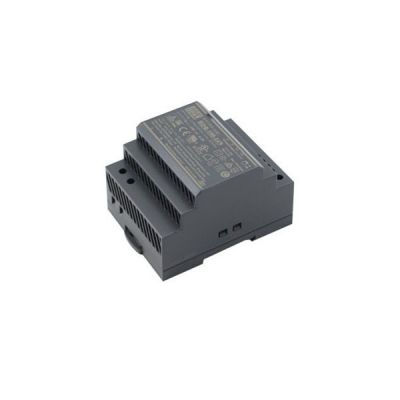

Meanwell HDR-100-24 is an economical ultra slim 100W DIN rail power supply with 24V3.83A0-3.83A92W150mVp-pPass LPS 24-25.5VNon LPS 21.6-29V. It could be installed on TS-35/7.5or TS-35/15 mounting rails, and its body is just 70mm (4SU) in width, saving lots of space inside the cabinets. Moreover, HDR-100-24 adopts the full range AC input from 85VAC to 264VAC (27 7VACoperational) and conforms to BS EN/EN61 000-3-2, the norm the European Union regulates for harmonic current. Moreover, HDR-100-24 is equipped with plastic housing, therefore, it could effectively prevent user from electric hazards. With working efficiency reaching up to 90%, HDR-100-24 could work at the ambient temperature between -30 ℃ and 70 ℃ under air convection. In light of its complete protection functions and relevant certificates for home automations and industrial control apparatus (IEC62368-1,UL508, UL62368-1, BS EN/EN61558-2-16), Meanwell HDR-100-24 is a very competitive power supply solution for household and industrial applications.

Meanwell HDR-100-24 Specifications

Meanwell HDR-100-24 Specifications

Model HDR-100-24
Output DC VOLTAGE 24V
RATED CURRENT 3.83A
CURRENT RANGE 0-3.83A
RATED POWER  92W
RIPPLE & NOISE (max.)  150mVp-p
VOLTAGE ADJ. RANGE Pass LPS 24-25.5V
Non LPS 21.6-29V
VOLTAGE TOLERANCE ±1.0%
LINE REGUL ATION ±1.0%
LOAD REGULATION ±1.0%
SETUP, RISE TIME 500ms, 6 0ms/230VAC 500ms, 6 0ms/115VAC at full load
HOLD UP TIME  30ms/230VAC 12ms/115VAC at full load
Input VOLTAGE RANGE 85 ~ 2 6 4 VAC (277VAC operational ) 120 ~ 37 0 VDC (390VDC operational )
FREQUENCY RANGE 47 - 63Hz
EFFICIENCY (Typ.)  90.00%
AC CURRENT (Typ.) 3A/115VAC 1.6A/230VAC
INRUSH CURRENT (Typ. ) COLD START 35A/115VAC 70A/230VAC
PROTECTION OVERLOAD HDR-100 : 102 ~ 110% rated output power ; HDR-100-xxN : 105 ~ 150% rated output power
Hiccup mode when output voltage <50%, recovers automatically after fault condition is removed
Constant current limiting within 50% ~ 100% rated output voltage, recovers automatically after fault condition is removed
OVER VOLTAGE 30-36V
Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP -30 ~ +70(Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03%/(0 ~ 50) RH non-condensing
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
OPERATING ALTITUDE 2000 meters
OVER VOLTAGE CATEGORY ;According to EN61558, EN50178,EN60664-1, EN62477-1;altitude up to 2000 meters
SAFETY &EMC SAFETY STANDARDS UL62368-1, UL508, TUV BS EN/EN61558-2-16, BS EN/EN61558-1, IEC62368-1, EAC TP TC 004, BSMI CNS14336-1
approved; Design refer to TUV BS EN/EN62368-1
WITHSTAND VOLTAGE I/P-O/P:4KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC IMMUNITY BS EN/EN55024, BS EN/EN61000-6-2, BS EN/EN61204-3
Others MTBF 856.5K hrs min. MIL-HDBK-217F (25)
DIMENSION 70*90*54 .5mm (W*H*D)
PACKING 0.27Kg; 48pcs/14Kg/1.06CUFT

Meanwell HDR-100-24 Features

l  Isolation classⅡ

l  3 years warranty

l  Over voltage category Ⅲ

l  LED indicator for power on

l  DC output voltage adjustable

l  DIN rail TS-35/7.5 or 15 mountable

l  Ultra slim design with 70mm(4SU) width

l  No load power consumption<0.3W

l  Pass LPS (Limited power source) for Blank type

l  Protections: Short circuit/Overload/Over voltage

l  Universal input 85~ 264VAC (277V AC operational)

l  Cooling by free air convection (working temperature: -30~+70℃)

Meanwell HDR-100-24 Feature

Meanwell HDR-100-24 Applications

l  Household control system

l  Building automation

l  Industrial control system

l  Factory automation

l  Electro-mechanical apparatus

Meanwell HDR-100-24 Applications

Meanwell HDR-100-24 Mechanical Diagram

Meanwell HDR-100-24 Mechanical DiagramMeanwell HDR-100 Series Mechanical Diagram
