HBG-100-24
33.06

HBG-100-24

$33.06

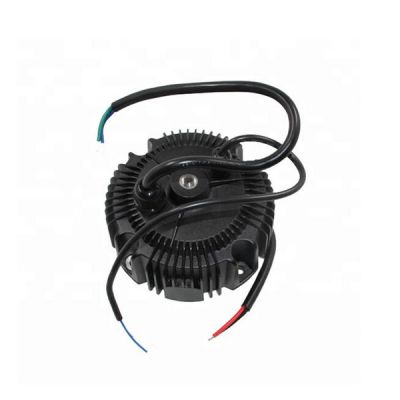

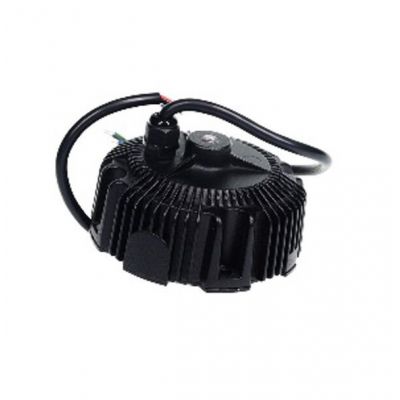

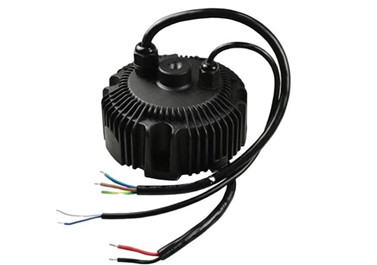

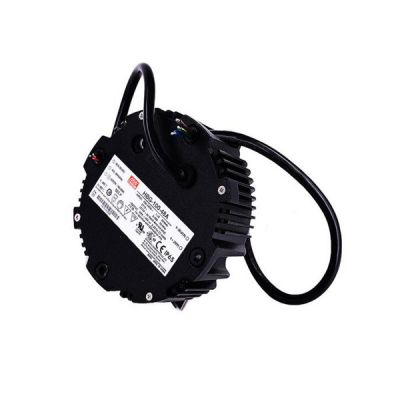

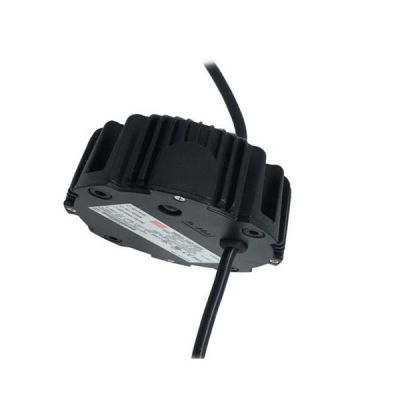

Meanwell 100W Constant Current Mode LED Driver with

4A96W14.4-24V25V2.4-4A±5.0%2000ms/115VAC500ms/230VAC

- +
Availability:In stock
SKU Meanwell HBG-100-24
Brand Meanwell
Details

Meanwell HBG-100-24 is a 100W AC/DC LED driver with 4A96W14.4-24V25V2.4-4A±5.0%2000ms/115VAC500ms/230VAC. The product features the circular shape design. And at the same time, it is able to operate from 90~305VAC and offers the constant current output with the rated voltage 24V. As the efficiency goes high up to 91.5%  and the fanless design, HBG-100-24 could work for -40℃~ +85℃ case temperature under free air convection. Additionally, the metal housing design and IP67/IP65 ingress protection level permit it to meet with both indoor and outdoor applications. Moreover, the unit is provided with various function options such as dimming methodologies. Due to its longevity, high efficiency, and excellent quality, Meanwell HBG-100-24 is an ideally suitable solution for the optimal design flexibility for LED lighting system.

Meanwell HBG-100-24 Meanwell HBG-100 price and specs ac dc led driver ycict

Meanwell HBG-100-24 Encoding

HBG Series Name
100 Rated Wattage
24 Rated Output Voltage (24/36/48/60v)
A Function Mode Option
Type IP Level Function Note
Blank IP67 Io fixed By request
A IP65 lo adjustable through built-in potentiometer In stock
IP67 3 in 1 dimming function(1~ 10Vdc, 10V PWM signal and resistance) In stock
AB IP65 lo adjustable through built-in potentiometer with 3 in 1 dimming function In stock
DA IP67 DALI control technology By request

Meanwell HBG-100-24 Specifications

Model HBG-100-24
OUTPUT RATED CURRENT 4A
RATED POWER 96W
CONSTANT CURRENT REGION 14.4-24V
OPEN CIRCUIT VOLTAGE(max.) 25V
CURRENT ADJ. RANGE Adjustable for A/AB-Type (via built-in potentiometer)
2.4-4A
CURRENT RIPPLE 5.0% max. at rated current
CURRENT TOLERANCE ±5.0%
SET UP TIME 2000ms / 115VAC 500ms / 230VAC
Input VOLTAGE RANGE 90 ~ 305VAC 127 ~ 431VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR PF>0.96/115VAC, PF>0.96/230VAC, PF>0.94/277VAC at full load
TOTAL HARMONIC DISTORTION THD< 20%(at load>=60%/115VC,230VAC;  at load>=75%/277VAC)
EFFICIENCY (Typ.)  90.50%
AC CURRENT 1.1A / 115VAC 0.5A / 230VAC 0.45A / 277VAC
INRUSH CURRENT (Typ. ) COLD START 60A(twidth=550μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER 4 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC
NO LOAD / STANDBY
POWER CONSUMPTION
Standby power consumption <0.5W for B/AB/DA-Type
Blank/A-Type please refer to Note. 7
LEAKAGE CURR ENT <0.75mA / 277VAC
PROTECTION OVER CURRENT 95 ~ 108%
Constant current limiting
OVER VOLTAGE 28-35V
Shut down o/p voltage re-power on to recovery
OVER TEMPERATURE Shut down o/p voltage re-power on to recovery
ENVIRONMENT WORKING TEMP Tcase=-40 ~ +85 (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP. Tcase=+85
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 60)
VIBRATION 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL8750(type”HL”),CSA C22.2 No.250.13-12, ENEC BS EN/EN61347-1,BS EN/EN61347-2-13 independent, BS EN/EN62384;
GB19510.1,GB19510.14, BIS IS15885(for 36A,48A,60A only), EAC TP TC 004,IP65 or IP67 approved
DALI STANDARDS Compliance to IEC62386-101, 102, 207 for DA-Type only
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (at load>=60%) ; BS EN/EN61000-3-3,
GB17743 and GB17625.1, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547,light industry level (surge immunity:Line-Earth:4KV, Line-Line:2KV), EAC TP TC 020
Others MTBF 2433.4K hrs min. Telcordia SR-332 (Bellcore) ;299.3K hrs min. MIL-HDBK-217F (25)
DIMENSION ψ130mm *66.5mm (D * H)
PACKING 1.18Kg; 12pcs/15.7Kg/1.43CUFT(Blank/A/B Type),1.89CUFT(E Type)

Meanwell HBG-100-24 Features

l  Typical lifetime> 50000 hours

l  5 years warranty

l  Constant Current mode output

l  Circular metal housing with class I design

l  Built-in active PFC function

l  IP67/IP65 rating for indoor or outdoor installations

l  Function options: output adjustable via potentiometer;3in 1 dimming; DALI

Meanwell HBG-100-24 Features Meanwell HBG-100-24 price and specs AC DC LED Driver power supply ycict

Meanwell HBG-100-24 Applications

l  LED bay lighting

l  LED stage lighting

l  LED spot lighting

l  Type HL" for use in Class l, Division 2 hazardous (Classified) location

Meanwell HBG-100-24 Mechanical Diagram

Meanwell HBG-100-24 Mechanical Diagram Meanwell HBG-100-24 PRICE AND SPECS AC DC LED DRIVER Meanwell HBG-100 YCICT

Meanwell HBG-100-24 Mechanical Diagram Meanwell HBG-100-24 PRICE AND SPECS AC DC LED DRIVER Meanwell HBG-100 YCICT
