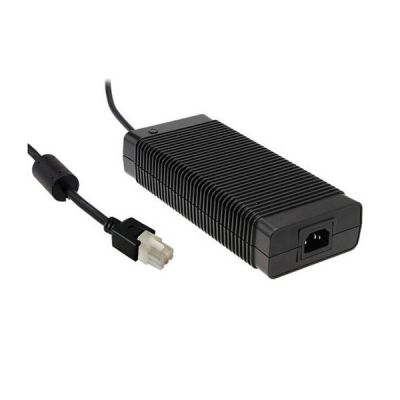

GST280A12-C6P
21.26

GST280A12-C6P

$21.26

Meanwell 280W AC-DC High Reliability Industrial Adaptor with 12V21A0-21A252W120mVp-p±5.0%±1.0%±5.0%

- +
Availability:In stock
SKU Meanwell GST280A12-C6P
Brand Meanwell
Details

Meanwell GST280A12 is a 280W single-output green adaptor with 12V21A0-21A252W120mVp-p. The product is a class I desktop style power unit (with FG), equipped with standard IEC320-C14 AC inlet. At the same time, it adopts the input range from 85VAC to 264VAC with output voltage 12VDC. Therefore, this can satisfy the demands for various types of consumer electronic devices. As the efficiency reaches high up to 94% and the extremely low no-load power consumption below 0.5W, GST280A12 is compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, Korea K-MEPS, EU ErP. Additionally, the supreme feature allows the adaptor to save the energy when it is either under operating mode or standby mode. What’s more, the model utilizes the 94V-0 flame retardant plastic case, which is certified for the international safety regulations. Due to its good quality, high reliability and long lifespan, Meanwell GST280A12 serves as a high performance power supply solution for various applications.

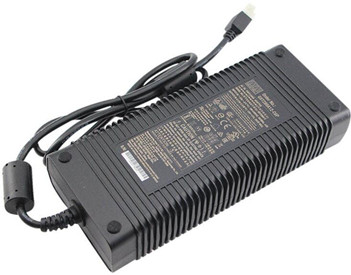

Meanwell GST280A12 Price and Specs 280W AC-DC High Reliability Industrial Adaptor fanless plastic case PFC 12V YCICT

Meanwell GST280A12-C6P Encoding

GST Series Name
280 Rated Wattage
A IEC320-C14 AC Inlet
12 Output Voltage
C6P DC connector Type C6P: Standard model, 6 pin connector
DC connector Type Other options availale by customer requested

Meanwell GST280A12-C6P Specifications

ORDER NO. GST280A12-C6P
OUTPUT SAFETY MODEL NO. GST280A12
DC VOLTAGE 12V
RATED CURRENT 21A
CURRENT RANGE 0-21A
RATED POWER (max) 252W
RIPPLE & NOISE (max.) 120mVp-p
VOLTAGE TOLERANCE ±5.0%
LINE REGULATION ±1.0%
LOAD REGULATION ±5.0%
HOLD UP TIME (Typ.) 2000ms, 20ms / 230VAC 2000ms, 20ms / 115VAC at full load
SETUP, RISE, HOLD UP TIME 16ms / 230VAC 16ms / 115VAC at full load
INPUT VOLTAGE RANGE 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF>0.95 / 230VAC PF>0.98 / 115VAC at full load
EFFICIENCY (Typ.) 89.50%
AC CURRENT 3A / 115VAC 1.5A / 230VAC
INRUSH CURRENT (max.) Cold start 95A / 115VAC 120A / 230VAC
LEAKAGE CURRENT(max.) 1.5mA / 240VAC
PROTECTION OVERLOAD 105 ~ 135% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 105 ~ 135% rated output voltage
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP. -30 ~ +70(Refer to "Derating Curve")
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85 , 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03% / (0~50 )
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS UL62368-1, CSA C22.2 No.62368-1, TUV BS EN/EN62368-1, BSMI CNS14336, CCC GB4943.1, PSE J60950-1,AS/NZS 60950.1,
BIS IS13252, KC K60950-1, EAC TP TC 004 approved; SIRIM MS IEC60950-1 (optional) approved
WITHSTAND VOLTAGE I/P-O/P: 3KVAC I/P-F/G: 2KVAC O/P-F/G: SHORT
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
Others MTBF 1625.8K hrs min. Telcordia SR-332 (Bellcore) ; 181.2K hrs min. MIL-HDBK-217F (25)
DIMENSION 220*95*46mm (L*W*H)
PACKING 1.25Kg; 12pcs/16Kg/1.09CUFT

Meanwell GST280A12-C6P Features

l  3 years warranty

l  Global certificates

l  Universal AC input/Full range

l  3 pole AC inlet IEC320-C14, Class I power unit

l  Built-in active PFC function

l  No load power consumption<0.5W

l  Energy efficiency Level VI

l  Comply with EISA 2007/DoE, NRCan, AU/NZ MEPS, EU ErP

l  Protections: Short circuit/Overload/Over voltage/Over temperature

l  Fanless design with -30~+70℃ working temperature

l  Fully enclosed plastic case

l  LED indicator for power on

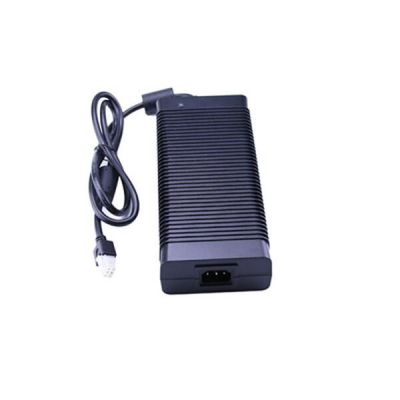

Meanwell GST280A12 Price and Specs 280W AC-DC High Reliability Industrial Adaptor fanless plastic case classⅠPFC YCICT

Meanwell GST280A12-C6P Applications

l  Office facilities

l  Industrial equipment

l  Telecommunication devices

l  Consumer electronic devices

Meanwell GST280A12 Price and Specs 280W AC-DC High Reliability Industrial Adaptor fanless plastic case classⅠ12V YCICT

Meanwell GST280A12-C6P Mechanical Diagram

Meanwell GST280A12 Price and Datasheet 280W AC-DC High Reliability Industrial Adaptor fanless plastic case classⅠYCICT

Meanwell GST280A12 Price and Datasheet 280W AC-DC High Reliability Industrial Adaptor fanless plastic case PFC YCICT
