GST25U05-P1J
11.02

GST25U05-P1J

$11.02

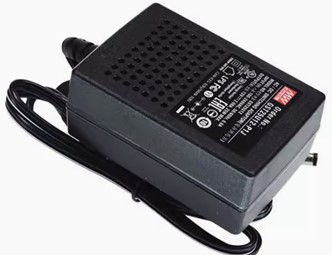

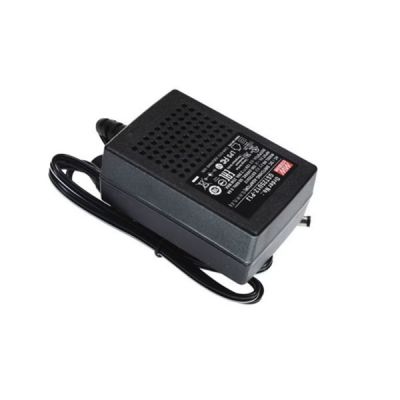

Meanwell 25W AC-DC Reliable Green Industrial Adaptor with 5V4.0A0-4.0A20W80mVp-p±5.0%±1.0%±5.0%

- +
Availability:In stock
SKU Meanwell GST25U05-P1J
Brand Meanwell
Details

Meanwell GST25U05 is a 25W AC-DC Green Industrial Adaptor with 5V4.0A0-4.0A20W80mVp-p. The model outstands high reliability, wall-mounted style and single-output. It is a class II power unit (no FG), with a 2- Pin standard USA AC power plug. GST25U05 adopts input range from 85VAC to 264VAC with output voltage 5VDC. So that it could satisfy the demands for various types of consumer electronic devices. As the efficiency reaches high up to 89% and extremely low no-load power consumption below 0.075W, Meanwell GST25U05 is compliant with USA EISA 2007/DoE and Canada NRCan. Moreover, the supreme feature allows the adaptor to save energy when it is either under operating mode or standby mode. The unit utilizes the 94V-0 flame retardant plastic case with double insulation, which could effectively prevent electrical shock. GST25U05 is also certified for the international safety regulations. Due to its high safety, high reliability and high quality, Meanwell GST25U05 serves as a high performance power supply solution for various types of consumer electronic devices.

Meanwell GST25U05 Price and Specs 25W AC-DC Industrial Green Adaptor ClassⅡ Level VI EISA 2007/DoE NRCan Class II YCICT

Meanwell GST25U05-P1J Encoding

GST Series Name
25 Rated Wattage
U US 2 pin AC Plug
5 Output Voltage
P1J DC plug type Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type
Other Options available by customer requested

Meanwell GST25U05-P1J Specifications

ORDER NO. GST25U05-P1J
OUTPUT SAFETY MODEL NO. GST25U05
DC VOLTAGE 5V
RATED CURRENT 4.0A
CURRENT RANGE 0-4.0A
RATED POWER 20W
RIPPLE & NOISE (max.) 80mVp-p
VOLTAGE TOLERANCE ±5.0%
LINE REGULATION ±1.0%
LOAD REGULATION ±5.0%
SETUP, RISE, HOLD UP TIME 1000ms, 30ms, 50ms/230VAC 1500ms, 30ms, 15ms/115VAC at full load
INPUT VOLTAGE RANGE 85 ~ 264VAC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 81.50%
AC CURRENT 0.6A / 115VAC 0.35A / 230VAC
INRUSH CURRENT (max.) Cold start 35A / 115VAC 65A / 230VAC
LEAKAGE CURRENT(max.) 0.25mA / 240VAC
PROTECTION OVERLOAD 110 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 110 ~ 140% rated output voltage
Protection type : Clamp by zener diode
ENVIRONMENT WORKING TEMP. -30 ~ +70(Refer to "Derating Curve")
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03% /(0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS UL62368-1, CSA C22.2 No. 62368-1, BSMI CNS14336-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:4242VDC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
Others Life 3879.7K hrs min. Telcordia SR-332 (Bellcore) ; 674.6K hrs min. MIL-HDBK-217F (25)
DIMENSION 79*54*33mm (L*W*H)
PACKING 198g; 60pcs/12.9Kg/1.15CUFT

Meanwell GST25U05-P1J Features

l  Pass LPS

l  Global certificates

l  Universal AC input/Full range

l  2 pole USA plug, Class II power unit

l  No load power consumption< 0.075W

l  Energy efficiency Level VI

l  Comply with EISA 2007/DoE and NRCan

l  Protections: Short circuit/Overload/Over voltage

l  Fully enclosed plastic case

l  -30℃~+70℃ wide range working temperature

l  LED indicator for power on

l  Various DC plug quick adapter accessory available

l  3 years warranty

Meanwell GST25U05 Price and Specs 25W AC-DC Industrial Green Adaptor ClassⅡ Level VI EISA 2007/DoE NRCan 5V 4A YCICT

Meanwell GST25U05-P1J Applications

l  Office facilities

l  Industrial equipment

l  Telecommunication devices

l  Consumer electronic devices

Meanwell GST25U05 Price and Specs 25W AC-DC Industrial Green Adaptor ClassⅡ Level VI EISA 2007/DoE and NRCan 5V 4A YCICT

Meanwell GST25U05-P1J Mechanical Diagram

Meanwell GST25U05 Price and Datasheet 25W AC-DC Industrial Green Adaptor ClassⅡ Level VI EISA 2007/DoE NRCan 4A YCICT
