GST220A12-R7B
17.06

GST220A12-R7B

$17.06

Meanwell 220WAC-DC Reliable Green Industrial Adaptor with 12V15A0-15A180W80mVp-p±5.0%±1.0%±5.0%

- +
Availability:In stock
SKU Meanwell GST220A12-R7B
Brand Meanwell
Details

Meanwell GST220A12 is a highly reliable 220W green adaptor with 12V15A0-15A180W80mVp-p. The model features desktop style and single-output. It is a class I power unit (with FG), equipped with standard IEC320-C14 AC inlet. At the same time, GST220A12 adopts the input range from 85VAC to 264VAC with output voltages 12VDC. Therefore, this can satisfy the demands for various types of consumer electronic devices. As the efficiency reaches high up to 94.5% and extremely low no-load power consumption below 0.15W, Meanwell GST220A12 is compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, Korea K-MEPS, EU ErP and Code of Conduct (CoC) Version 5. Additionally, the supreme feature allows the adaptor to save the energy when it is either under operating mode or standby mode. What’s more, the item utilizes the 94V-0 flame retardant plastic case, which is certified for the international safety regulations. Due to its good quality, high reliability and long lifespan, Meanwell GST220A12 serves as a high performance power supply solution for various applications.

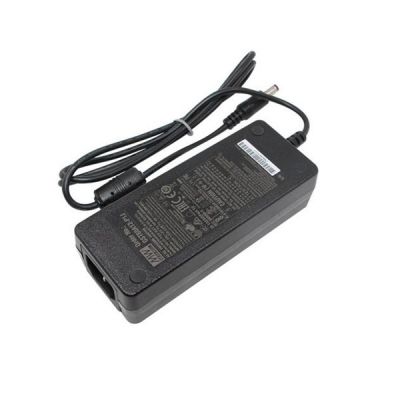

Meanwell GST220A12 Price and Specs 220W AC-DC Reliable Green Industrial Adaptor no fan plastic case with PFC YCICT

Meanwell GST220A12-R7B Encoding

GST Series Name
220 Rated Wattage
A IEC320-C14 AC Inlet
12 Output Voltage
R7B DC plug type R7B: Standard model, Power DIN 4Pin with lock type
DC plug type Other options available by customer requested

Meanwell GST220A12-R7B Specifications

ORDER NO. GST220A12-R7B
OUTPUT SAFETY MODEL NO. GST220A12
DC VOLTAGE 12V
RATED CURRENT 15A
CURRENT RANGE 0-15A
RATED POWER (max) 180W
RIPPLE & NOISE (max.) 80mVp-p
VOLTAGE TOLERANCE ±5.0%
LINE REGULATION ±1.0%
LOAD REGULATION ±5.0%
HOLD UP TIME (Typ.) 2000ms, 50ms / 230VAC 2000ms, 50ms / 115VAC at full load
SETUP, RISE, HOLD UP TIME 20ms / 230VAC 20ms / 115VAC at full load
INPUT VOLTAGE RANGE 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF>0.91 / 230VAC PF>0.98 / 115VAC at full load
EFFICIENCY (Typ.) 90.00%
AC CURRENT 4A / 115VAC 2A / 230VAC
INRUSH CURRENT (max.) Cold start 95A / 115VAC 120A / 230VAC
LEAKAGE CURRENT(max.) 0.75mA / 240VAC
PROTECTION OVERLOAD 105 ~ 135% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 105 ~ 135% rated output voltage
Protection type : Hiccup mode at 10% load
OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT WORKING TEMP. -30 ~ +70(Refer to "Derating Curve")
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85 , 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03% / (0~50 )
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS UL62368-1, CSA C22.2 No.62368-1, TUV BS EN/EN62368-1, BSMI CNS14336, CCC GB4943.1, PSE J62368-1,AS/NZS 60950.1 ,
BIS IS13252, KC K60950-1, EAC TP TC 004 approved; SIRIM MS IEC60950-1 (optional) approved
(UL62368-1, CSA C22.2 No.62368-1, TUV EN62368-1, BSMI CNS14336, CCC GB4943.1, PSE J62368-1,AS/NZS 60950.1
for GST220A36-R7B)
WITHSTAND VOLTAGE I/P-O/P: 3KVAC I/P-FG: 2KVAC O/P-FG:SHORT
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC IMMUNITY BS EN/EN55035
Others MTBF 2006.1K hrs min. Telcordia SR-332 (Bellcore) ; 209.4K hrs min. MIL-HDBK-217F (25)
DIMENSION 210*85*46mm (L*W*H)
PACKING 1.1Kg; 12pcs/14.2Kg/0.81CUFT

Meanwell GST220A12-R7B Features

l  3 years warranty

l  Global certificates

l  Universal AC input/Full range

l  3 pole AC inlet lEC320-C14, Class I power unit

l  Built-in active PFC function

l  No load power consumption<0.15W

l  Energy efficiency Level VI

l  Comply with EISA 2007/DoE, NRCan, AU/NZ MEPS, EU ErP and CoC Version 5

l  Protections: Short circuit/Overload/Over voltage/Over temperature

l  Fanless design with -30℃~+70℃ working temperature

l  Fully enclosed plastic case

l  LED indicator for power on

l  Various DC plug quick adapter accessory available

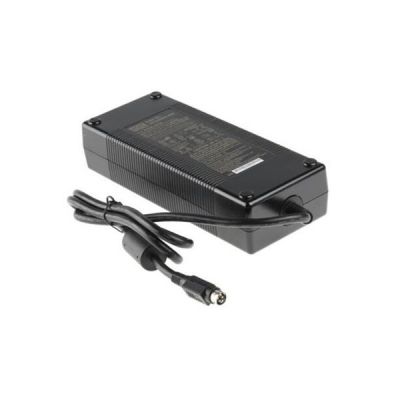

Meanwell GST220A12 Price and Specs 220W AC-DC Reliable Green Industrial Adaptor no fan plastic case classⅠ12V YCICT

Meanwell GST220A12-R7B Applications

l  Office facilities

l  Industrial equipment

l  Telecommunication devices

l  Consumer electronic devices

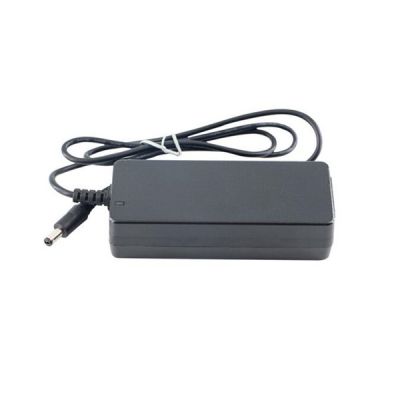

Meanwell GST220A12 Price and Specs 220W AC-DC Reliable Green Industrial Adaptor no fan plastic case classⅠwith PFC YCICT

Meanwell GST220A12-R7B Mechanical Diagram

Meanwell GST220A12 Price and Datasheet 220W AC-DC Reliable Green Industrial Adaptor no fan plastic case classⅠPFC YCICT
