GST120A12-R7B
12.07

GST120A12-R7B

$12.07

Meanwell 120W AC-DC Reliable Green Industrial Adaptor with 12V8.5A0-8.5A102W120mVp-p±5.0%±1.0%±5.0%

- +
Availability:In stock
SKU Meanwell GST120A12-R7B
Brand Meanwell
Details

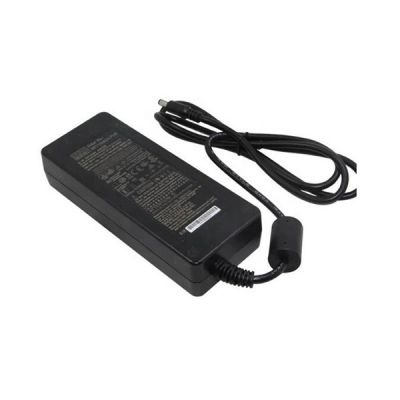

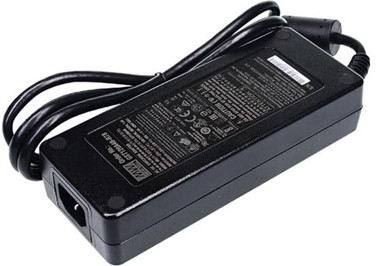

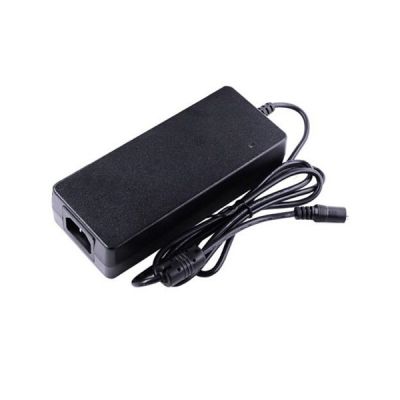

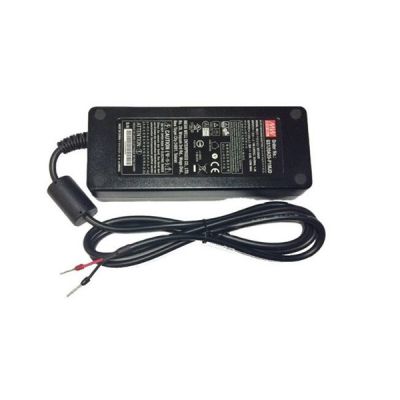

Meanwell GST120A12 is a 120W desktop style single output adaptor with 12V8.5A0-8.5A102W120mVp-p. The model is a highly reliable class I power unit (with FG) with standard IEC320-C14 AC inlet. GST120A12 adopts the input ranging from 85VAC to 264VAC, and it supplies with output voltages 12VDC. Therefore, this could satisfy the demands for various types of consumer electronic devices. Since the efficiency reaches high up to 91% and extremely low no-load power consumption below 0.15W, Meanwell GST 120A12 complies with USA EISA 2007/DoE, Canada NRCan, Australia and New Zeal and MEPS, Korea K MEPS, EU ErP and Code of Conduct (CoC) Version 5. Additionally, the supreme feature allows the adaptor to save energy when it is either under operating mode or standby mode. The product also utilizes the 94V-0 flame retardant plastic case, which is certified for the international safety regulations. Due to its good quality, high reliability and long lifespan, Meanwell GST120A12 serves as a high performance power supply solution for various applications.

Meanwell GST120A12 Price and Specs 120W AC-DC Reliable Green Industrial Adaptor 3 pole AC inlet 12V 8.5A YCICT

Meanwell GST120A12-R7B Encoding

GST Series Name
120 Rated Wattage
A IEC320-C14 AC Inlet
12 Output Voltage
R7B DC plug type R7B: Plug for 12~48V ,Power DIN 4 Pin with lock type (standard)
DC plug type Р1М: Рlug fоr 20~48V оnlу,2.5 ф х5. 5 ф х11mm,С+,tunіng fоrk tуре (ѕtаndаrd)
DC plug type Other options available by customer requested

Meanwell GST120A12-R7B Specifications

ORDER NO. GST120A12-R7B
OUTPUT SAFETY MODEL NO. GST120A12
DC VOLTAGE 12V
RATED CURRENT 8.5A
CURRENT RANGE 0-8.5A
RATED POWER (max) 102W
RIPPLE & NOISE (max.) 120mVp-p
VOLTAGE TOLERANCE ±5.0%
LINE REGULATION ±1.0%
LOAD REGULATION ±5.0%
HOLD UP TIME (Typ.) 20ms / 230VAC 20ms / 115VAC at full load
SETUP, RISE, HOLD UP TIME 1000ms, 50ms / 230VAC 1000ms, 50ms / 115VAC at full load
INPUT VOLTAGE RANGE 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF>0.93 / 230VAC PF>0.97 / 115VAC at full load
EFFICIENCY (Typ.) R7B 88.50%
EFFICIENCY (Typ.) P1M -----
AC CURRENT 1.4A / 115VAC 0.7A / 230VAC
INRUSH CURRENT (max.) Cold start 35 / 115AC 70A / 230VAC
LEAKAGE CURRENT(max.) 0.75mA / 240VAC
PROTECTION OVERLOAD 105 ~ 160% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 105 ~ 135% rated output voltage
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP. -30 ~ +70(Refer to "Derating Curve")
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03% /(0~45)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS UL62368-1, CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, BSMI CNS14336, CCC GB4943.1, PSE J62368-1,AS/NZS 60950.1 ,
BIS IS13252, KC K60950-1, EAC TP TC 004 approved; SIRIM MS IEC60950-1 (optional) approved
WITHSTAND VOLTAGE I/P-O/P: 3KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC IMMUNITY BS EN/EN55035
Others MTBF 2250.5K hrs min. Telcordia SR-332 (Bellcore) ; 368.5K hrs min. MIL-HDBK-217F (25)
DIMENSION 167*67*35mm (L*W*H)
PACKING 0.62Kg; 20pcs/13.4Kg/0.89CUFT

Meanwell GST120A12-R7B Features

l  Global certificates

l  Universal AC input/Full range

l  3 pole AC inlet IEC320-C14, Class I power unit

l  Built-in active PFC function

l  No load power consumption<0.15W

l  Energy efficiency Level VI

l  Protections: Short circuit/Overload/Over voltage/Over temperature

l  Fully enclosed plastic case

l  -30℃~+70℃ wide range working temperature

l  LED indicator for power on

l  Various DC plug quick adapter accessory available

l  3 years warranty

l  Comply with EISA 2007/DoE, NRCan, Korea K-MEPS, AU/NZ MEPS, EU ErP and CoC Version 5

Meanwell GST120A Price and Specs 120W AC-DC Reliable Green Industrial Adaptor 3 pole AC inlet power unit YCICT

Meanwell GST120A12-R7B Applications

l  Office facilities

l  Industrial equipment

l  Consumer electronic devices

l  Telecommunication devices

Meanwell GST120A Price and Specs 120W AC-DC Reliable Green Industrial Adaptor 3 pole AC inlet power unit PFC YCICT

Meanwell GST120A12-R7B Mechanical Diagram

Meanwell GST120A Price and Datasheet 120W AC-DC Reliable Green Industrial Adaptor 3 pole AC inlet power unit YCICT
