GSM60E24-P1J
13.49

GSM60E24-P1J

$13.49

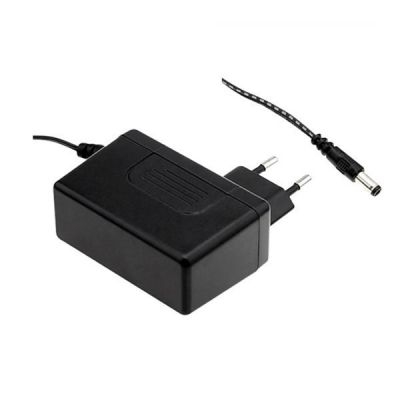

Meanwell 60W AC-DC Reliable Green Slim Wall-mounted Medical Adaptor with 24V2.5A0-2.5A60W120mVp-p±3.0%±1.0%±2.0%

- +
Availability:In stock
SKU Meanwell GSM60E24-P1J
Brand Meanwell
Details

Meanwell GSM60E24 is a 60W ultra slim green medical adaptor with 24V2.5A0-2.5A60W120mVp-p. The item features single-output, wall-mounted, compact and convenient for carry. Iti is a classⅡpower unit (no FG), equipped with standard 2-Pin European plug. GSM60E24 accepts the input range from 80VAC to 264VAC with output voltage 24VDC. So that it could satisfy the demands for various types of medical electronic devices. The circuitry design meets the international medical standards (2*MOPP), having an ultra-low leakage current (<100μA), and fits the medical devices in direct electrical contact with the patients. What's more, the work efficiency reaches high up to 90% and extremely low no-load power consumption below 0.15W. It is compliant with EU ErP and meet CoC version5 (5~9V for Level V). The supreme feature also allows the adaptor to save energy when it is under either operating mode or standby mode. The unit is approved for international safety regulations, and adopts the 94V-0 flame retardant plastic case, which could effectively prevent users from electric hazards. Due to its high safety, high quality and high efficiency, Meanwell GSM60E24 serves as an ideal power supply solution for various types of medical electronic devices.

Meanwell GSM60E24 Price and Specs 60W AC-DC Slim Medical Adaptor GSM60E05 07 09 12 15 18 24 48 Euro type 24v ycict

Meanwell GSM60E24-P1J Encoding

GSM Series Name
60 Rated Wattage
E European 2 pin AC Plug
24 Output Voltage
Р1J- DC plug type Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type
Other Options available by customer requested

Meanwell GSM60E24-P1J Specifications

ORDER NO. GSM60E24-P1J
OUTPUT SAFETY MODEL NO. GSM60E24
DC VOLTAGE 24V
RATED CURRENT 2.5A
CURRENT RANGE 0-2.5A
RATED POWER 60W
RIPPLE & NOISE (max.) 120mVp-p
VOLTAGE TOLERANCE ±3.0%
LINE REGULATION ±1.0%
LOAD REGULATION ±2.0%
SETUP, RISE, HOLD UP TIME 1000ms, 100ms, 10ms/230VAC 1000ms, 100ms, 10ms/115VAC at full load
INPUT VOLTAGE RANGE 80 ~ 264VAC 113 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 88.00%
AC CURRENT 1.5A / 115VAC 0.8A / 230VAC
INRUSH CURRENT (max.) Cold start 50A / 115VAC 100A / 230VAC
LEAKAGE CURRENT(max.) Touch current < 100μA/264VAC
PROTECTION OVERLOAD 105 ~ 160% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 110 ~ 140% rated output voltage
Protection type : Clamp by zener diode, output short
ENVIRONMENT WORKING TEMP. -30 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -30 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03% /(0~40)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS TUV BS EN/EN60601-1, BS EN/EN60601-1-11, EAC TP TC 004 approved
ISOLATION LEVEL Primary-Secondary: 2xMOPP
WITHSTAND VOLTAGE I/P-O/P:5656VDC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC IMMUNITY BS EN/EN55011, BS EN/EN60601-1-2
Others MTBF 400Khrs min. MIL-HDBK-217F(25)
DIMENSION 75.5*32*47.5mm (L*W*H)
PACKING 200g ; 60pcs / 13kg / CARTON
LIFE 3 years : 100% load 40, 8hours / day

Meanwell GSM60E24-P1J Features

l  Ultra slim, compact size

l  3 years warranty

l  Extremely Low leakage current

l  2 pole EURO plug, ClassⅡpower unit

l  No load power consumption <0.15W

l  Energy efficiency Level VI (except 5~9V for Level V)

l  -30~+70℃ wide range working temperature

l  Protections: Short circuit/Overload/Over voltage

l  Fully enclosed plastic case

l  Various DC plug quick adapter accessory available

l  Medical safety approved (2XMOPP) according to BS EN/EN606O1- 1/BS EN/EN606O1-1-1 1

Meanwell GSM60E Price and Specs 60W AC-DC Slim Adaptor YCICT

Meanwell GSM60E24-P1J Applications

l  Blood glucose meter

l  Blood pressure meter

l  Nebulizer

l  Inhaler

l  Portable medical device

l  Sleep apnea devices

Meanwell GSM60E Price and Specs 60W AC-DC Slim Medical Adaptor GSM60E05 07 09 12 15 18 24 48 Euro type ycict

Meanwell GSM60E24-P1J Mechanical Diagram

Meanwell GSM60E Price and Specs 60W AC-DC Slim Adaptor GSM60E05 07 09 12 15 18 24 48 Euro type ycict
