GSM60E05-P1J
13.04
Details

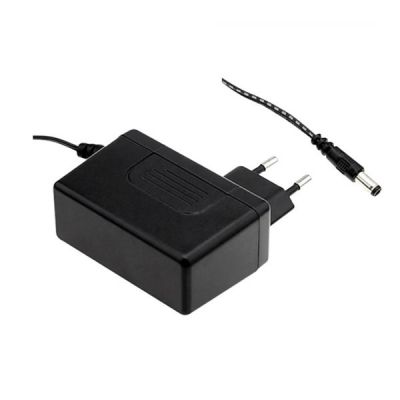

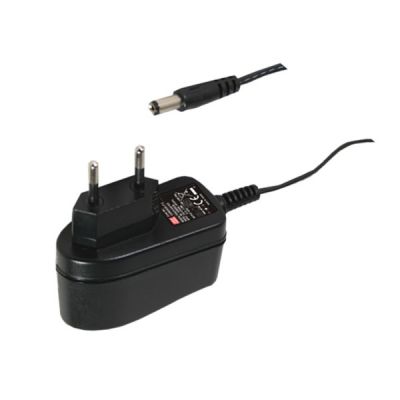

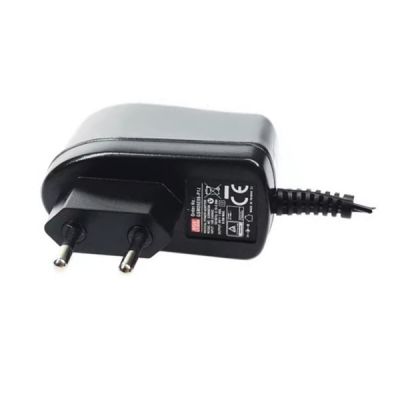

Meanwell GSM60E05 is a 60W ultra slim green medical adaptor with 5V6A0-6A30W100mVp-p. The model features single-output, wall-mounted, compact and convenient for carry. Iti is a classⅡpower unit (no FG) with the standard 2-Pin European plug. At the same time, GSM60E05 accepts the input range from 80VAC to 264VAC with output voltage 5VDC. So that it can satisfy the demands for various types of medical electronic devices. The circuitry design meets the international medical standards (2*MOPP), having an ultra-low leakage current (<100μA), fitting the medical devices in direct electrical contact with the patients. Additionally, the work efficiency reaches high up to 90% and extremely low no-load power consumption below 0.15W. GSM60E05 is compliant with EU ErP and meet CoC version5 (5~9V for Level V). The supreme feature allows the adaptor to save energy when it is under either operating mode or standby mode. Moreover, the item is approved for international safety regulations. It adopts the 94V-0 flame retardant plastic case, which can effectively prevent users from electric hazards. Due to its high safety, high quality and high efficiency, Meanwell GSM60E05 serves as an ideal power supply solution for various types of medical electronic devices.
Meanwell GSM60E05-P1J Encoding
| GSM | Series Name |
| 60 | Rated Wattage |
| E | European 2 pin AC Plug |
| 5 | Output Voltage |
| Р1J- DC plug type | Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type |
| Other Options available by customer requested |
Meanwell GSM60E05-P1J Specifications
| ORDER NO. | GSM60E05-P1J | |
| OUTPUT | SAFETY MODEL NO. | GSM60E05 |
| DC VOLTAGE | 5V | |
| RATED CURRENT | 6A | |
| CURRENT RANGE | 0-6A | |
| RATED POWER | 30W | |
| RIPPLE & NOISE (max.) | 100mVp-p | |
| VOLTAGE TOLERANCE | ±5.0% | |
| LINE REGULATION | ±1.0% | |
| LOAD REGULATION | ±5.0% | |
| SETUP, RISE, HOLD UP TIME | 1000ms, 100ms, 10ms/230VAC 1000ms, 100ms, 10ms/115VAC at full load | |
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC 113 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 80.00% | |
| AC CURRENT | 1.5A / 115VAC 0.8A / 230VAC | |
| INRUSH CURRENT (max.) | Cold start 50A / 115VAC 100A / 230VAC | |
| LEAKAGE CURRENT(max.) | Touch current < 100μA/264VAC | |
| PROTECTION | OVERLOAD | 105 ~ 160% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 110 ~ 140% rated output voltage | |
| Protection type : Clamp by zener diode, output short | ||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -30 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03% /℃(0~40℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | TUV BS EN/EN60601-1, BS EN/EN60601-1-11, EAC TP TC 004 approved |
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP | |
| WITHSTAND VOLTAGE | I/P-O/P:5656VDC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN55011, BS EN/EN60601-1-2 | |
| Others | MTBF | 400Khrs min. MIL-HDBK-217F(25℃) |
| DIMENSION | 75.5*32*47.5mm (L*W*H) | |
| PACKING | 200g ; 60pcs / 13kg / CARTON | |
| LIFE | 3 years : 100% load 40℃, 8hours / day | |
Meanwell GSM60E05-P1J Features
l Ultra slim, compact size
l Extremely Low leakage current
l 2 pole EURO plug, ClassⅡpower unit
l No load power consumption <0.15W
l Energy efficiency Level VI (except 5~9V for Level V)
l -30~+70℃ wide range working temperature
l Protections: Short circuit/Overload/Over voltage
l Fully enclosed plastic case
l Various DC plug quick adapter accessory available
l 3 years warranty
l Medical safety approved (2XMOPP) according to BS EN/EN606O1- 1/BS EN/EN606O1-1-1 1
Meanwell GSM60E05-P1J Applications
l Blood glucose meter
l Blood pressure meter
l Nebulizer
l Inhaler
l Portable medical device
l Sleep apnea devices
Meanwell GSM60E05-P1J Mechanical Diagram
